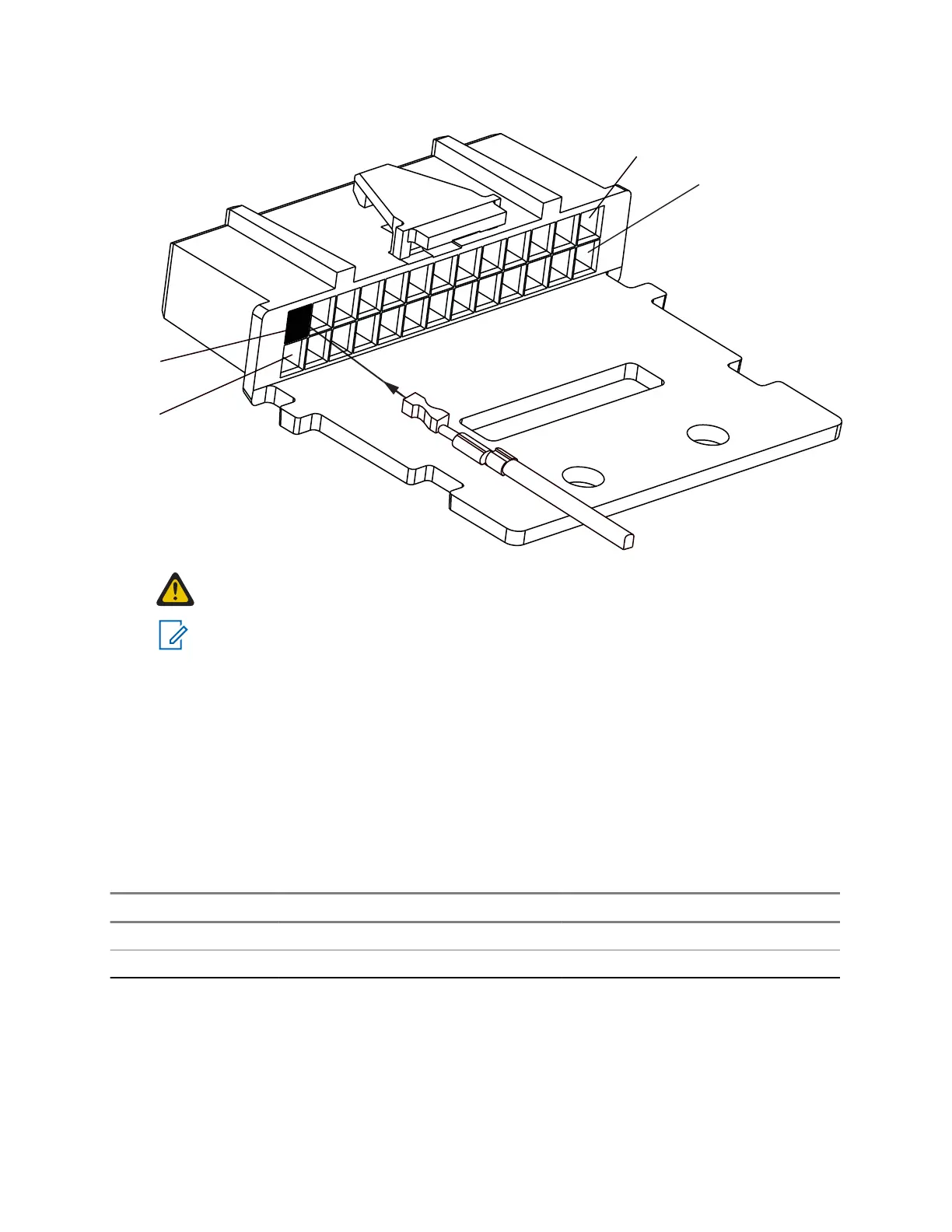

Figure 3: Accessory Plug
2
5
2
6
1
2
CAUTION: If the ignition line is not used, it MUST be grounded. Interference can cause
radio to hang.
NOTICE:
The terminal accepts a 12 volt or 24 volt input for the Ignition Sense line. For 24 volt
installations convert the main supply from 24 to 12 volts. For information see General
Guidelines for Radio Installation on page 39. Motorola recommends a suitable range of
DC/DC converters available from Alfatronix LTD UK. Some models are also available
through Motorola Radio Aftermarket and Accessory Division (AAD), check with your
Account Manager.
The ignition sense cable kit contains a thin cable and a fuse holder.
3.4.1
Ignition Sense Cables
Table 43: Ignition Sense Cables
Number Description Rating
PMKN4120_ Ignition Sense Cable with fuse 4 A Ignition Sense Cable, Length: 3 m
6580283E02 Fuse 4 A for Ignition Sense Cable
68015000181-LB
Chapter 3: Vehicle Preparation
44 Send Feedback
