5.8.11
Cables to Provision AIE/E2E Keys
The following cables are used when provisioning the radio with encryption keys: PMKN4104_ - Active
Data Cable to provision the radio with Air interface encryption keys, and PMKN4108_ - KVL cable to
provision the radio with E2E keys.
The PMKN4104_ Active Data Cable provides a 5-wire RS232 interface (for example, RxD, TxD, CTS,
RTS, DTR) between a computer and a mobile radio. The cable has to be connected to the 26-pin
Accessory Connector on the rear side of the radio and into the 9-pin connector of a Data Device
(for example, PC, Laptop, console). The PMKN4104_ Active Data Cable is not repairable. Order a
replacement cable as necessary: Length: 2.0 m (6.56 ft).

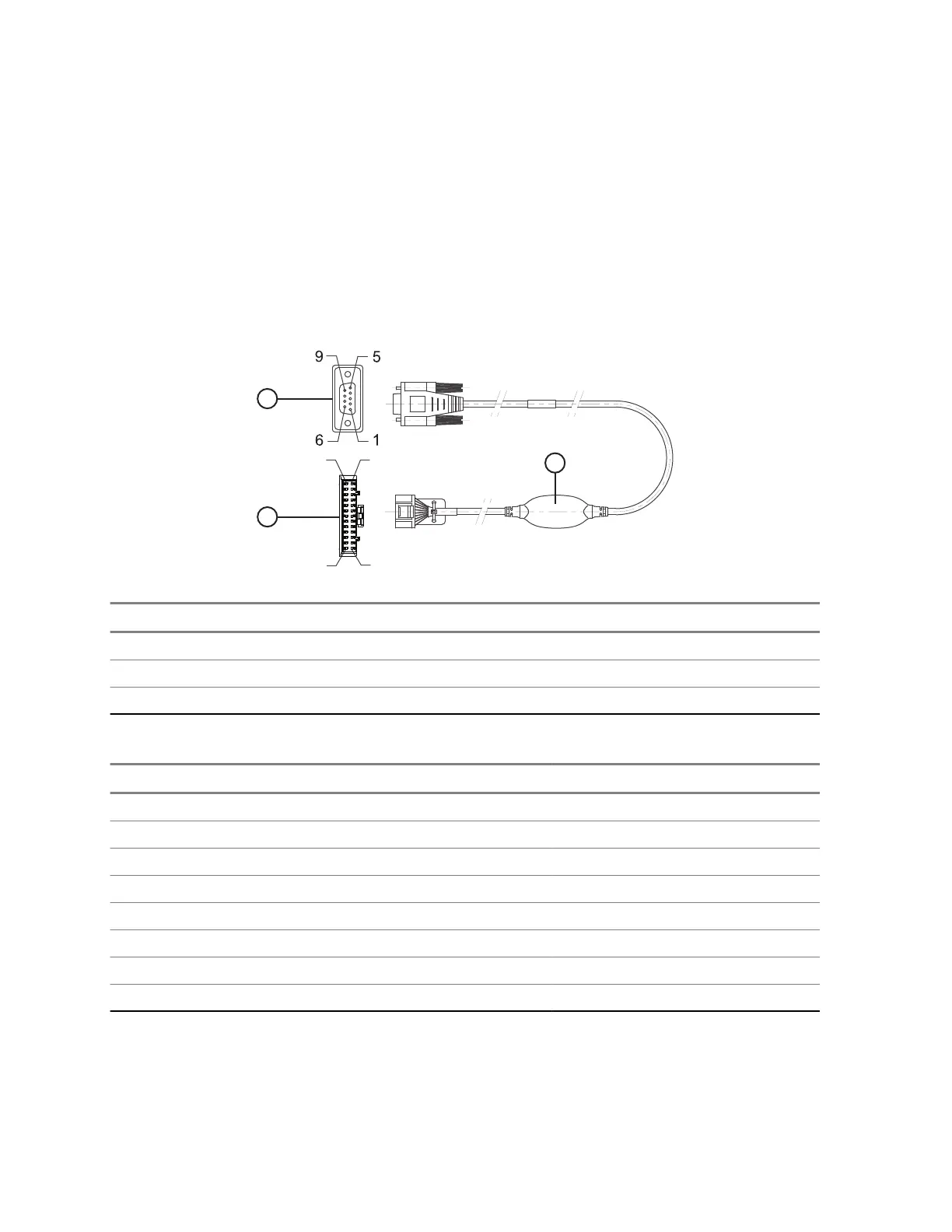

Figure 76: Active Data Cable PMKN4104_
Number Description
1 To the computer
2 To Radio Accessory Connector
3 Radio Interface Box
Table 66: Pin Assignment - Active Data Cable PMKN4104_
26-Pin Connector Function Colour
17 Ext PTT (+5V) Black
8 GND_MAIN Yellow
7 SWB+ Brown
18 DTR Red
24 CTS White
21 RTS Blue
20 TxD Gray
22 RxD Tan
68015000181-LB
Chapter 5: Connectors and PIN Assignment
118 Send Feedback
