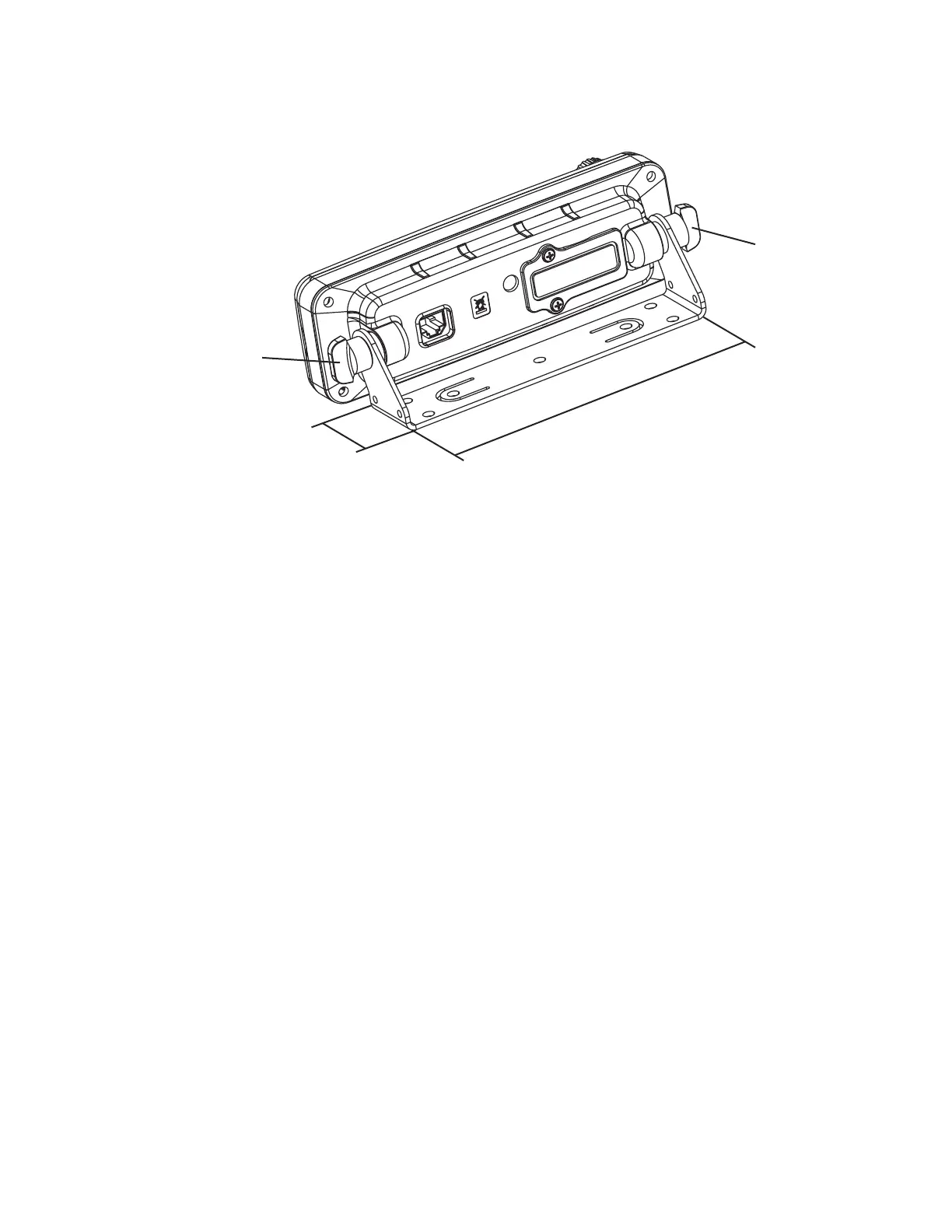

Figure 8: Remote Mount Enhanced Control Head Installation with Remote Mount
Trunnion
155+/-0,3mm
31mm
1
2
2
1 and 2 – Remote Mount Trunnion Kit (PMLN4912)
4.3.2
Installing the Remote Mount Enhanced Control Head in a DIN Mount
Bracket
When and where to use: Follow these steps to install the Remote Mount Enhanced Control Head in a
DIN Mount Bracket.
Procedure:
1 Slide the Remote Mount Enhanced Control Head onto the DIN Mount Bracket until it snaps into
place.
2 Tighten the screws at both sides of the DIN Mount Bracket.
68015000181-LB
Chapter 4: Radio Installation
Send Feedback 51
