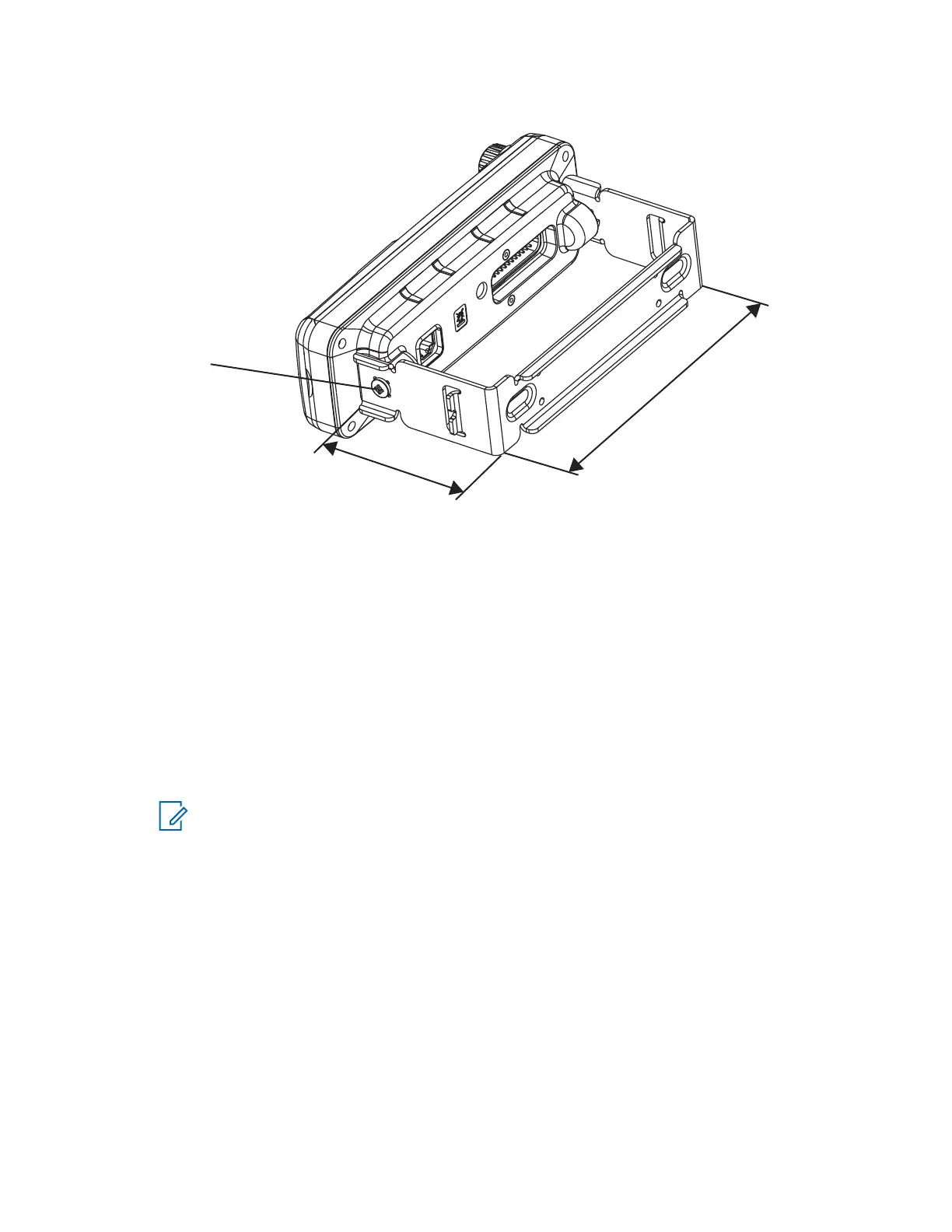

Figure 9: Remote Mount Enhanced Control Head Installation with DIN Mount Bracket
1 and 2 – DIN Mount Bracket Kit (PMLN5093)
4.3.3
Inserting the Remote Mount Enhanced Control Head with the DIN
Mount Bracket into the DIN Frame
When and where to use: Follow these steps to insert the remote mount enhanced control head with
the DIN mount bracket.
Procedure:
1 Insert the mounting frame into the DIN Mount Bracket and retain it by bending back the relevant
fixing tabs.
2 Use all six tabs, if necessary, to hold it in place.
NOTICE:
The tabs are easily bent back by twisting a large flat-bladed screwdriver into the slot
behind the tabs.
For a more secure installation, the top and rear of the frame should also be secured with
screws.
The demount tool can be used as an aid to mounting as well as demounting.
68015000181-LB
Chapter 4: Radio Installation
