Movincool CMW30 - Characteristics

Operation Section
10
2.3 Characteristics
• Value range for each EWT shown in the graphs is based on the compressor speed.
• EWT shown in the graphs is an abbreviation of "Entering Water Temperature".

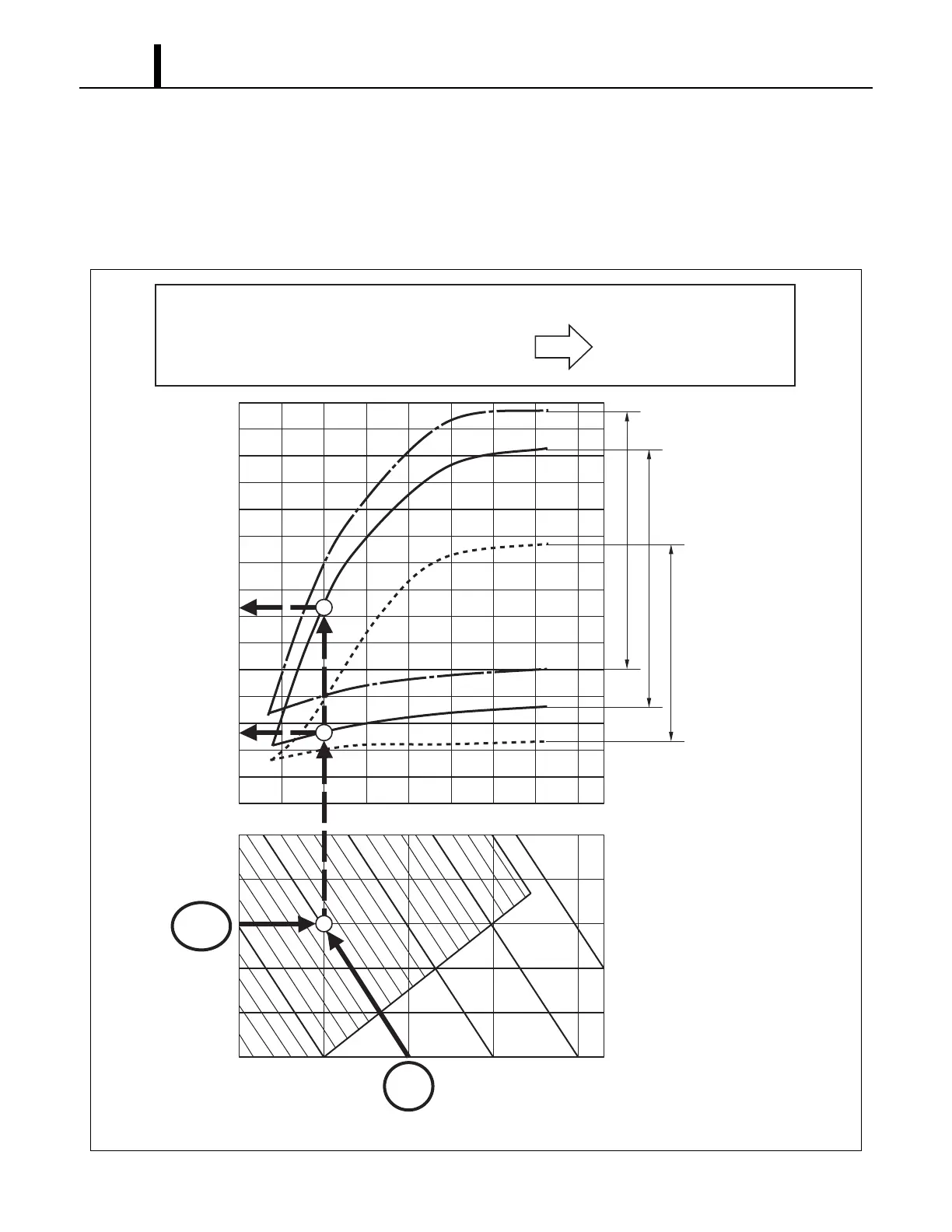

(1) How to read the characteristics
ILL00357-01
Evaporator
Inlet Air Dry Bulb Temp. °F (°C) Cooling Capacity at 7.1 gal/min (27 L/min) (x10
3
Btu/h)
Evaporator Inlet Air Wet Bulb Temp. °F (°C)
10
5
15
20
25
30
35
40
95 (35)
86 (30)
77 (25)
68 (20)
59 (15)
50 (10)
50
(10)
59
(15)
68
(20)
77
(25)
41
(5)
< Example >
Condition:
Evaporator Inlet Air Dry Bulb: 77 °F (25 °C)
Evaporator Inlet Air Wet Bulb: 59 °F (15 °C)
EWT: 85 °F (29 °C)
Cooling Capacity:
Max: 21000 Btu/h
Min: 9000 Btu/h
EWT: 85 °F (29 °C)
EWT: 115 °F (46 °C)
EWT: 45 °F (7 °C)
