Movincool CMW30 - Disassembly

Repair Section
68

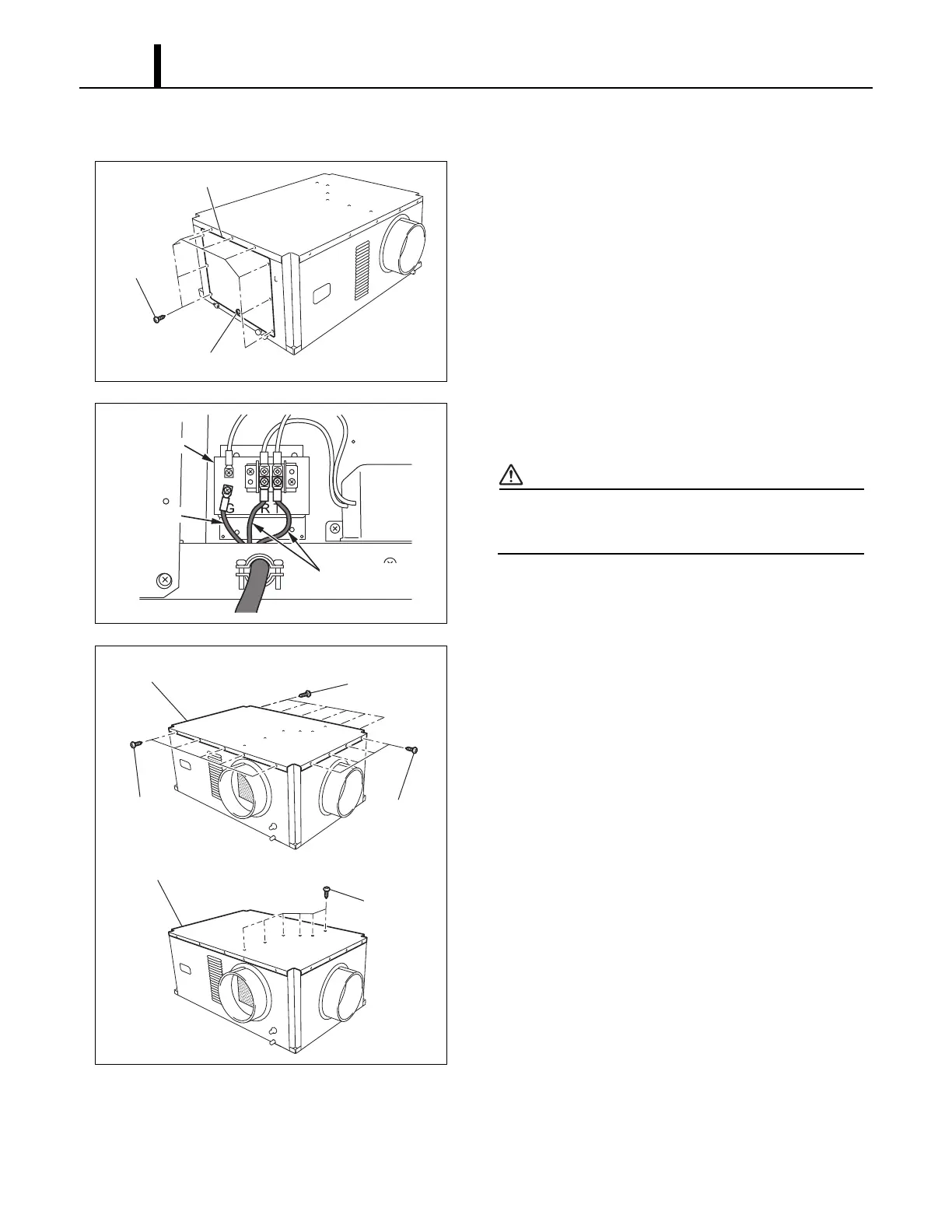

9.2 Disassembly
1) Loosen the bottom screw.
2) Take out the nine (9) screws, and then remove
the service panel.
3) Disconnect the two (2) power supply lines from
the terminal, and disconnect the ground line.
CAUTION
• Ground tightening torque:
- 1.0 ± 0.15 ft•lbf (1.3 ± 0.2 N•m)
4) Take out the twenty-one (21) screws, and then
remove the top panel.
ILL00241-00
Screws (9)
Bottom Screw (1)
Service Panel
I003182
Ground Line
Power Supply Line
Terminal
ILL00242-00
Screws (5)
Screws (6)
Top Panel
Top Panel
Screws (4)
Screws (6)
