3. CONSTRUCTION
3.1 Exterior Components

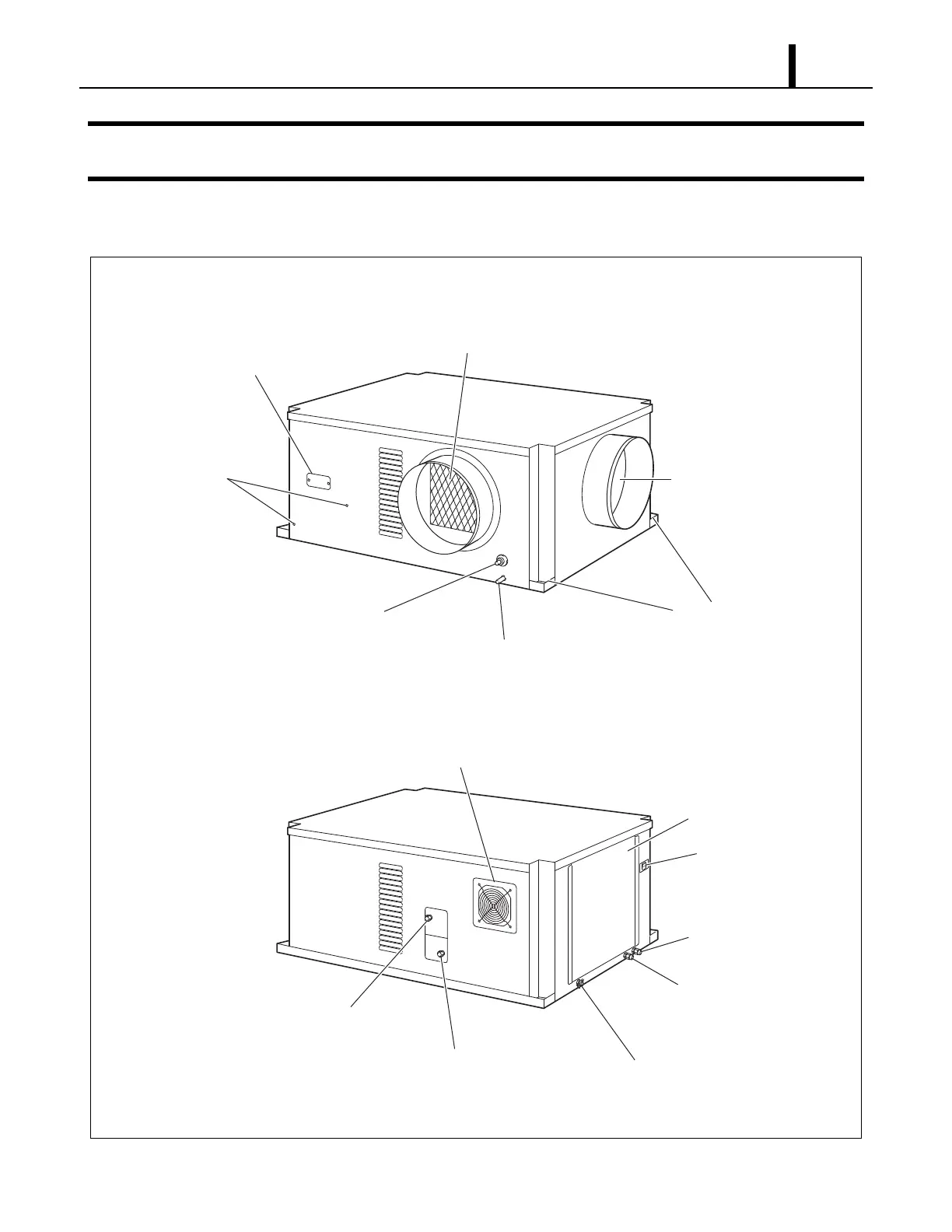

ILL00275-00
Cool Air Exhaust
(12.0 in.Dia.Flange)
Connection For Optional
Condensate Pump
Evaporator (Room)
Air Intake
(14.0 in.Dia.Flange)
Service Panel
Signal Wire Inlet
Water Outlet
(3/4 in NPT Female)
Power Cord Inlet
Stop Switch
Condensate Pan Drain For Gravitational Drain/Maintenance
Water Inlet
(3/4 in NPT Female)
Wall Mounted Controller/
Millivolt System Wire Inlet
Mounting Holes
Drain Pipe For Pump
AC Fan Motor
Fixing Position
For Optional
Condensate Pump
