Repair Section
71

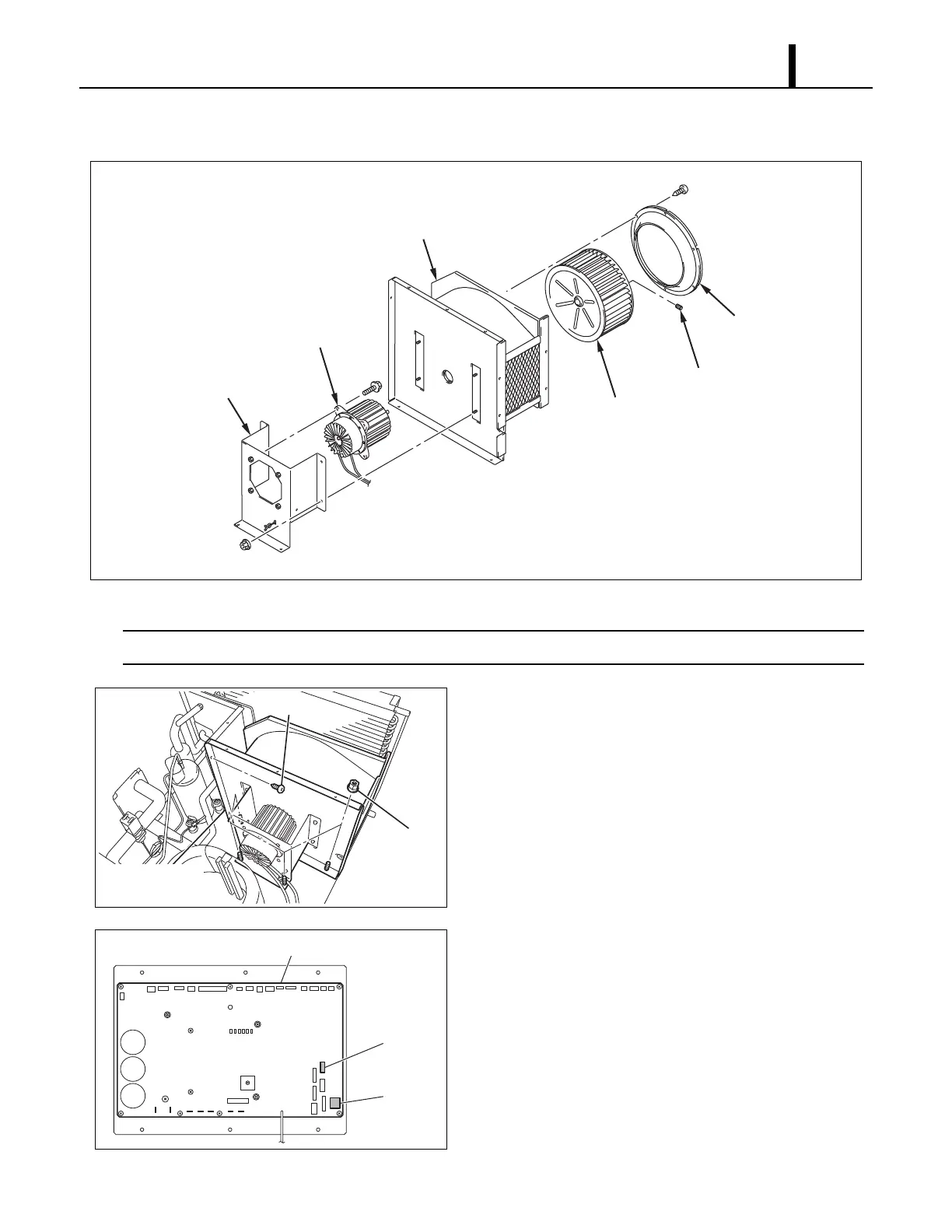

9.3 Removal of Evaporator Fan Assembly
Initialization is required after replacing the evaporator fan motor. (See page 59)
1) Take out the one (1) screw, and the four (4) nuts.
2) Disconnect the motor connectors (white, 5-pin
and white, 4-pin) from relay board CN3, CN4,
and remove the evaporator fan assembly.
I003127
Frame
Frame
Fan Motor
Ring
Fan
Set Screw
ILL00246-00
Nuts (4)
Screw (1)
Evaporator Fan
Assembly
ILL00247-01
16
CN4
Relay Board
CN3
To Next Page
