11) Take out the four (4) screws, and then remove
the AC fan motor.
12) Disconnect the two (2) connectors from the AC
fan motor.
13) Take out the four (4) screws.
14) Loosen the two (2) bottom screws.
15) Take out the eleven (11) screws, and then
remove the rear panel.

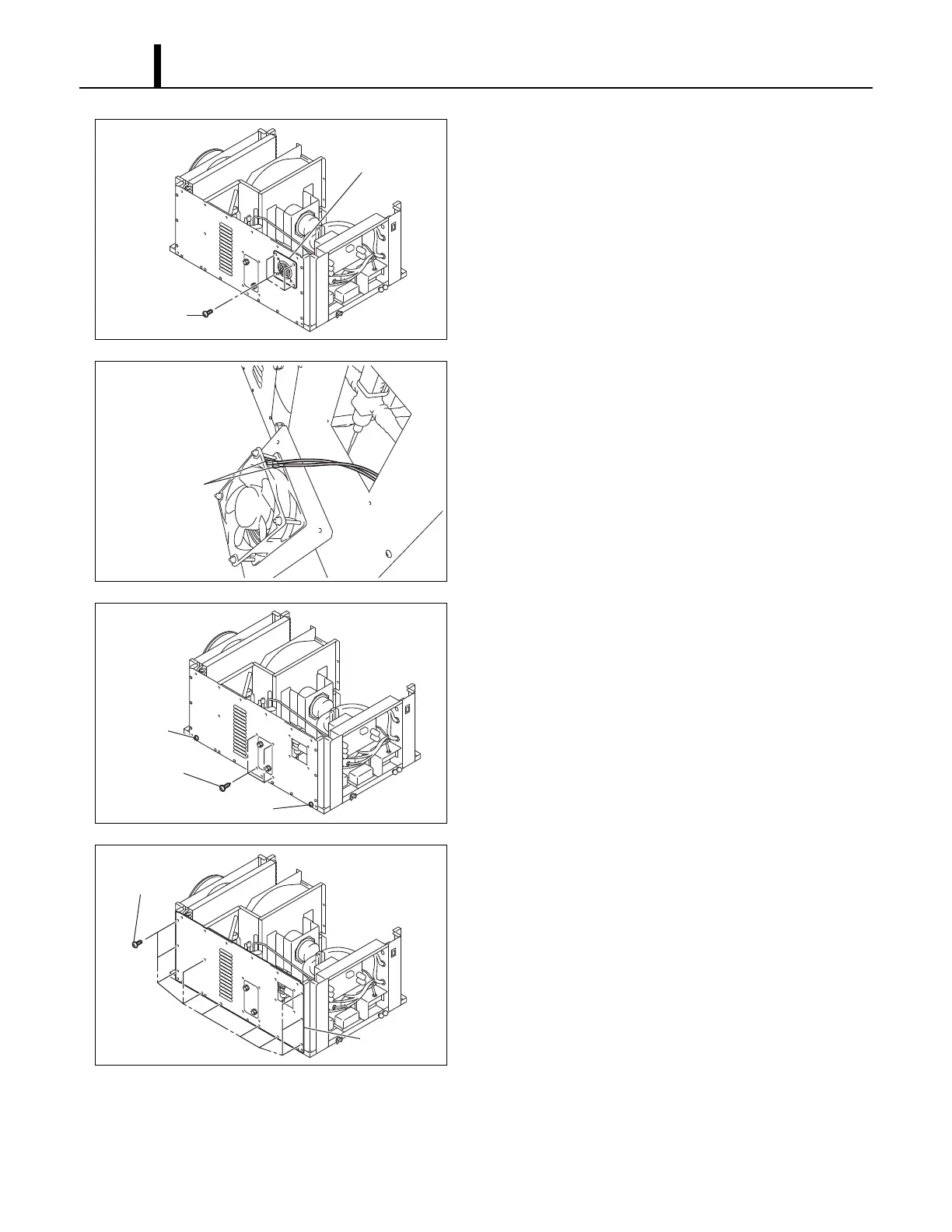

ILL00348-00
AC Fan Motor
Screws (4)
ILL00349-00
Connectors (2)
ILL00350-00
Screws (4)
Bottom Screw (1)
Bottom
Screw (1)
ILL00351-00
Screws (11)
Rear Panel
