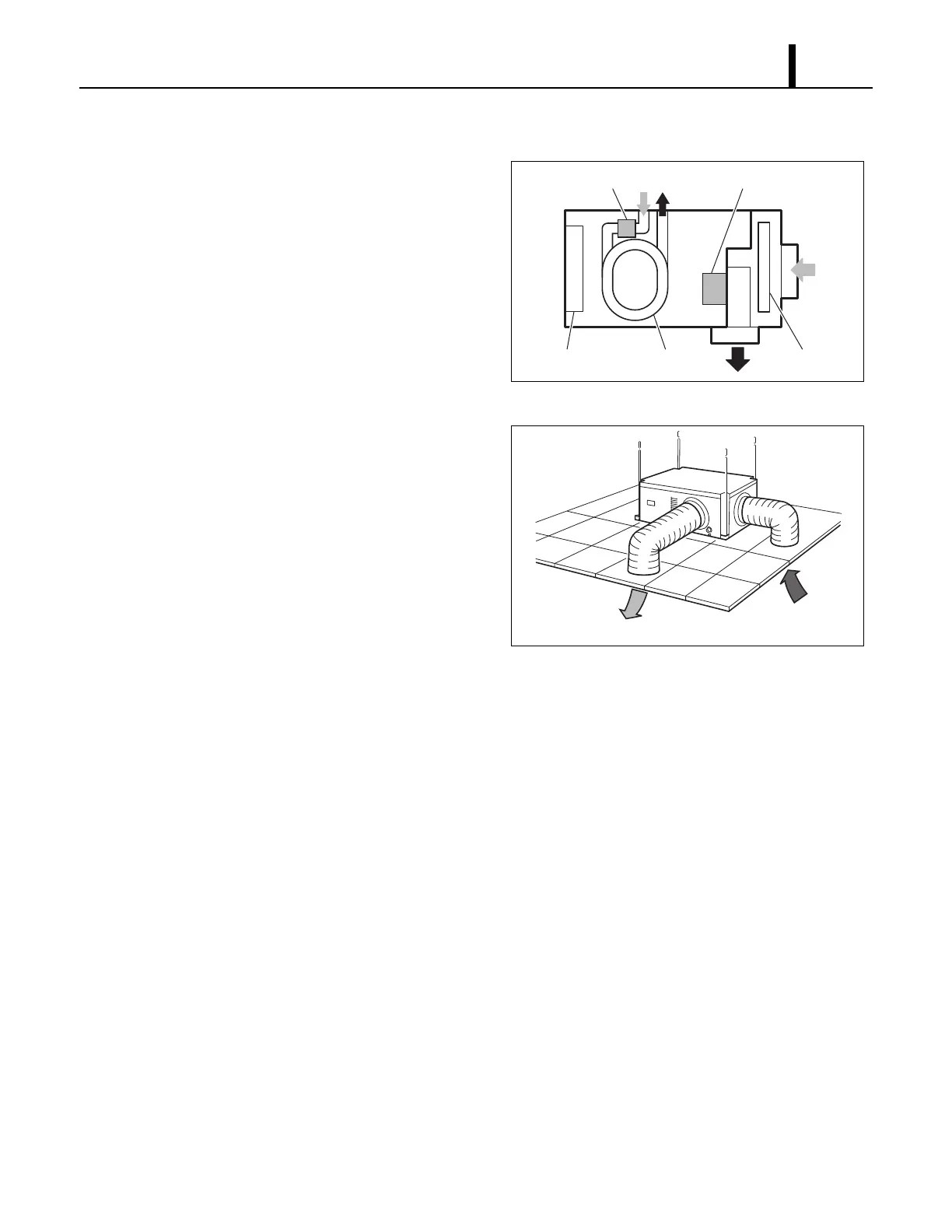

3.3 Basic Construction
• This unit is compact in construction because of
the condenser and evaporator being enclosed
in one unit. The interior of the unit is divided
into two sections. One section contains the
evaporator which cools room interior air. The
other section is comprised of the condenser,
compressor and control box.
3.4 Air Flow
• Air taken in from the room air intake is cooled
by the evaporator and then blown through the
cool air supply.
3.5 Water Flow
• This unit has two water connectors on the rear panel.
• Water is flown in from the water inlet and extracts the heat from the water cooled condenser.
Then the water is flown out from the water outlet.
ILL00279-00
CondenserControl Box
Evaporator
Evaporator Fan MotorWater Regulating Valve
ILL00280-00
Room
Air Intake
Cool Air
Supply
(Evaporator)
