Movincool CMW30 - Removal of Refrigeration and Water System Components

Repair Section
78
10.2 Removal of Refrigeration and Water System Components
WARNING
• Before replacing any refrigeration and water system component, recover the refrigerant
using standard recovery procedures and equipment, and drain the water from the unit.
• When recovering the refrigerant, use the pinch-off tubes at the low pressure side (tube 1)
and high pressure side (tube 2) as shown in the figure below.
CAUTION
• To prevent oxidation, dry nitrogen should be conducted (flow rate 0.27 gal/min (1 L/min)) through
the pinch-off tube during any brazing operation.
• During any component replacement involving brazing, shield nearby parts with a steel plate, etc.,
to protect them from the flame.
< NOTE >
When replacing the compressor, attach the pipe 1 and the pipe 2 packaged in the compressor
assembly.

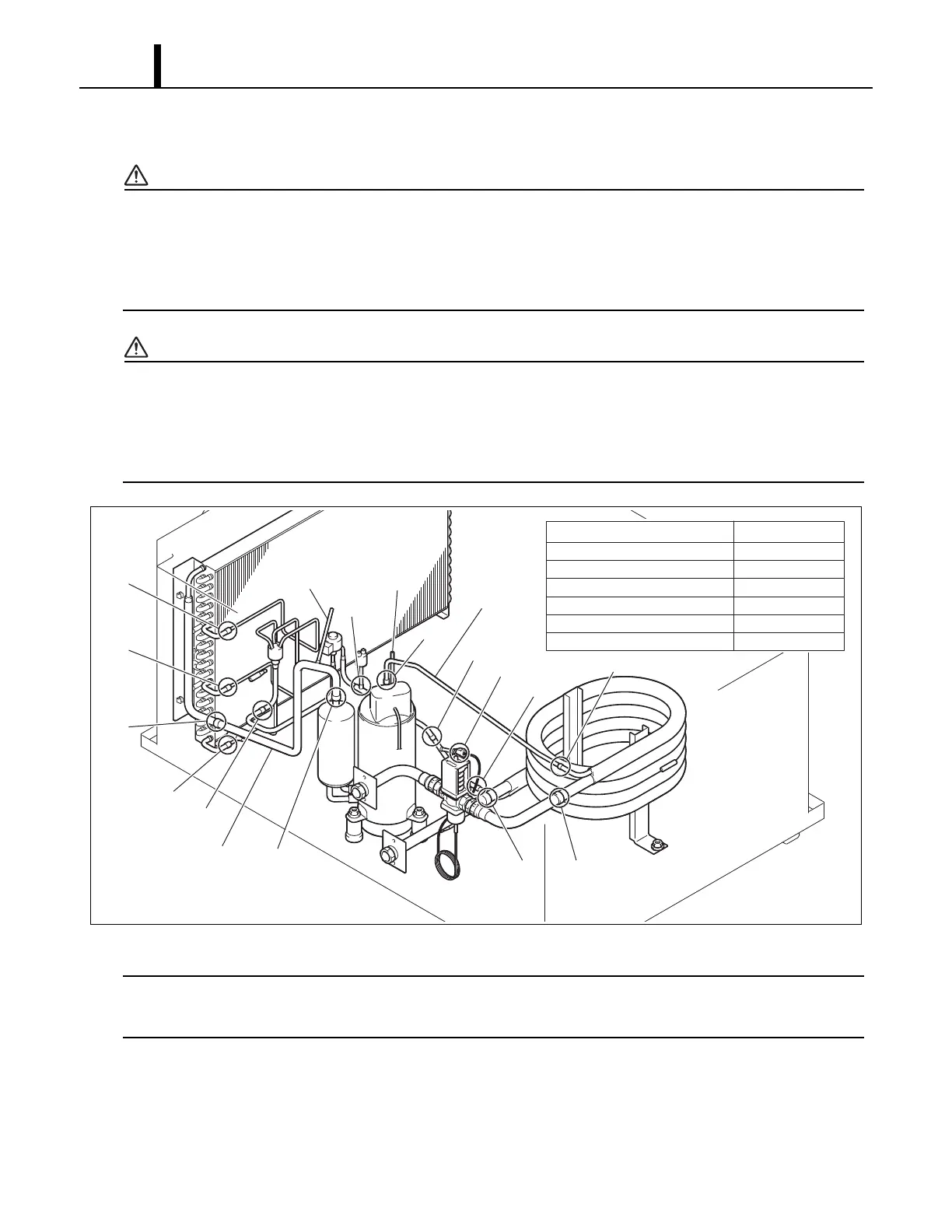

(1) Removal of water cooled condenser
ILL00250-00
F
E
G
Pipe 1
H
C
A
M
D
O
J
B
K
L
I
Pipe 2
Tube 2Tube 1
Part to Replace
Compressor
Condenser
Electronic Expansion Valve
Evaporator
Disconnect at
E, F, G, H
B, J, K, L
C, D
High-Pressure Switch
Water Regulating Valve
M
L, O
A, I
