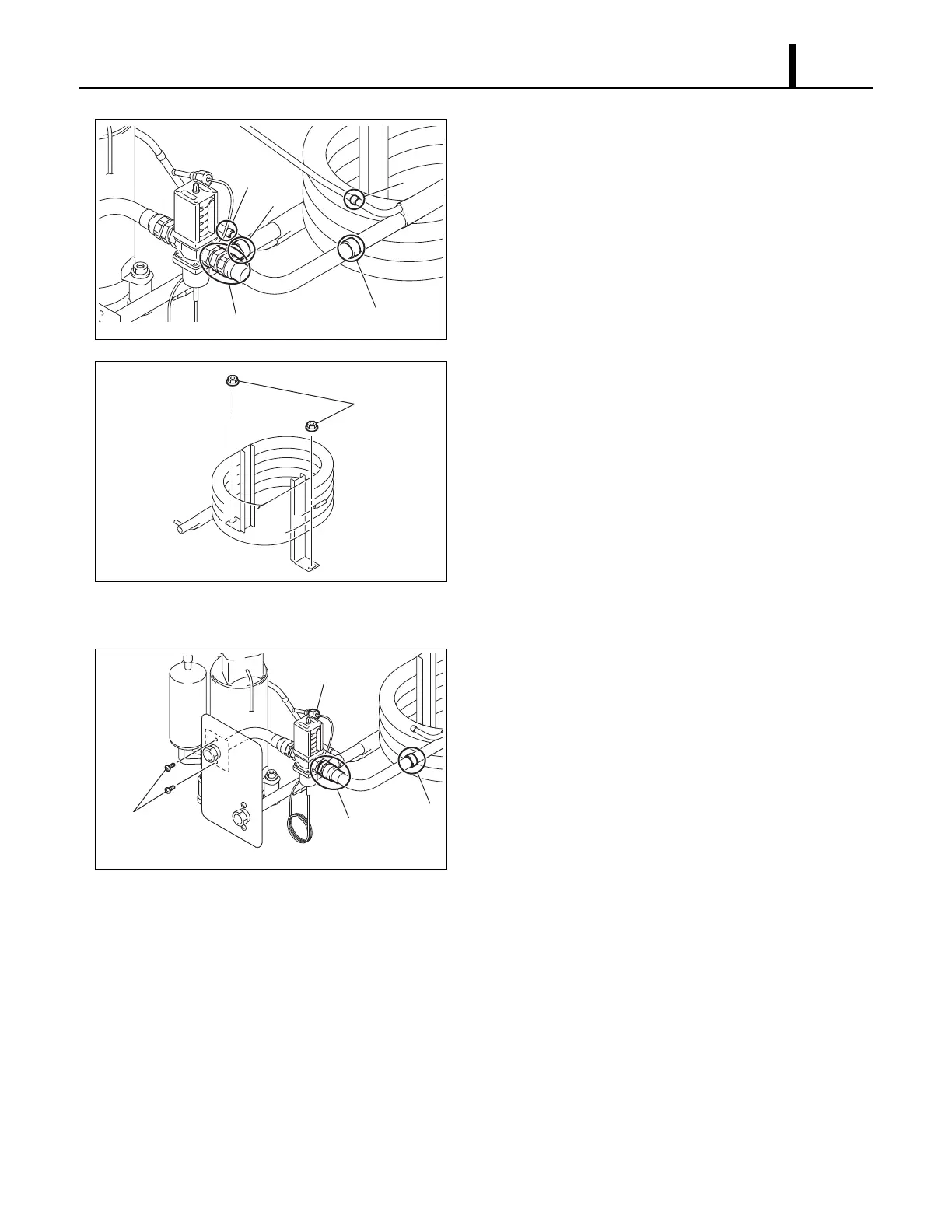

1) Disconnect four brazing points (A ~ D) as shown.
When brazing, cover the area E with a wet cloth
to prevent damage.
2) Remove two (2) nuts from the frame. Then
remove the water cooled condenser.
(2) Removal of water regulating valve
1) Remove one (1) nut and two (2) screws. Then
disconnect one brazing point (A).
When brazing, cover the area B with a wet cloth
to prevent damage.
ILL00352-00
E
C
D
B
A
ILL00353-00
Nuts (2)
ILL00354-00
Nut (1)
A
B
Screws (2)
