Movincool CMW30 - Wall Mounted Controller (WMC) Connection

Operation Section
32

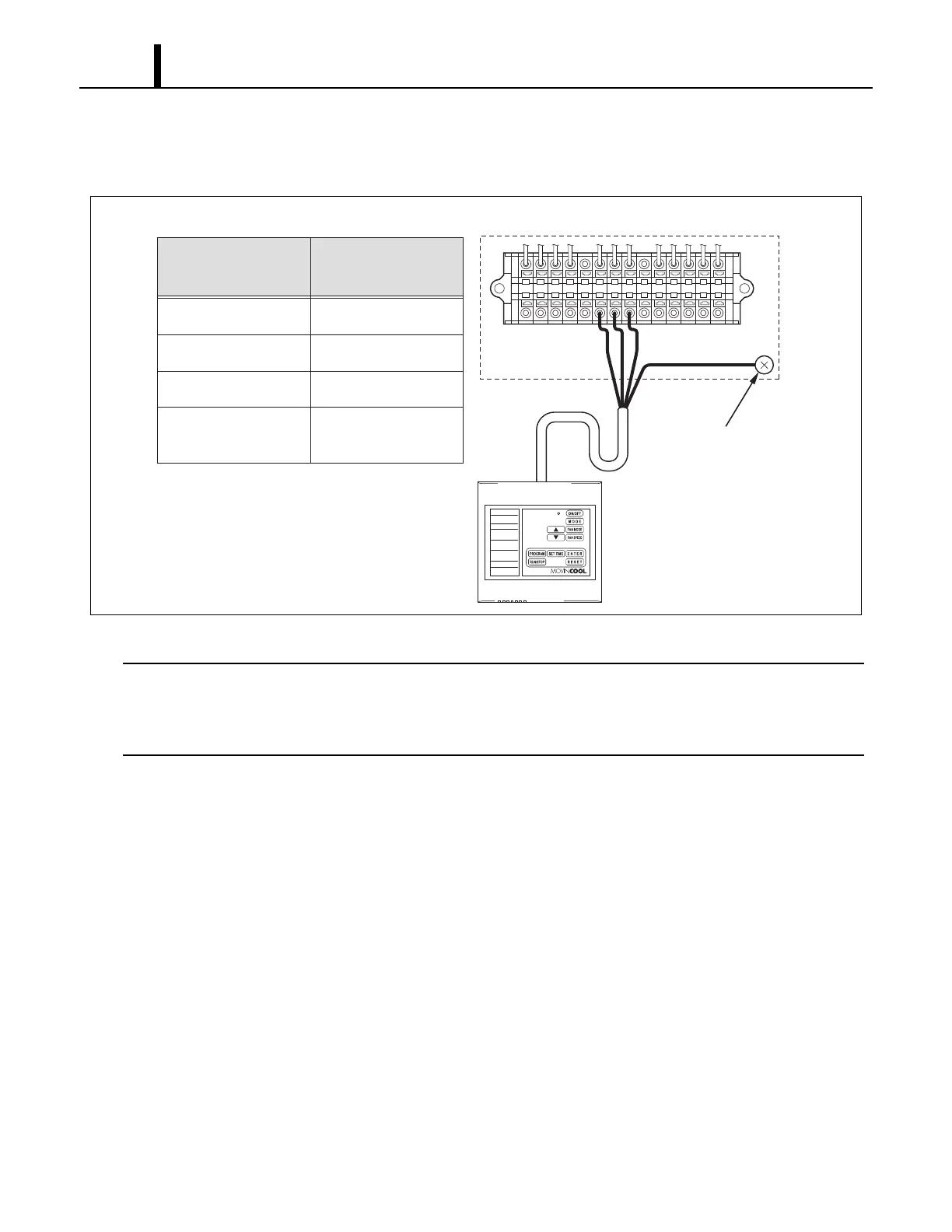

6.2 Wall Mounted Controller (WMC) Connection
• This unit is equipped with terminals for connection to the supplied WMC.
< NOTE >
If the wiring needs to be extended, a maximum extension wire can be extended up to 316 feet.
Shield wire 16-22 AWG is recommended for use as an extension wire to reduce noise
interference.
I003165
L– L+ E– E+ G4 C4 P RC Y1 Y2 G G1
G
Unit Terminal
Wall Mounted Controller (WMC)
Ground Screw
Connection Table
P (Red)
C4 (White)
G4 (Black)
Shield Conductor
(Green)
P
Wall Mounted
Controller
Wire No. (Color)
Unit
Terminal No.
C4
G4
G
(Ground Screw)
