ioLogik E1200 Series Initial Setup

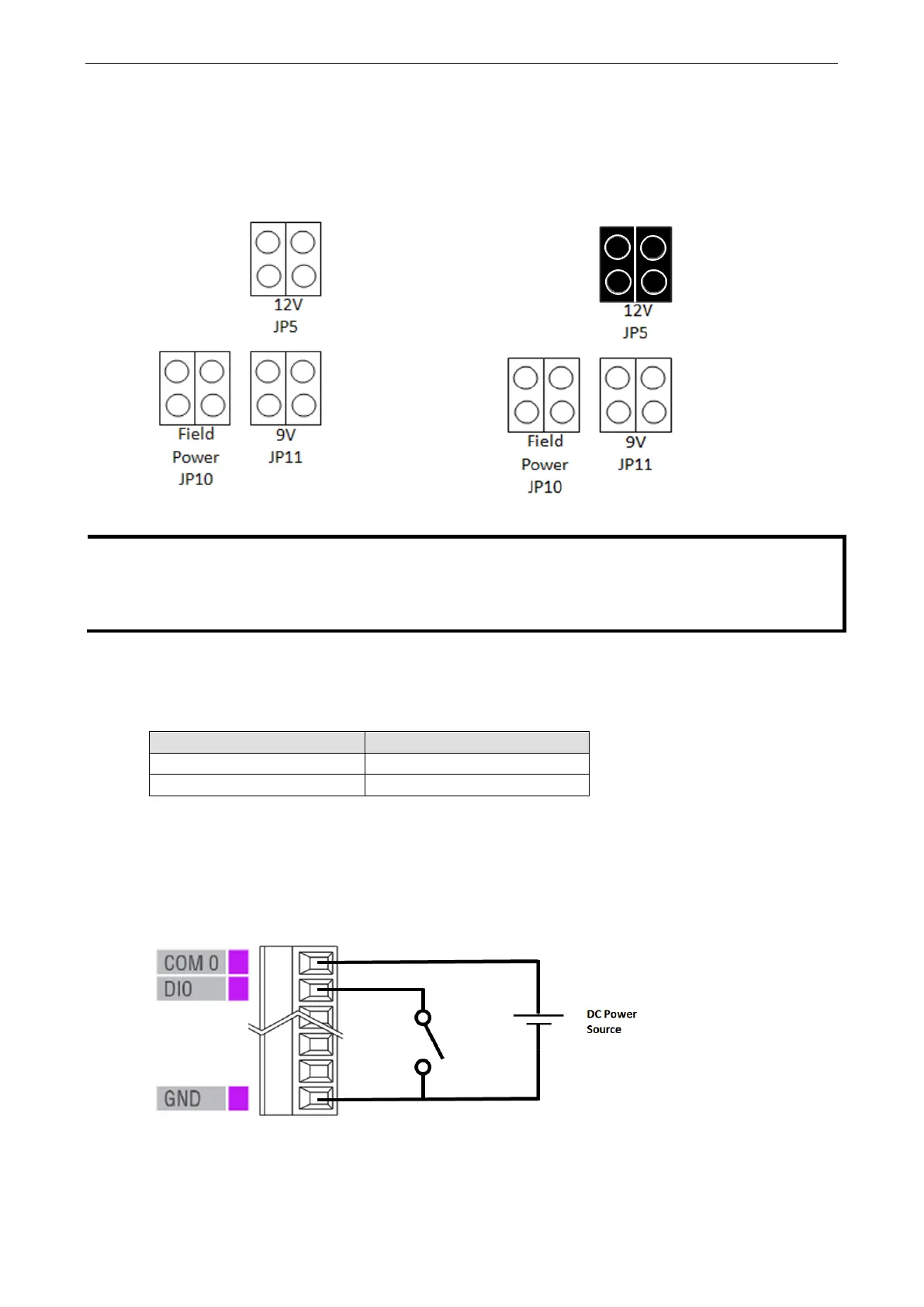

EXT Power Configuration
The ioLogik E1213 comes with a source type DO, which has three possible external (EXT) power configurations.
Only one field power configuration can be selected at a time (JP10 / 12V JP5 / 9V JP11), and the jumper must
be inserted vertically, not horizontally. EXT power configuration settings are shown below:
The default setting is Field Power JP10.
The ioLogik E1213 has 4 pure DO channels and 4 hybrid DIO channels. For the 4 pure DO channels, you can use
the jumpers to select th
e power configuration output (e.g., field power:
12 V, 9 V). But for the 4 hybrid DIO
channels, you cannot use the jumpers to select the power configuration output. Instead, you can only use the
jumpers to set the DIO channels to either DI mode or DO mode.
I/O Wiring
The following wiring guide explains how to configure seven different types of I/O channel:
Item Suggested Setting
Wire range 16 to 26 AWG
Screw Torque 3 lb-inch
A Dry Contact is a contact that works without a power source. This applies to buttons, switches, etc.
A Wet Contact is a contact that must be connected to a power source to work. This applies to proximity
sensors, motion sensors, etc.
Check the sensor type (NPN, PNP) and follow the corresponding wiring instructions.
DI Dry Contact
