ioLogik E1200 Series Using the Web Console

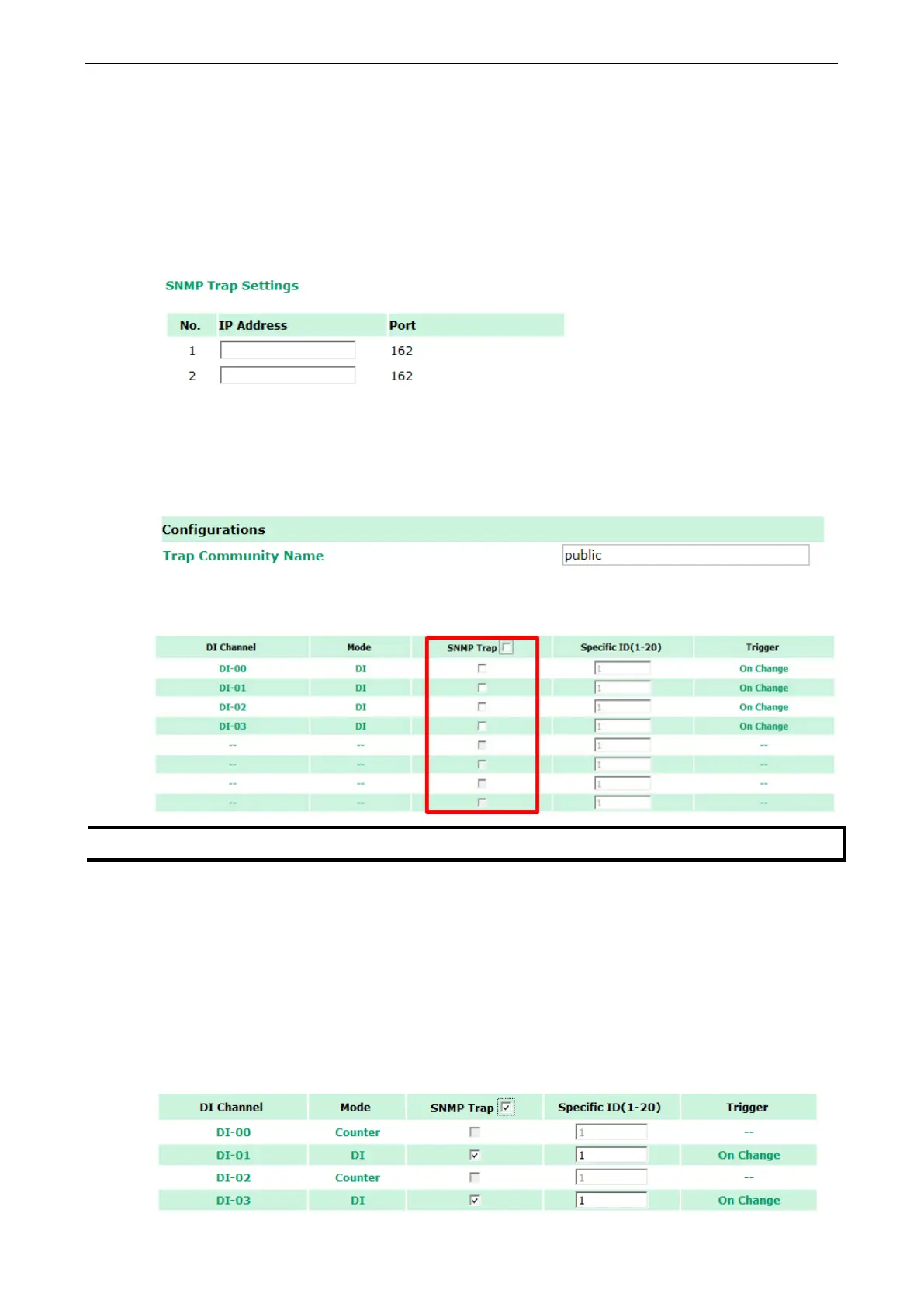

SNMP Trap Settings
On the SNMP Trap Settings page, you can enable SNMP and configure SNMP traps.
SNMP Trap Server
The SNMP Trap function sends an SNMP trap to up to two IP destinations. If both IP addresses are configured,
it will send to both addresses simultaneously when an SNMP trap is triggered.
SNMP Trap
To change the trap community name, type the new name in the input box located to the right of Trap
Community Name.
Enable Channel SNMP Trap by clicking on the SNMP Trap box, and then select the channel you would like to
enable.
SNMP is not supported while using the peer
-to-peer function.
Specific ID
The Specific ID (trap number) can be any number between 1 and 20. (You may need to consult with your
network administrator to determine how the trap numbers are used and defined on the network.)
Digital Input / Counter Trap Settings
For a digital input, the trap is triggered by the On Change function. When there is a change in the DI channel,
the SNMP will send a trap to the SNMP Server.
