ioLogik E1200 Series Initial Setup
2-3
STEP 2

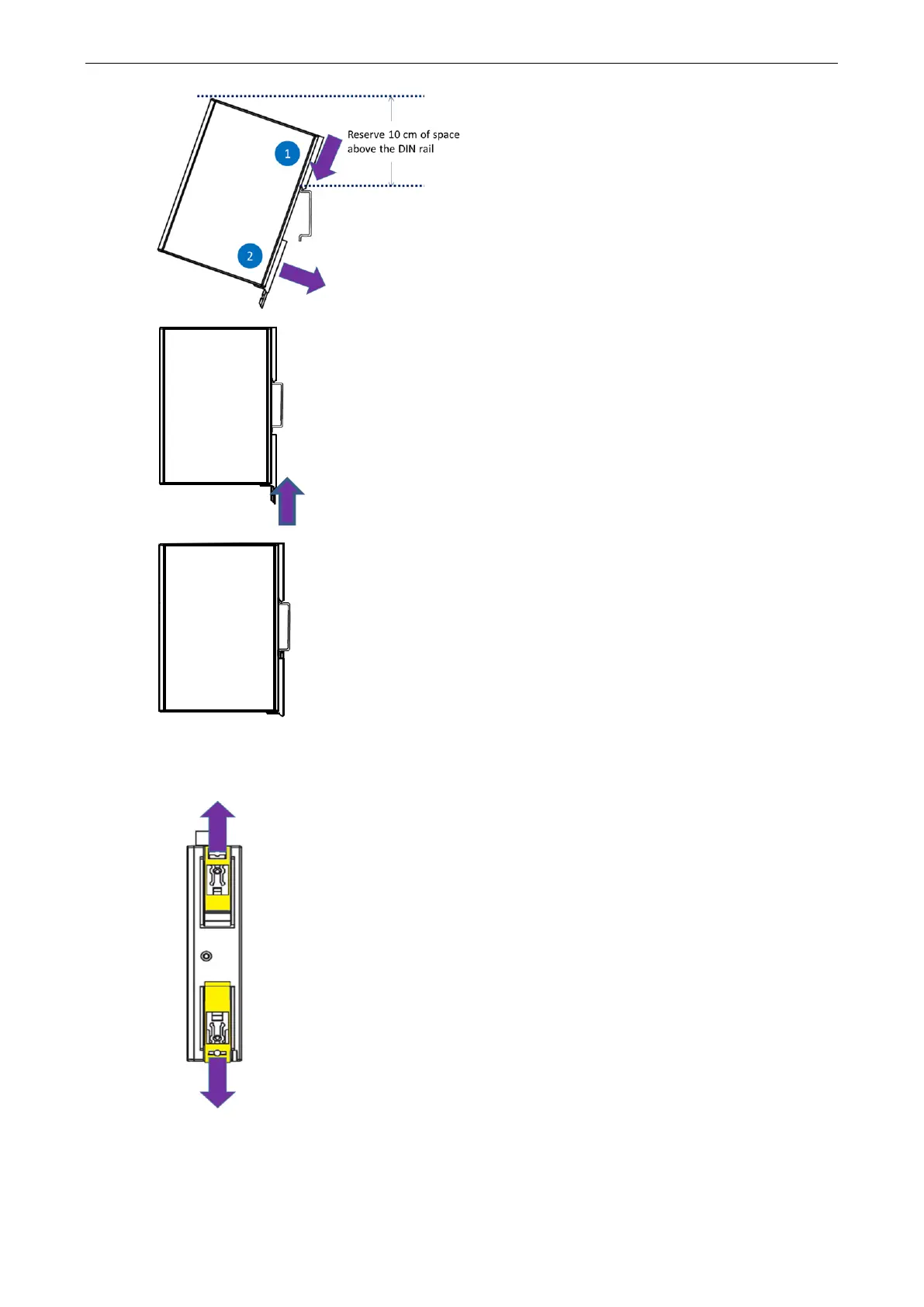

. Latch the top slider of the unit onto the DIN rail
as
shown in the diagram.
Reserve at least 10 cm of space
above
the DIN rail to ensure
that there is enough space to
complete the
installation.
STEP 3.
Rotate the unit down into a vertical position, and then p
ush
the bottom slider
back up to its original position
to lock the unit to
the DIN rail
.
STEP 4.
At this point, if the mounting was done correctly, t
he unit
sh
ould be securely fixed to the DIN Rail.
Wall Mounting
STEP 1. There are two sliders
on the back of the unit, pull out both slider
s out away from the
product
.

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
