Moxa Technologies ioLogik E1260 User Manual

ioLogik E1200 Series Using the Web Console
3-8
I/O Settings
DI Channels

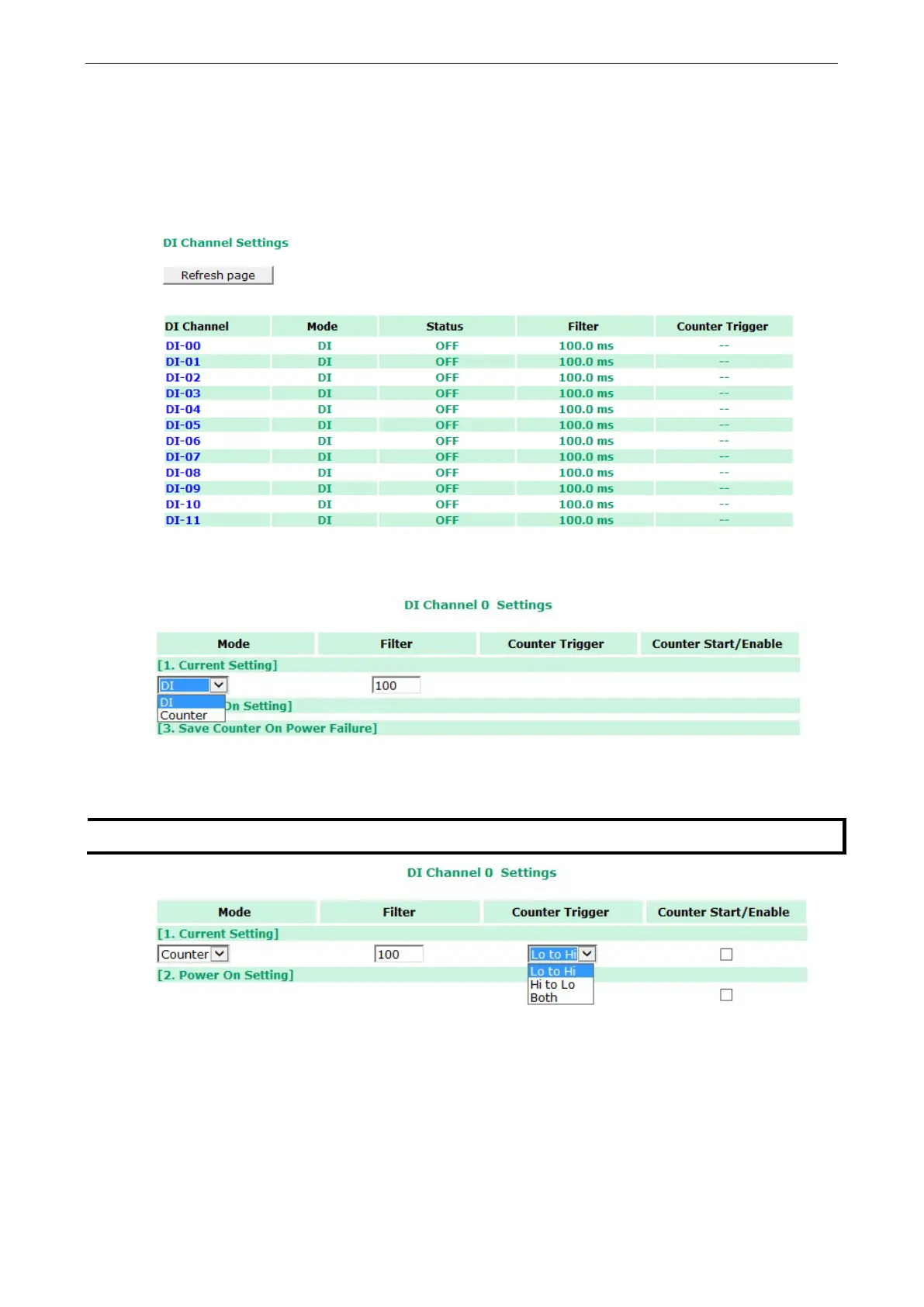

The status of each DI (digital input) channel appears on the DI Channel Settings page.
You can also configure each channel’s digital input mode and parameters by clicking on the channel. DI
channels can operate in DI mode or Event Counter mode.
Activate Event Counter mode by selecting the Counter Start field and configure the Counter Trigger by
selecting Lo to Hi, Hi to Lo, or Both from the dropdown menu. When the Counter Start field is not selected,
you can still activate the counter by using Modbus commands.
NOTE
Confirm that the Counter Filter is not set to 0; otherwise, the counter will never be activated.

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
