ioLogik E1200 Series Using the Web Console
3-9

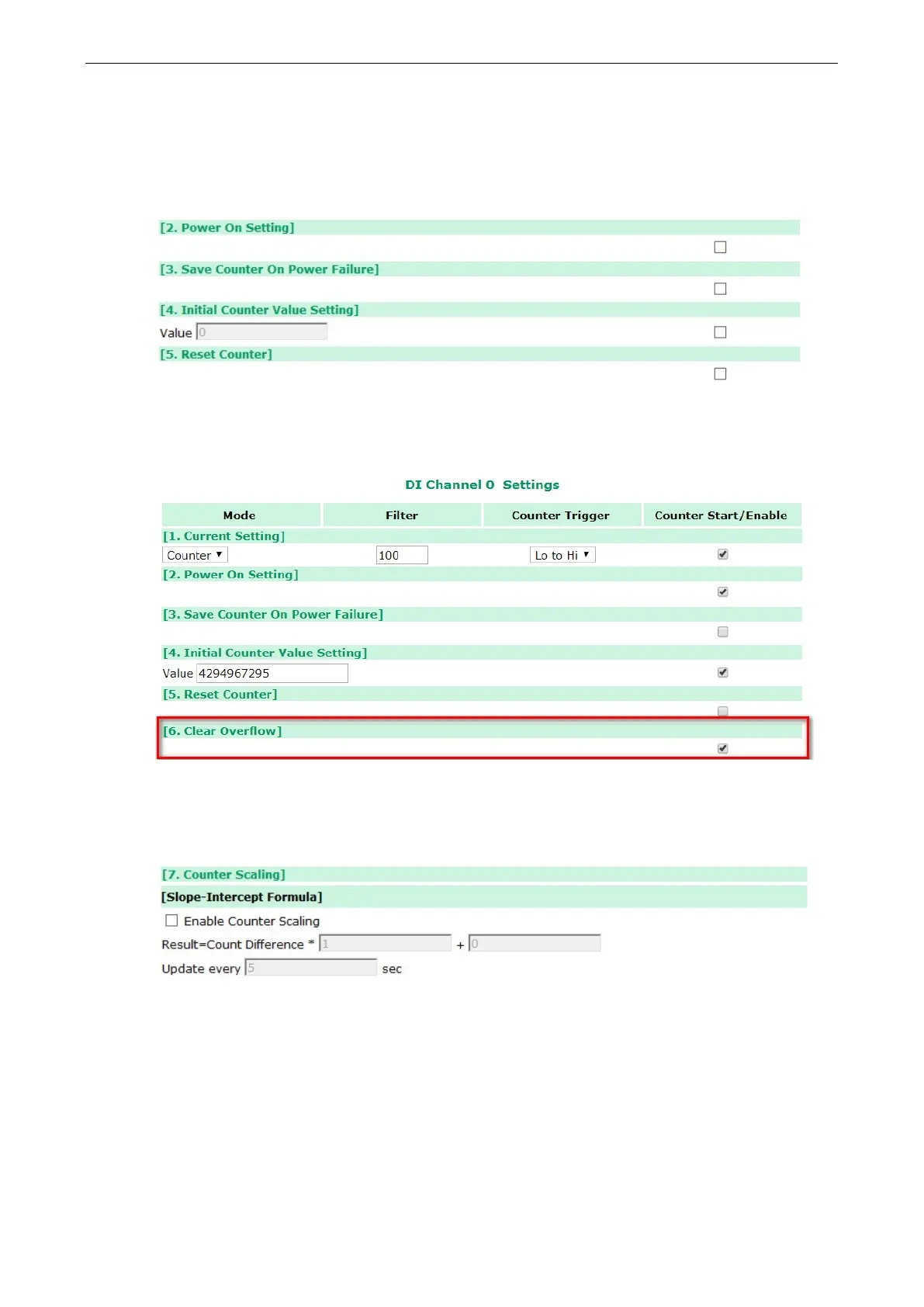

Power On Setting: You may configure DI channels in Event Counter mode whether or not counting begins
when powering up.
Save Counter On Power Failure: The ioLogik E1200 will automatically save the counter value when there is
a power failure if this function selected.
Reset Counter: Select this function to reset the counter.
Counter Overflow: If the value of the counter is over the maximum counter value of 4294967295, the word
Overflow will be displayed in the web console; the actual counter value will restart counting from 0. To display
the current counter value in the web console, check the Clear Overflow checkbox, as shown below.
Counter Scaling: Select the Enable Counter Scaling checkbox to enable the counter scaling function. To use
this function, define the gain and offset values, and define the update interval.
For example, if the gain is 5 and the offset is 10, the counter result will be (count difference x 5) + 10.

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
