Moxa Technologies ioLogik E1260 User Manual

ioLogik E1200 Series Introduction
1-4

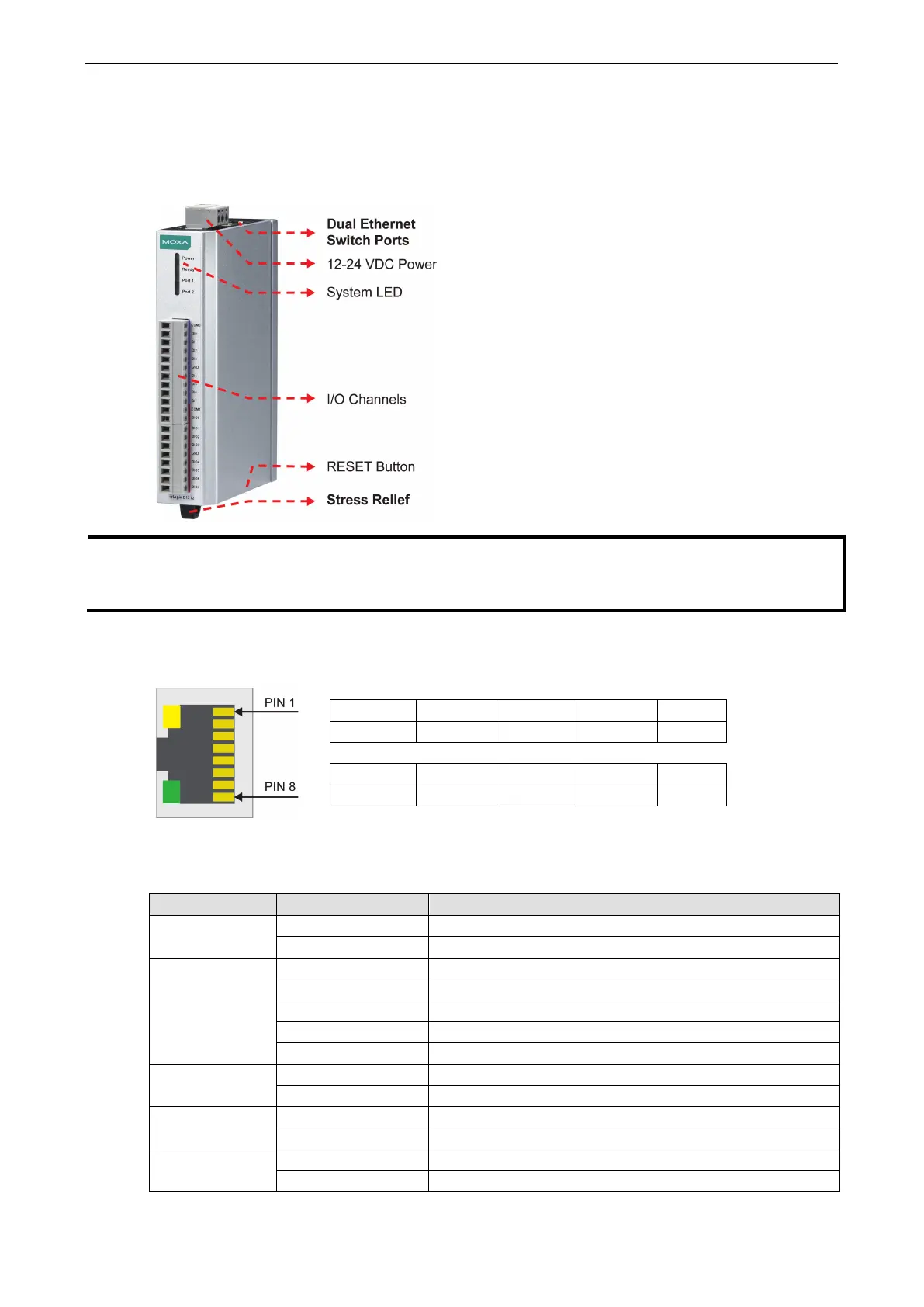

Hardware Reference
Panel Guide
NOTE
The
RESET button restarts the server and resets all settings to factory defaults. Use a pointed object such as
a straightened paper clip to hold down the RESET button for 5 seconds. The factory defaults will be loaded once
the READY LED turns green again. You
may then release the RESET button.
Ethernet Port
Pin 1 2 3 4
Signal TXD+ TXD- RXD+ ---
Pin 5 6 7 8
Signal --- RXD- --- ---
LED Indicators
LED State Description
Power Amber System power is ON
OFF System power is OFF
Ready Green System is ready
Flashing Flashes every 1 second when the “Locate” function is triggered
Flashing Flashes every 0.5 second when the firmware is being upgraded
Flashing ON/OFF cycle period of 0.5 second represents “Safe Mode”
OFF System is not ready
Port 1 Green Ethernet connection enabled
Flashing Transmitting or receiving data
Port 2 Green Ethernet connection enabled
Flashing Transmitting or receiving data
EXT Green EXT field power input is connected
Off EXT field power input is disconnected

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
