ioLogik E1200 Series Initial Setup
2-4

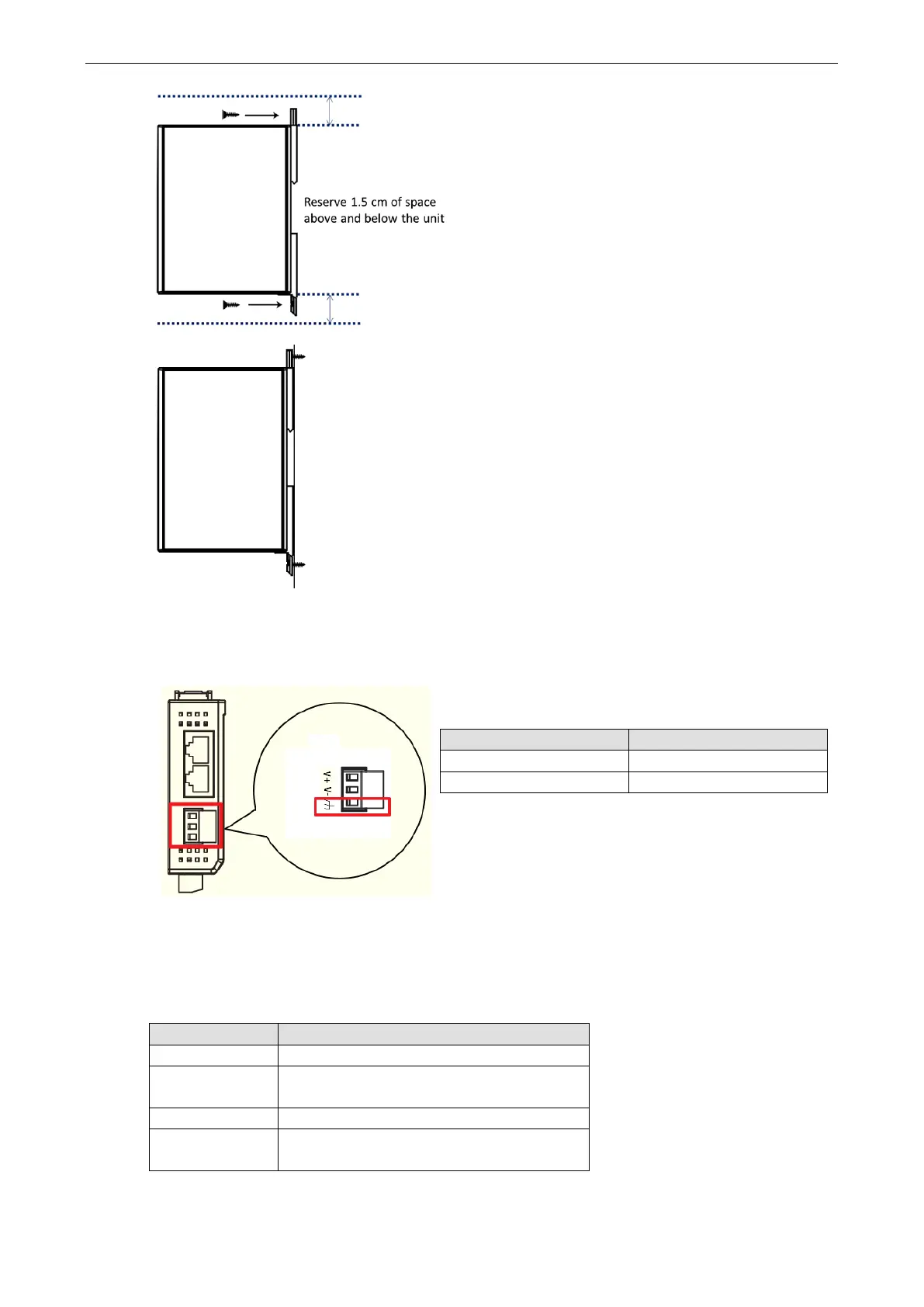

STEP 2. Use screws to fix the unit to the wall, as shown in the
diagram.
Reserve at least 1.5 cm of space above and below
the unit to ensure
that the installation can be done correctly.
STEP 3.
At this point, if the mounting was done correctly, the unit should be
securely
fixed to the wall.
Grounding the Unit
Top View
The ioLogik E1200
has a grounding point located on the top
panel
of
the terminal block. Connect the ground pin ( ) to earth
ground.
Item Suggested Setting
Wire range 12 to 24 AWG
Screw Torque 7 lb-inch
I/O Channel Jumper Setting
The following table shows jumper setting for each model of the ioLogik E1200 Series. We provide a more
detailed description of three different jumper settings.
Model Jumper Setting
E1212 DIO direction (DI, DO)
E1213 1. DIO direction (DI, DO)
2. EXT Power Configuration
E1240 AI mode (Voltage, Current)
E1242 1. DIO direction (DI, DO)
2. AI mode (Voltage, Current)

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
