ioLogik E1200 Series How to Connect the ioLogik E1200 to an Allen-Bradley PLC
6-9

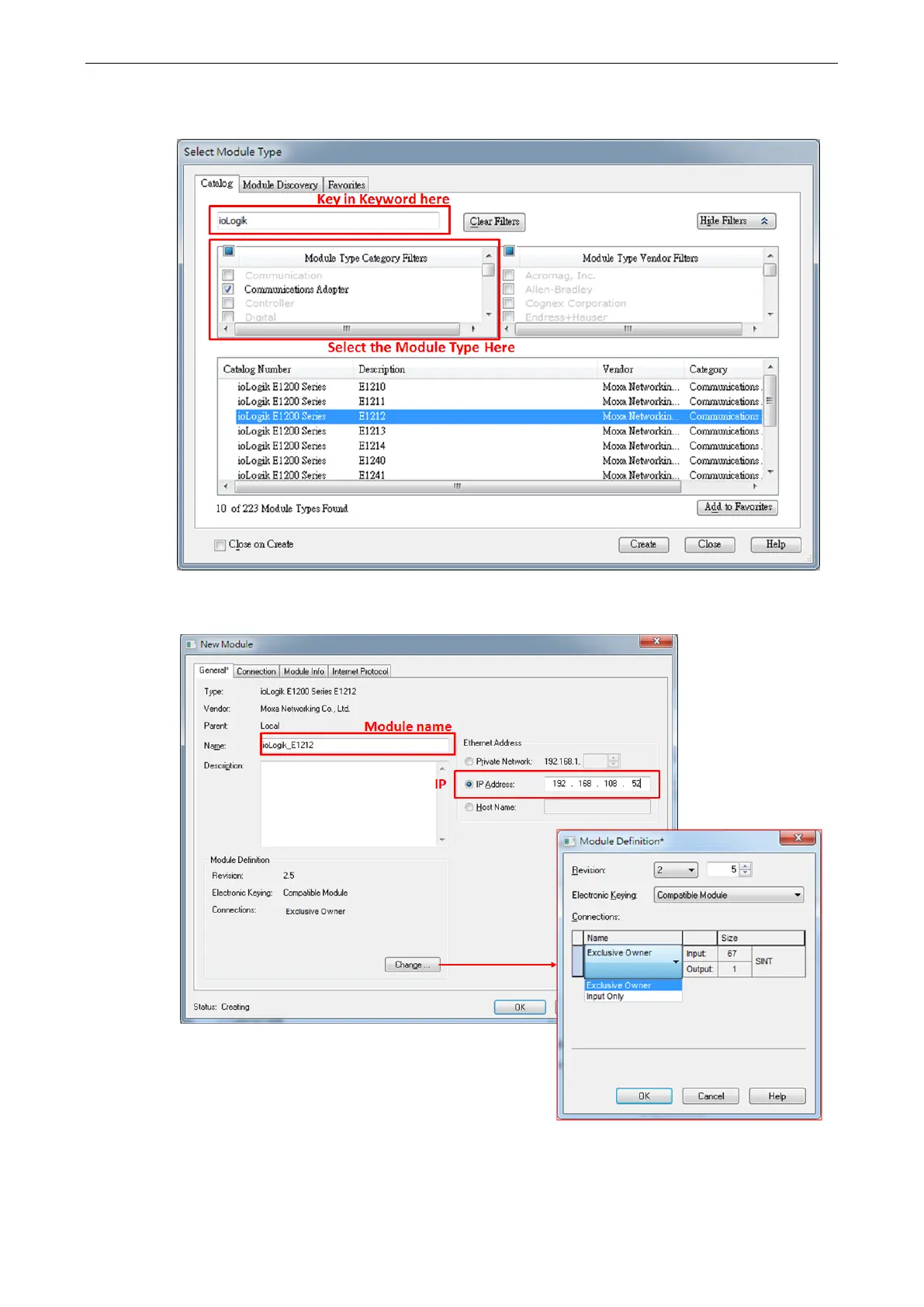

4. In the Select Module Type window, choose the ioLogik E1200 model you want to add. You can use a key
word and select the module type to speed up the search. The ioLogik E1212 is used here as an example.
5. In the New Module window, key in the module name and module IP. The default module definition is
Exclusive Owner. If you want to change it, click change and then choose another type.

Moxa Technologies ioLogik E1260 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Mean time between failures (MTBF)	660260 h
Certification	UL/cUL Class I Division 2, ATEX Zone 2
Product color	Silver
LED indicators	Yes
Operating temperature (T-T)	-40 - 167 °F
Cabling technology	10/100Base-T(X)
Ethernet LAN (RJ-45) ports	2
Input current	0.110 A
AC input voltage	24 V
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	84 mm
Width	27.8 mm
Height	124 mm
Weight	200 g
