MSA Ultima X Series User Manual

MSA
Installation
ULTIMA X
®
Series
30
GB
3.2 Installation with ULTIMA® X Series Mounting Kit
Instruments from the ULTIMA X
®
Series are installed at the place of installation on
a mounting plate.

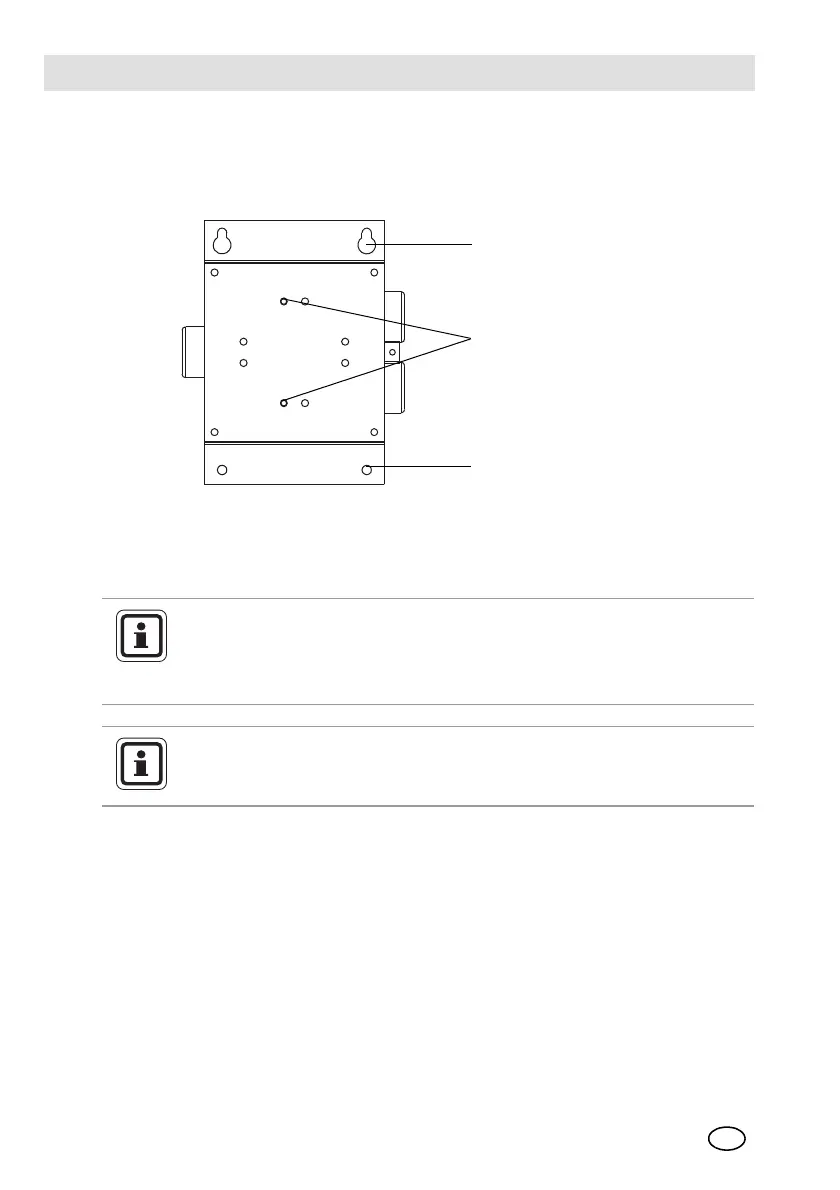

Fig. 6 Mounting plate for ULTIMA XE and XIR
Mount the instrument as follows:
(1) Using the mounting plate as a template, mark the holes for the four fixing
screws.
(2) Drill four holes of appropriate diameter.
(3) Attach mounting plate to the Gas Monitor enclosure with M6 x 20 screws.
(4) Attach Gas Monitor with mounting plate, using four M6 x 20 screws, at the
place of installation.
1 Wall mounting fixing holes
2 Instrument fixing holes
1
1
2
Use M6 x 20 mm screws and suitable plugs for attaching the mounting
plate to the wall.
M6 x 20 screws will also be required for fixing the mounting plate to the
ULTIMA X Series enclosure.
When preparing the assembly, make sure that the mounting arrange-
ment is correct for the particular device.
