Appendix: Electrical Installation
ULTIMA X
®
Series
68
GB

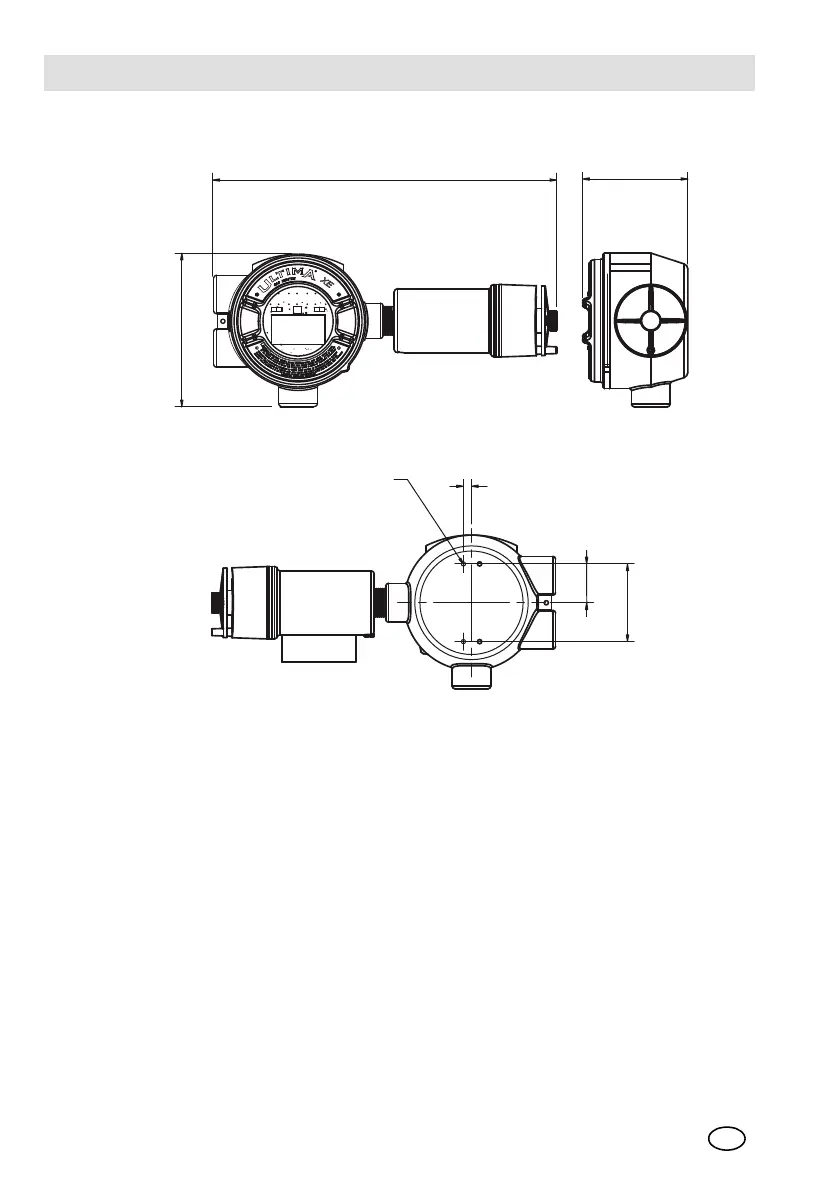

9.2 Installation Outline Drawing [CE] - ULTIMA XE with XIR Sensor
Notes:
- Instrument weight: 4.8 kg
- Dimensions shown in millimetres.
- Install XIR sensor horizontal as shown.
- Cable gland threads are M25 x 1.5 mm OR 3/4” NPT x 14
- Instrument housing: 316 St.St.
- All cable shields to be terminated to ground earth at one end only.
- Certified cable glands or blanking plugs shall be installed at all cable entries
during installation.
- NPT threads shall conform to the requirements of ANSI/ASME B1.20.1, and
shall be made-up wrench tight.
3.996.423
7.5
10-32 Mounting screw holes
(2 places)
36.5
73.2
