The display shows:
- A countdown from 30 to 0 seconds
- the APPLY ZERO GAS indicators [ Fig. 10].

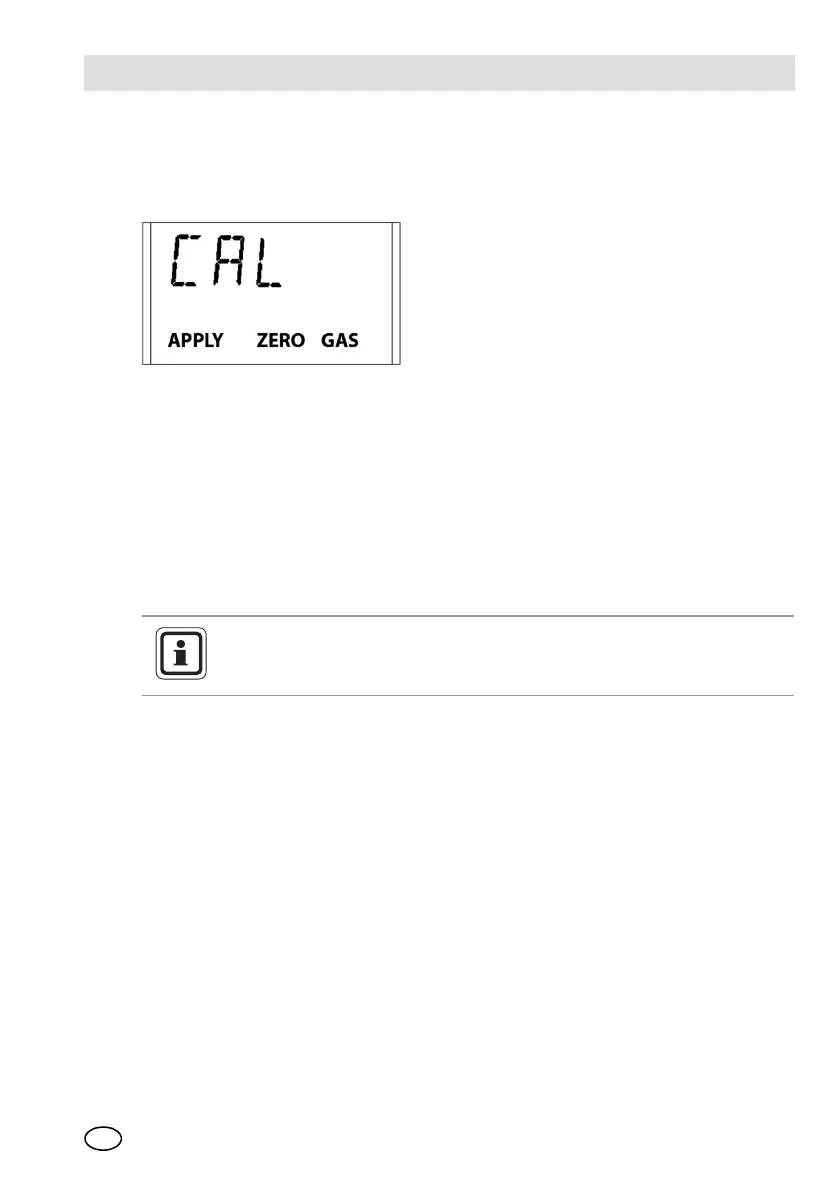

Fig. 10 Prompt for supplying zeroing gas
(8) After the 30 second countdown:
 CAL and a numeric value will be displayed alternately on the display, which
is the actual reading of the gas concentration the sensor is detecting.
 After the gas reading has stabilised, the alternating display stops and if the
calibration is successful, the display will show END.
(9) If using the zero cap, remove it.
(10) When using a zero gas cylinder, close the valve on the flow regulator and re-
move the tube from the SensorGard.
If CAL FAULT is displayed, this indicates the following:
- The zeroing of the ULTIMA X
®
Series Gas Monitor has failed.
- The ULTIMA X
®
Series Gas Monitor is operating with the calibration parame-
ters, which were defined before beginning the calibration [ chapter 11.3
"Instructions for troubleshooting"].
To remove the CAL FAULT message, a complete successful calibration procedure
must be performed.
If the calibration output signal is enabled during calibration, it will remain
at the SENSOR CAL value for another two minutes after END is dis-
played.
