11. Remove the three screws (indicated by the arrows
in
Figure 2.15.) that hold the lower chute to the
rotating ring gear using a 5/16” wrench.
12. With the cables still attached, swing the chute to the
side
13. Remove the two screws indicated by the arrow in
Figure 2.16.(one on each side) that secure the
cover to the handle bar.
14. Tip the snow thrower back onto its handlebar.
15. Remove the two screws (indicated by the arrows in
Figure 2.17.) that attach the top engine cover to the
auger housing using a 3/8” wrench.
16. Lift the top cover off of the snow thrower.
NOTE: Swing it to the side if the primer hose and
switches are still connected.
17. Install the top cover by following the previous steps
in reverse order.
18. Test run the snow thrower in a safe area before
returning it to service.

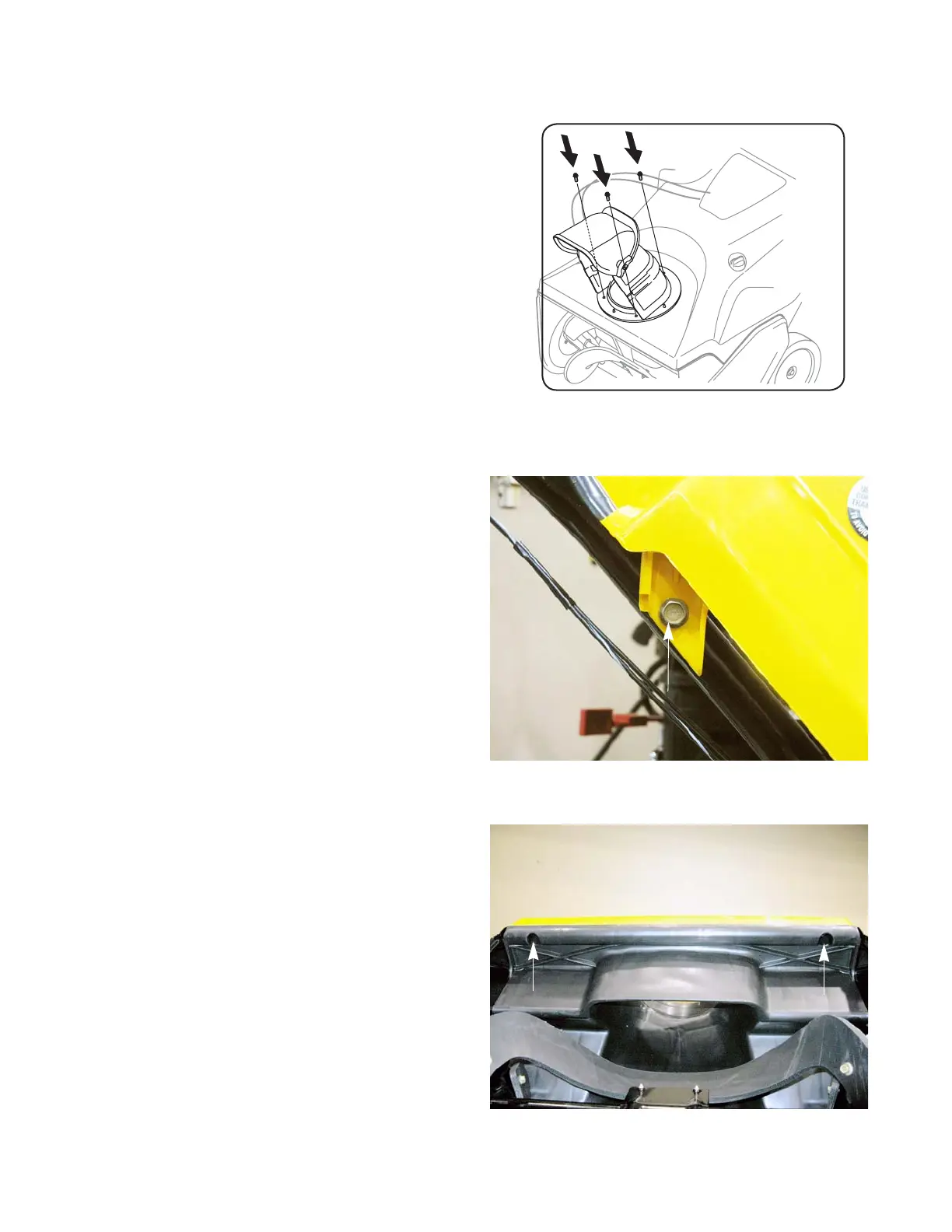

Figure 2.15
