Front View
The OW100
®
contains the water circuit, the high voltage parts, the electrohydraulic
acoustic wave generator, the voltage supply and the microprocessor.
The following parts are accessible from the outside:
 The applicator (1), in which the acoustic waves are generated and modulated.
The applicator will be connected by means of the applicator connector to the
device. The OW100
®
recognizes the connected applicator type automatically and
shows the name on the display.
 By means of the footswitch (6) or the acoustic wave release button at the
applicator, acoustic waves can be released. The footswitch is connected to the
device at the front side.
 The touch screen (2) serves to adjust the treatment- and device parameters.
 Also the touch wheel (3) serves to adjust the treatment- and device parameters
 The power switch (7) serves to switch on and off the voltage supply of the device.

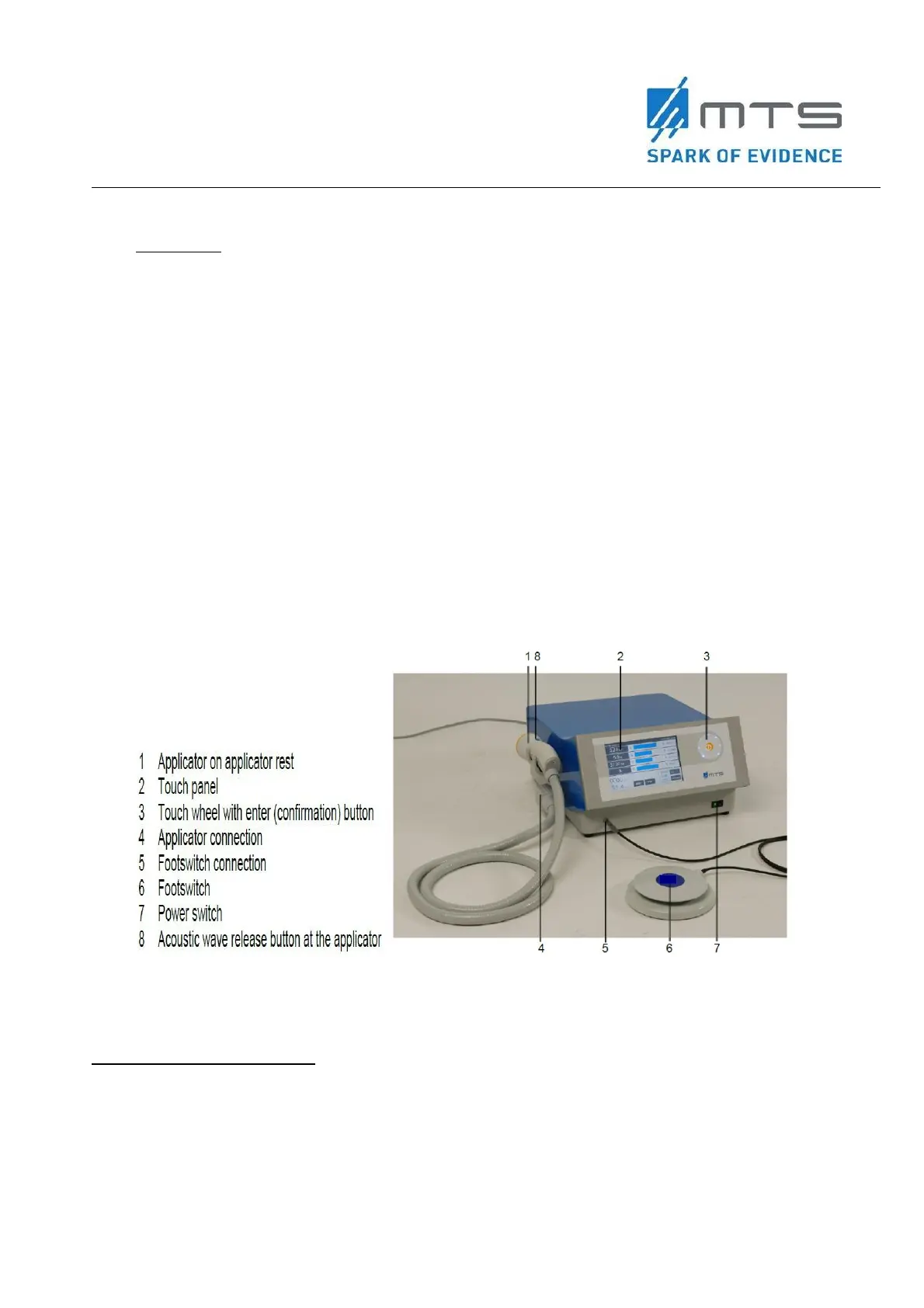

Figure 2 Components and connections of the OW100
®
at the front side
