44 MTS_OW100_IFU-orthogold100-US-K182682_A

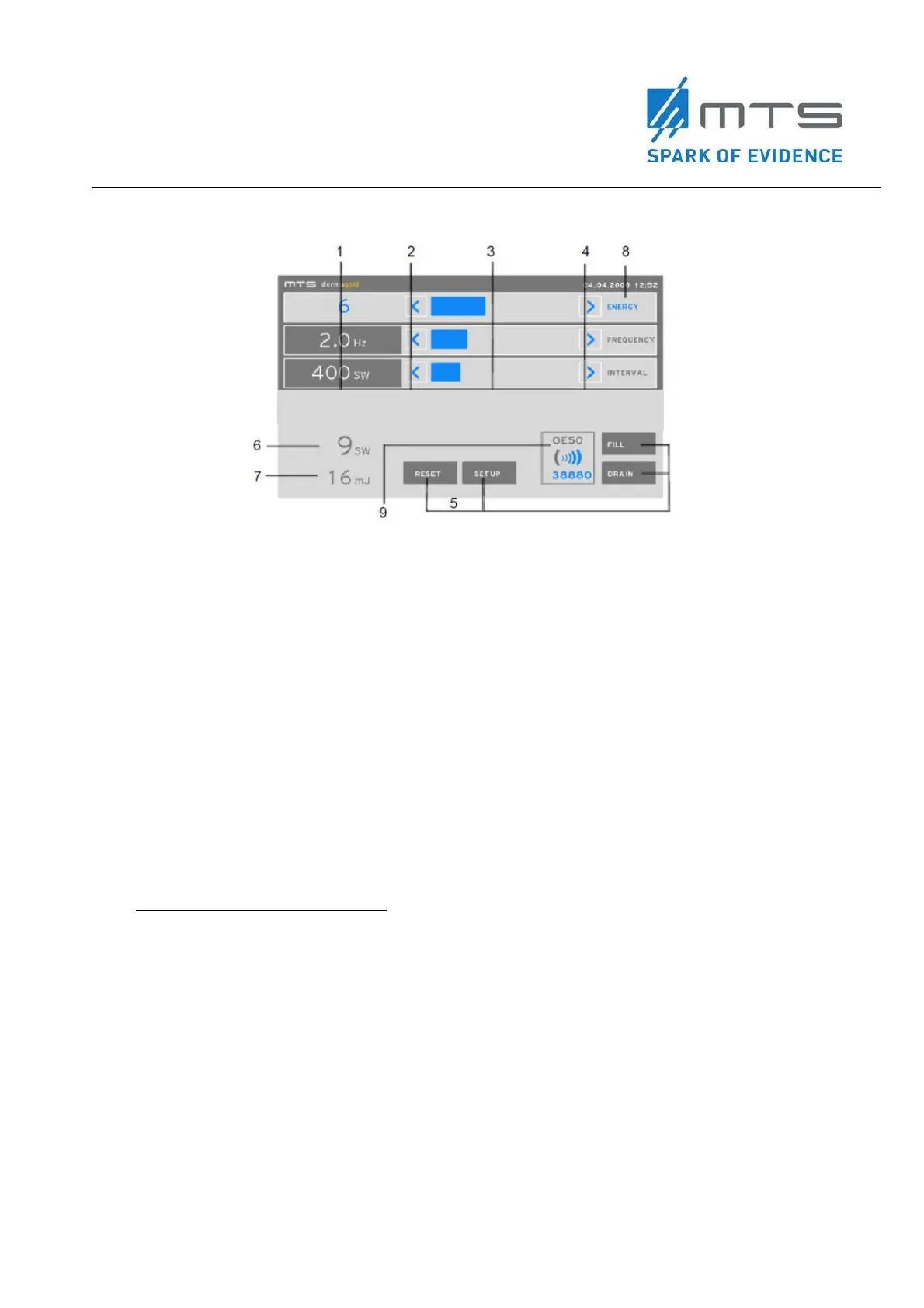

Figure 29
Touch panel of the OW100
®
1. Currently set values
2. Key field “Arrow” to decrease a value
3. Key field “Bar” to set a value and for a short overview in which area
the set value is (min. - max.)
4. Key field “Arrow” to increase a value
5. Key field to switch functions
6. Display of the applied acoustic waves
7. Display of the applied total energy (of the applied acoustic waves).
8. Selected key field (blue highlighted)
9. Display for the identification of the connected applicator and the number of
available total acoustic waves.
Operation with the touch wheel:
To select a field, the parameter you want to change the left column should be
highlighted. If it’s not blue highlighted, press the confirmation button (2). By moving
the finger in the sensitive area (1), choose the field “Energy”, “Frequency”, “Interval”
or “Pressure” which value you want to change. To change the value, press the
conformation button again. The field is now grey highlighted. Move the finger for the
desired value. After setting the value press the confirmation button again to save the
new setting.
