18 MTS_OW100_IFU-orthogold100-US-K182682_A
Side connections
At the left side of the device, the connection for the applicator is placed.

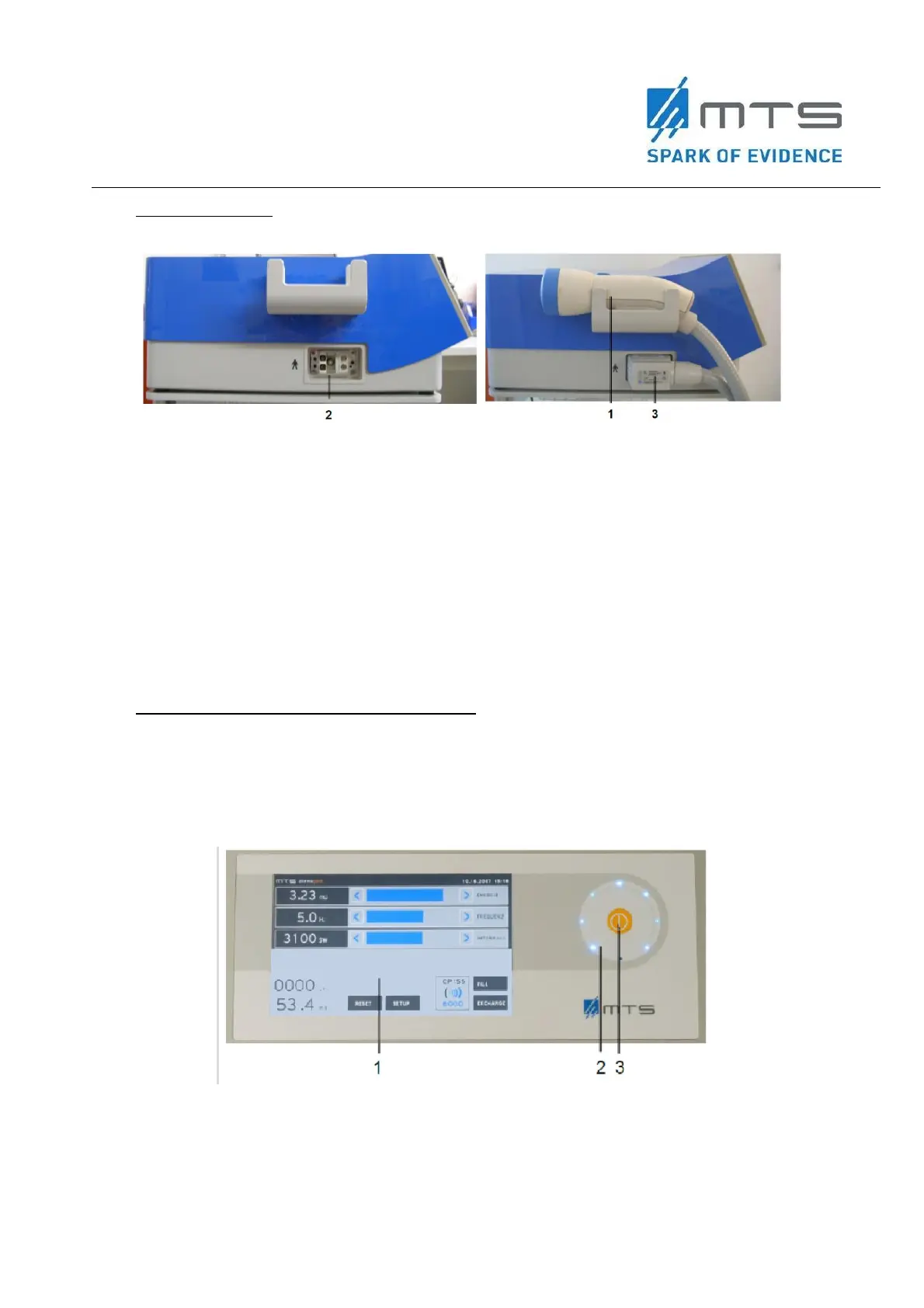

Figure 8
Applicator connection socket (left) and connect applicator (right)
Applicator (1)
Applicator connection socket (2)
Applicator connection plug (3)
The plug and the flexible hose contain the power- and water supply for the applicator.
The connection of the applicator happens automatically, which makes the connection
simple and comfortable.
Operating- and display elements (Figure 9)
The operation of the OW100
®
is performed by means of the touch panel (1) or touch
wheel (2) with confirmation button (3). Both input devices can use at any time, also in
a mixed mode. The adjustable parameters are dependent to the particular screen
menu.
Figure 9
Display of the OW100
®
