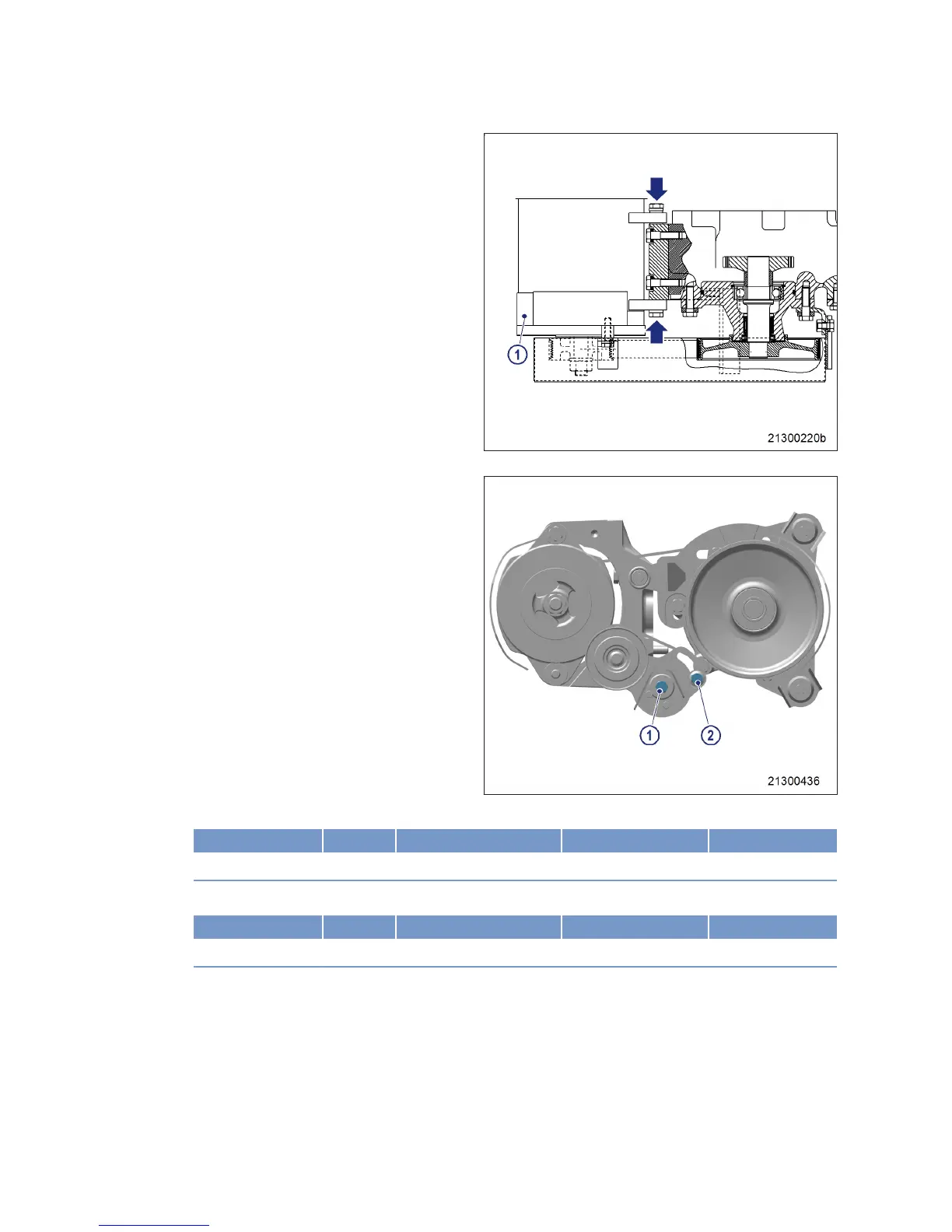

8. Release screws (arrow).
9. Remove battery-charging generator (1).
10. Clean battery-charging generator (1) thor‐
oughly (→ Page 130).
11. Install battery-charging generator (1) follow‐
ing reverse sequence of working steps.
Tensioning drive belt
1. Fit drive belt.
2. Slacken screw (2) by half a turn.
Result: Belt tensioner moves against the drive belt
and tensions it.
3. Tighten screw (2) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M10x1.5 Tightening torque 60Nm +5Nm
4. Tighten screw (1) with torque wrench to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M10x1.5 Tightening torque 42Nm
5. Install protective cover.
6. Readjust belt tension after 30 minutes and again after 8 hours engine runtime (→ Page 135).
132 | Task Description | MS150049/02E 2012-11
TIM-ID: 0000007425 - 005
