7.3 Crankcase Breather
7.3.1 Crankcase breather – Filter element replacement
Preconditions
☑ Engine shut down and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 10-60Nm
F30452769 1
Engine oil
Filter insert
(→ Spare Parts Catalog)
WARNING
Hot oil.
Oil can contain combustion residues which are harmful to health.
Risk of injury and poisoning!
• Wear protective clothing, gloves, and goggles / safety mask.
• Avoid contact with skin.
• Do not inhale oil vapor.
Crankcase breather (closed-circuit
crankcase ventilation) – Filter
element replacement

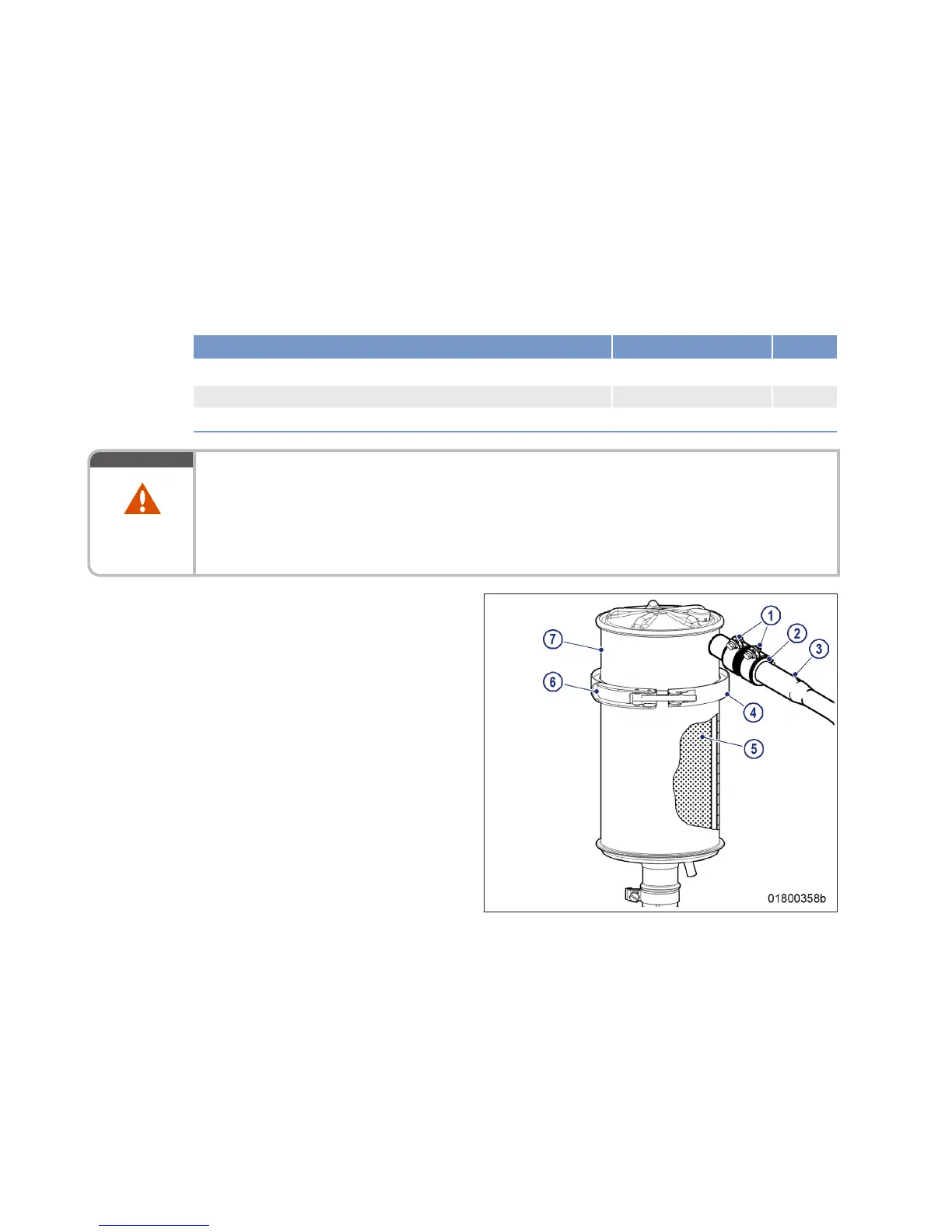

1. Loosen clamps (1), push rubber sleeves (2)
over pipe (3).
2. Release band clamp (4) with lever (6).
3. Remove cover (7).
4. Replace filter element (5).
5. Fit cover (7).
6. Operate lever (6) to tension clamping
band (4).
7. Push back rubber sleeve (2) and tighten
clamp (1).
8. Replace further filter elements in the same
way.
78 | Task Description | MS150049/02E 2012-11
