7.14.2 Oil indicator filter – Check
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Cleaner (Snow-White 11-0)
40460 1
Cleaner (Hakupur 312)
30390 1
Engine oil
Strainer
(→ Spare Parts Catalog)
Square-section ring
(→ Spare Parts Catalog)
O-ring
(→ Spare Parts Catalog)
WARNING
Hot oil.
Oil can contain combustion residues which are harmful to health.
Risk of injury and poisoning!
• Wear protective clothing, gloves, and goggles / safety mask.
• Avoid contact with skin.
• Do not inhale oil vapor.
WARNING
Compressed air
Risk of injury!
• Do not direct compressed-air jet at persons.
• Wear protective goggles / safety mask and ear protectors.
CAUTION
Unsuitable cleaning tool.
Damage to component!
• Observe manufacturer's instructions.
• Use appropriate cleaning tool.

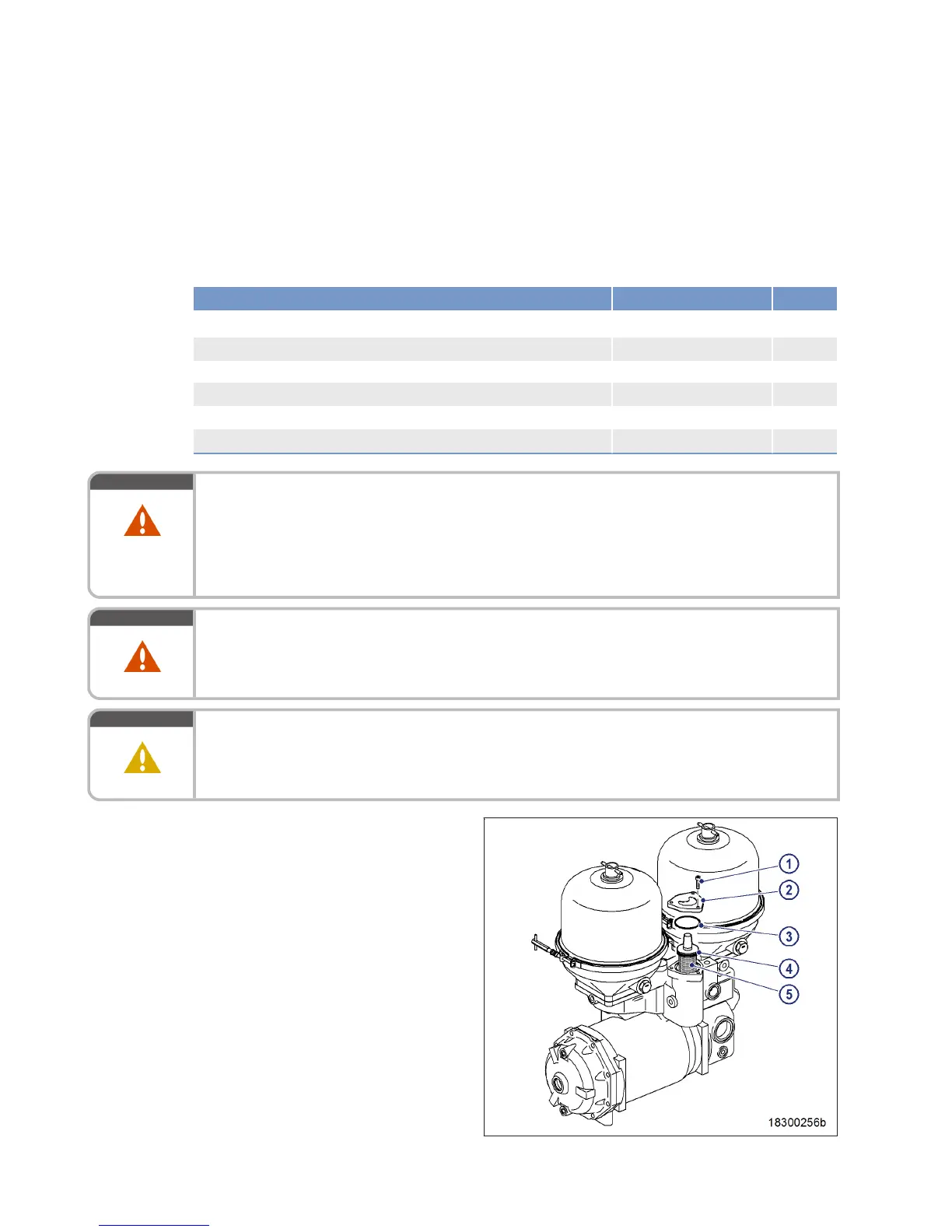

Removing strainer
1. Clean oil indicator filter before disassem‐
bling it.
2. Remove screws (1).
3. Take off cover (2) with O-ring (3).
4. Remove strainer (5) from housing and allow
oil to drip into container.
108 | Task Description | MS150049/02E 2012-11
TIM-ID: 0000036227 - 002
