7.1.2 Engine – Barring with starting system
DANGER
Unguarded rotating and moving engine components.
Risk of serious injury – Danger to life!
• Before barring the engine, ensure that nobody is in the danger zone.
Barring engine with starting system

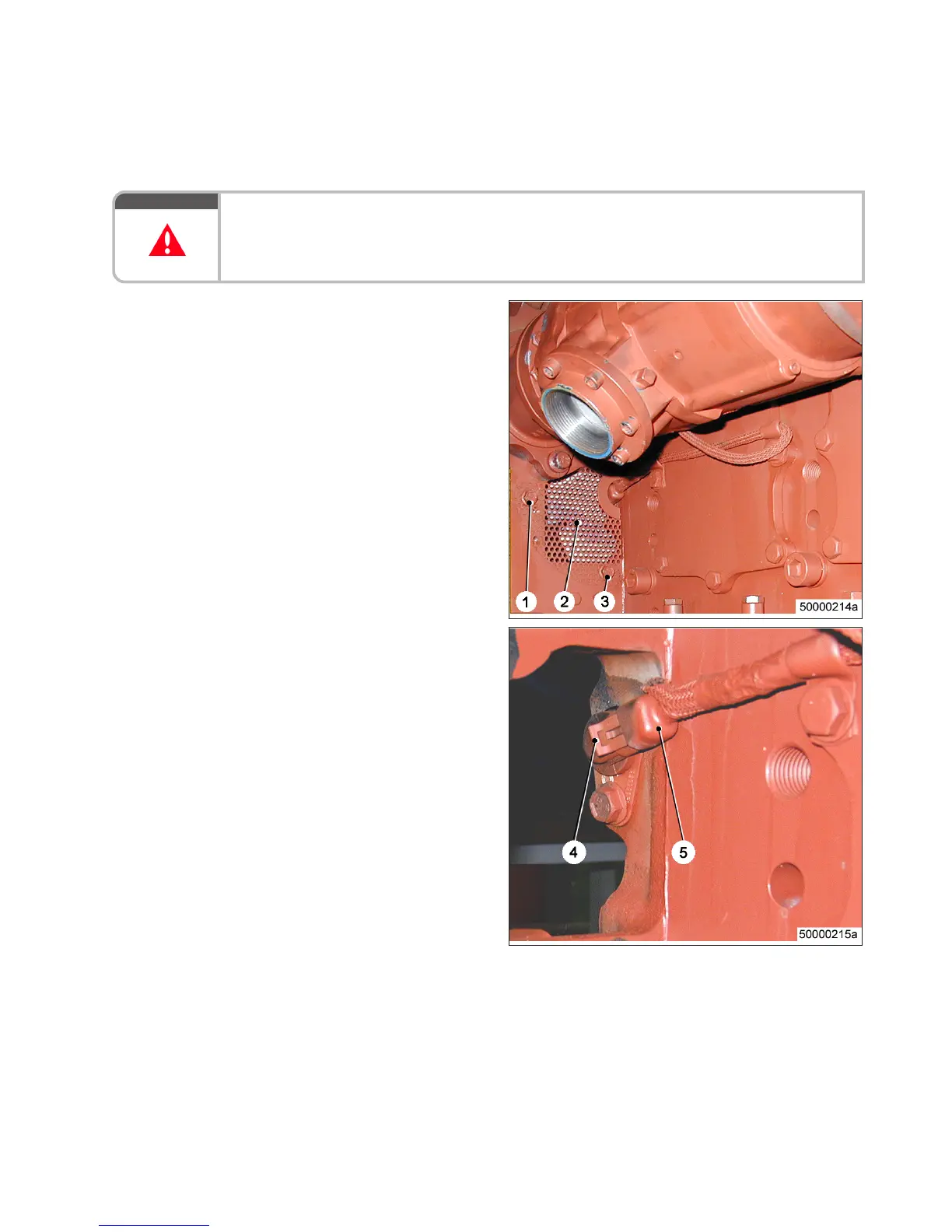

1. Remove screws (1, 3) and take off perforat‐
ed plate (2).
2. Withdraw plug (5) from crankshaft angle
sensor for injection timing of any cylinder
(→ Page 23). For this purpose, unlock
latch (4).
3. Bar engine in unloaded condition: Press
START button.
Note: Interrupt engine start after maximum ten
seconds for thirty seconds to prevent starter
from overheating.
4. Let the crankshaft rotate until oil pressure is
indicated.
Note: If no oil pressure is indicated after three
start cycles, contact Service.
5. Slide connector (5) until lock (4) latches into
position.
6. Fit perforated plate (2) and secure with two
screws (1, 3).
MS150049/02E 2012-11 | Task Description | 73
