MTU 16 V 4000 C21 - Engine - Overview

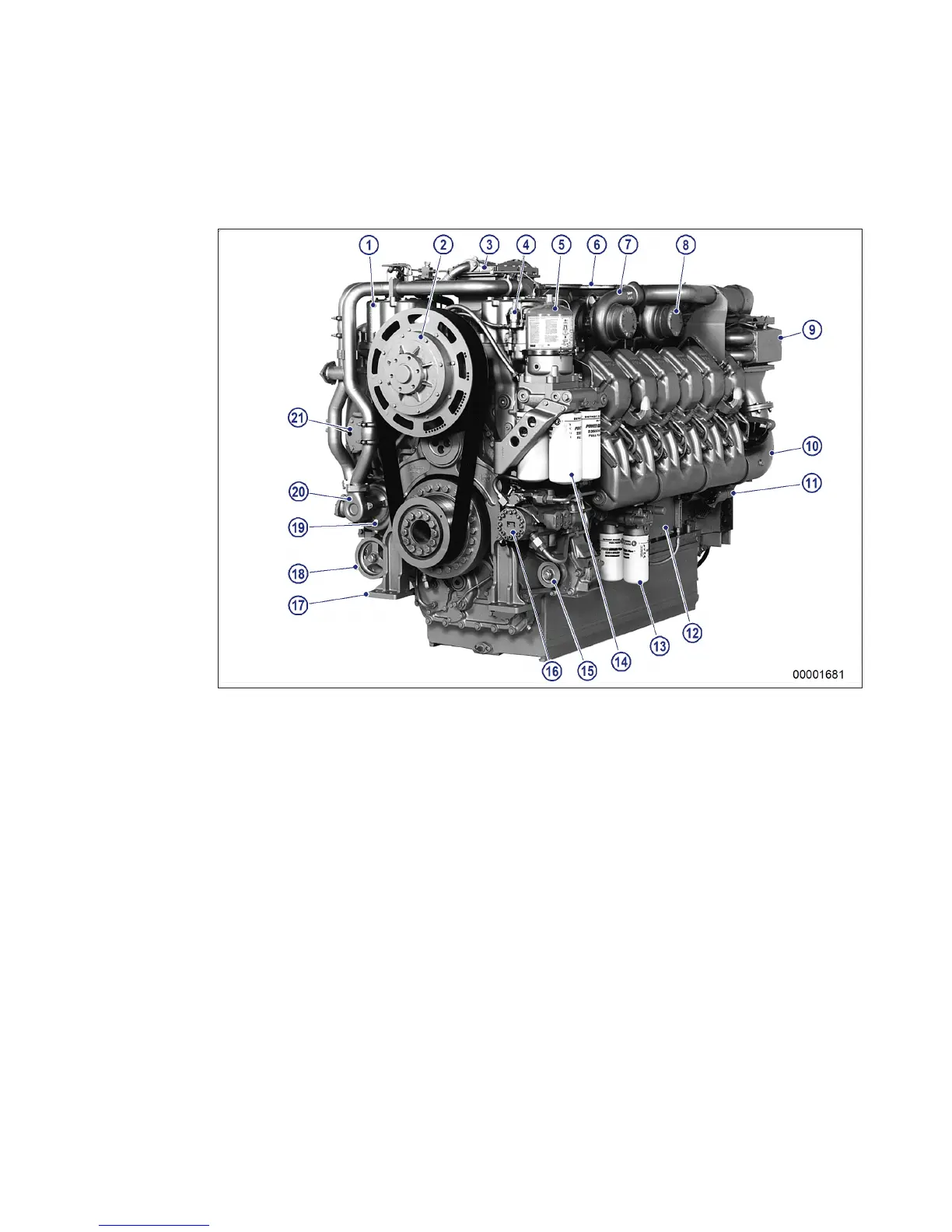

2.2 Engine – Overview
Figure applies to 16V4000 Cxy analogously
1 Oil cooler
2 Fan coupling
3 Crankcase breather
4 Control valve for fan
coupling
5 Centrifugal oil filter
6 Exhaust outlet
7 Turbocharger
8 Combustion-air inlet
9 Charge-air cooler
10 Charge-air line
11 Starter
12 Engine governor
13 Easy-change fuel filter
14 Oil filter
15 Air conditioning com‐
pressor drive
16 HP pump
17 Engine mounting
18 Battery-charging gener‐
ator
19 Charge-air coolant
pump
20 Charge-air coolant ther‐
mostat
21 Engine coolant outlet
