Adjusting drive belt tension

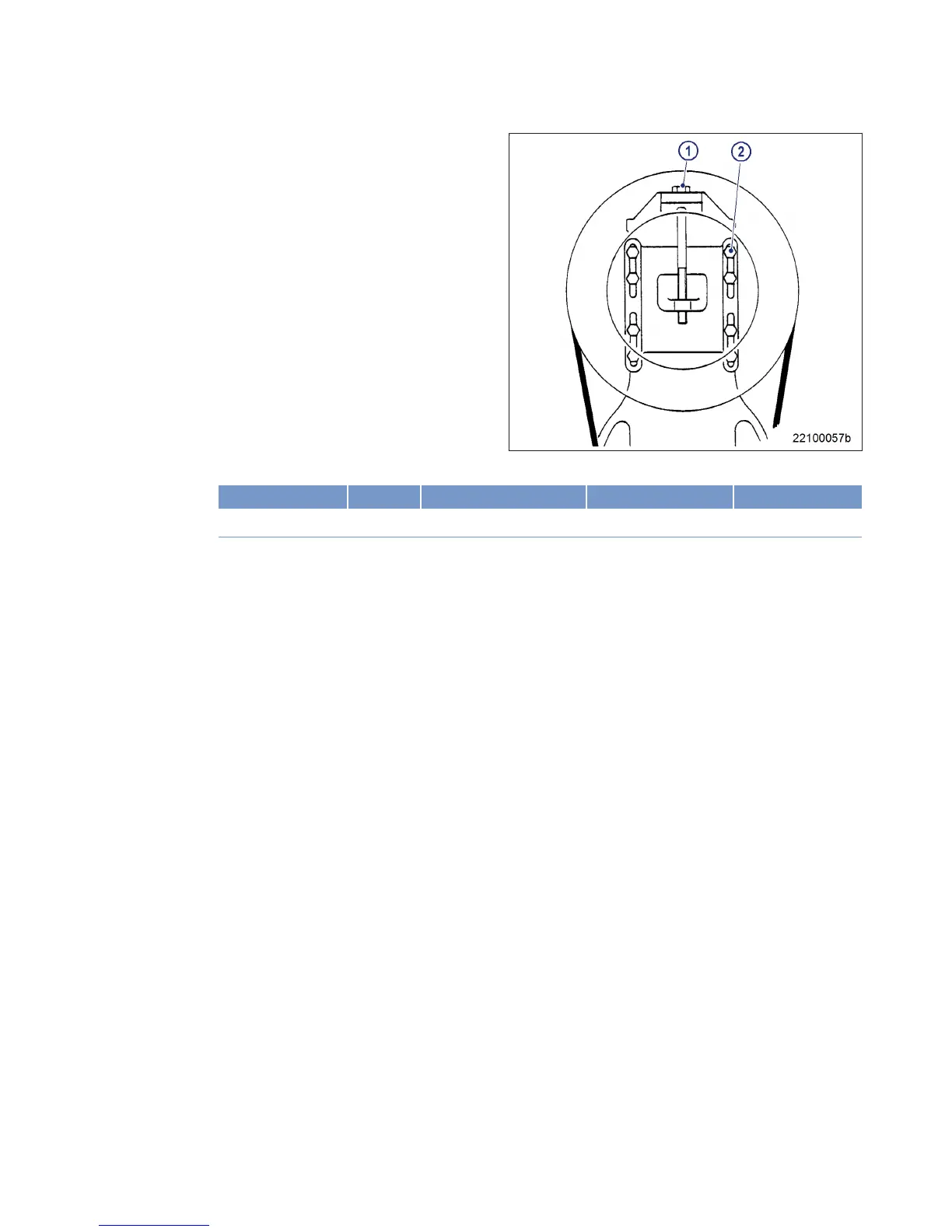

1. Release screws (2) until fan coupling can
be moved.
2. Tighten stud (1) until the required frequency
is achieved.
3. Tighten screws (2) to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M12x60 Tightening torque 100Nm +10Nm
