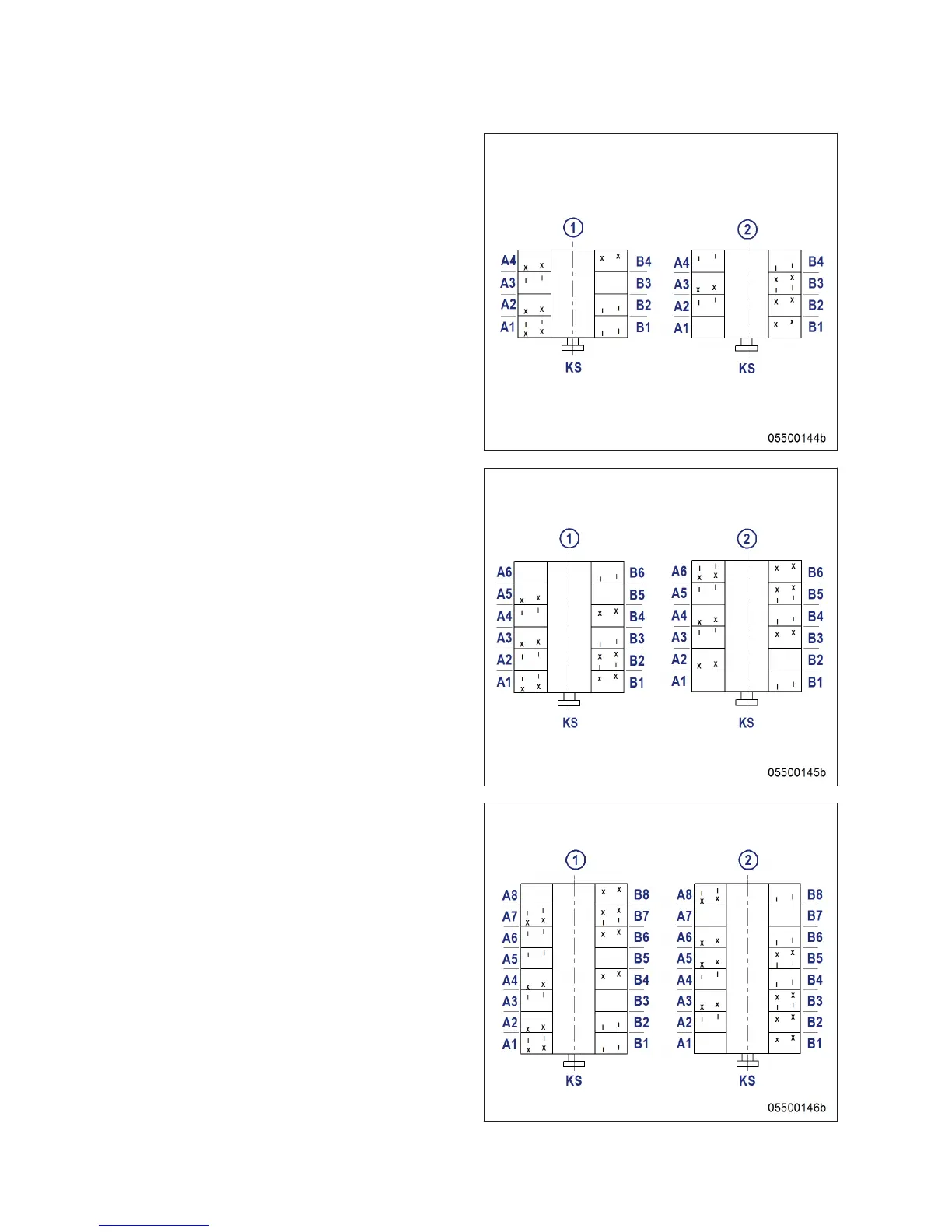

Diagram for 8V engines (two
crankshaft positions)
1 Cylinder A1 is in firing TDC
2 Cylinder A1 is in overlap TDC
I Inlet valve
X Exhaust valve
Diagram for 12V engines (two
crankshaft positions)
1 Cylinder A1 is in firing TDC
2 Cylinder A1 is in overlap TDC
I Inlet valve
X Exhaust valve
Diagram for 16V engines (two
crankshaft positions)
1 Cylinder A1 is in firing TDC
2 Cylinder A1 is in overlap TDC
I Inlet valve
X Exhaust valve
86 | Task Description | MS150049/02E 2012-11
