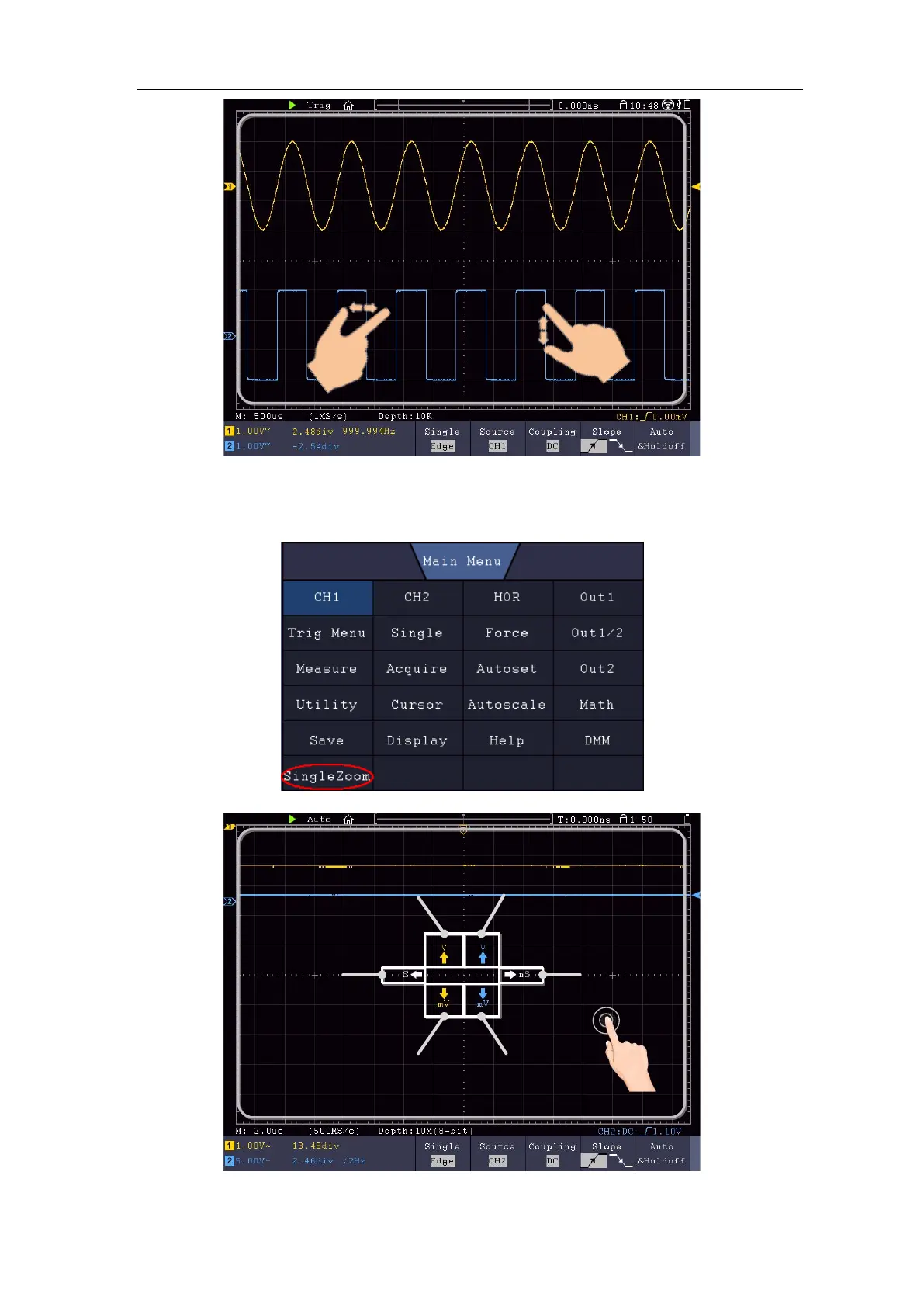

Pinch and spread vertically
to change the voltage
division of current channel
Pinch and spread
horizontally to change
the time base
In touchable menu pane, if SingleZoom is selected, click anywhere on the Display area to
show the touching control panel.
Click to increase
the voltage
division of CH1
Click to decrease
the voltage
division of CH1
Click to
decrease
the time base
Click to
increase
the time base
Click to increase
the voltage
division of CH2
Click to decrease
the voltage
division of CH2
 Set the voltage division (Vertical Scale knob): Click on the left upper area to increase
