Part Number: WBL-95-156 REV002 63
Section 4 Maintenance

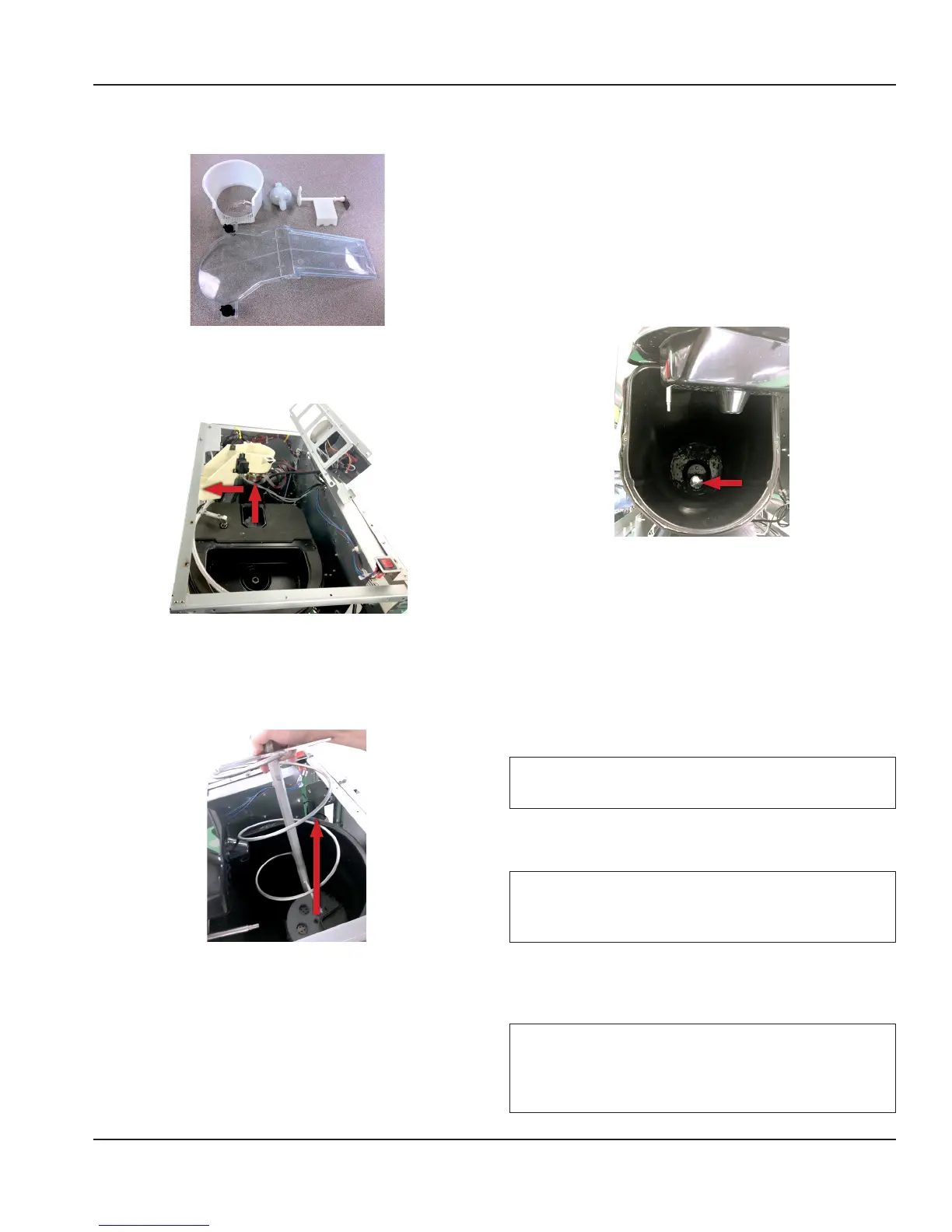

15. Remove the ice wiper nut, strainer, ice damper flap, and
set aside.
16. Loosen the large wing clamp that secures the ice chute
to the evaporator.
17. Pull the ice chute up and out of the ice bin lid.
NOTE: The chute can be rotated to the side and does not
need to be completely removed.
18. Remove ice bin cover and auger dispense assembly
including the dispense wheel at the bottom, then
remove any remaining ice in the bin manually.
19. Wipe away any visible debris and soak the following
parts in sanitizing solution for 10 minutes;
• Auger (make sure each end is submersed)
• Dispense Wheel & Housing
• Ice Wiper Nut
• Strainer
• Ice damper flap
20. Thoroughly spray the inside walls and floor of the ice
bin down with sanitizer solution spray bottle, then wipe
down so no sanitizer is left visibly wet in the bin.
21. With a bottle brush, clean the ice nozzle at bottom of
ice bin with sanitizer solution, rinse and wipe dry.
22. Spray and wipe down the ice bin lid inside and out,
making sure to thoroughly sanitize the ice chute opening.
23. Spray and wipe down the ice chute and clear cover
that was moved in step 17 inside and out with sanitizer
solution, making sure to thoroughly sanitize the each end
of the ice chute.
24. Remove the soaking parts from sanitizing solution,
spray with sanitizer solution and wipe them down.
n
Warning
If solution is left on these parts, they will rust.
25. Replace all cleaned parts in their correct positions:
• Assembled Dispense Wheel & Housing
Important
Make sure FRONT Arrow on housing is pointing to the
front of the unit or ice will not dispense when reassembled.
• Auger
• Bin Cover
• Motor and six (6) thumbscrews
Important
Make sure the motor mates up with the auger shaft or
the thumbscrews will not align and ice will not dispense
when reassembled.
