Description
03.06.2014 21
2 Description
2.1 Construction of the machine

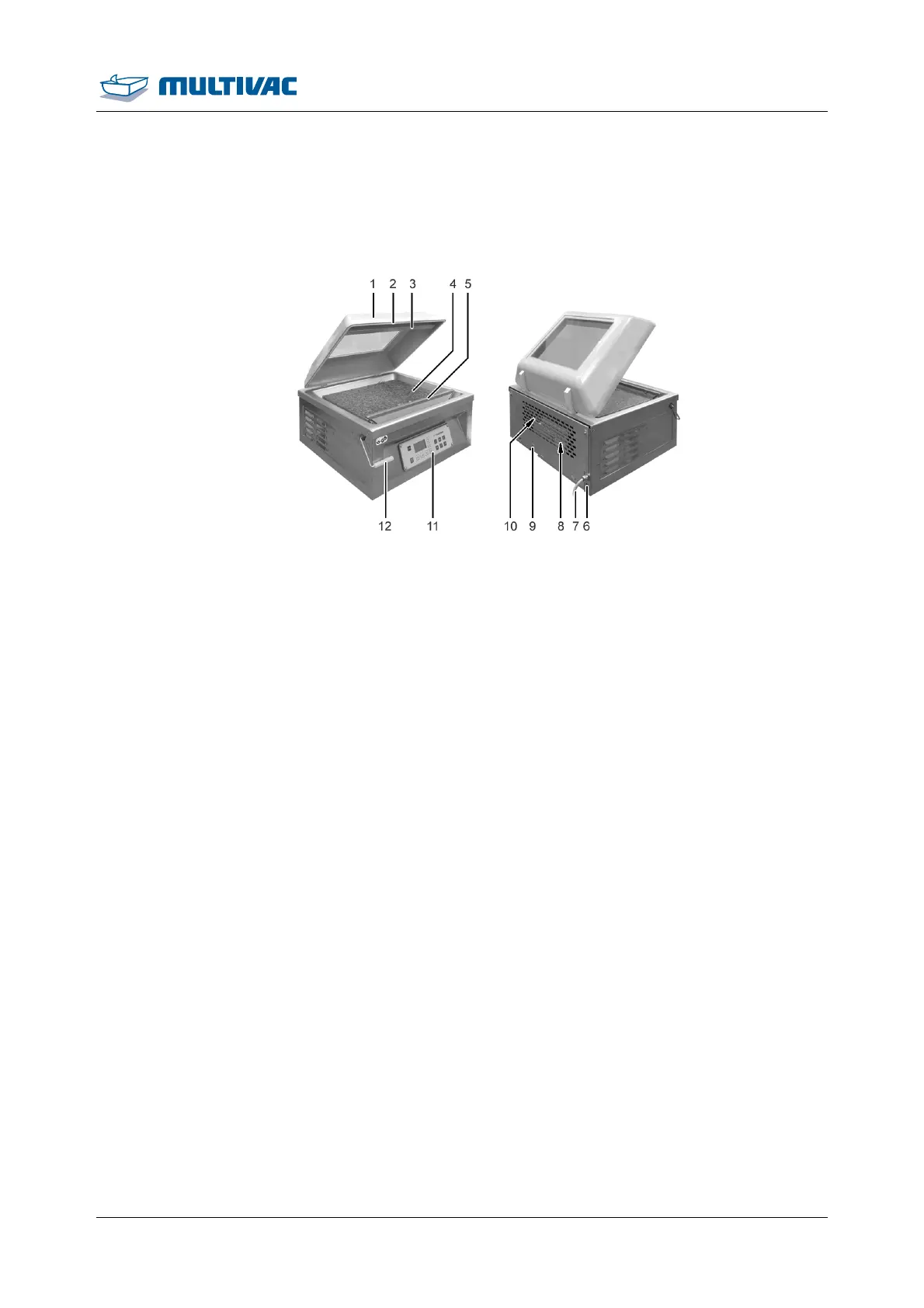

Fig. 7: Construction of the machine
1
Chamber lid
2
Chamber lid gasket
3
Counter-pressure bar
4
Chamber with spacer plates and sloping insert with support angle
5
Sealing bar with inert gas nozzles (optional)
6
(Optional) Inert gas connection
7
Power supply
8
Vacuum pump
9
Oil sight glass
10
Screw plug of fill opening
11
Control terminal
12
Locking device for chamber lid
