multivac P200 - Display

Description
Control terminal
24 03.06.2014
Display
• Display process data.
• Display settings.
• Display diagnostic messages.
<Arrow key> Increase values.
Keys <1> to <3> Load and save recipes.
<Arrow key> Decrease values.
<Sealing> key Call up sealing time.
<Stop> key.
• Deactivate pump protection function
With machines without inert gas:
• Abort evacuation and then seal (e.g. if liq-
uid products begin to boil).
With machines with inert gas:
• Press during evacuation: abort evacuation
and then gas flush (e.g. if liquid products
begin to boil).
• Press during gas flushing: abort gas flush-
ing and then seal.
<Pump protection> Activate pump protection function see Section
4.9 "P
ERFORM PUMP PROTECTION FUNCTION"
2.4 Display

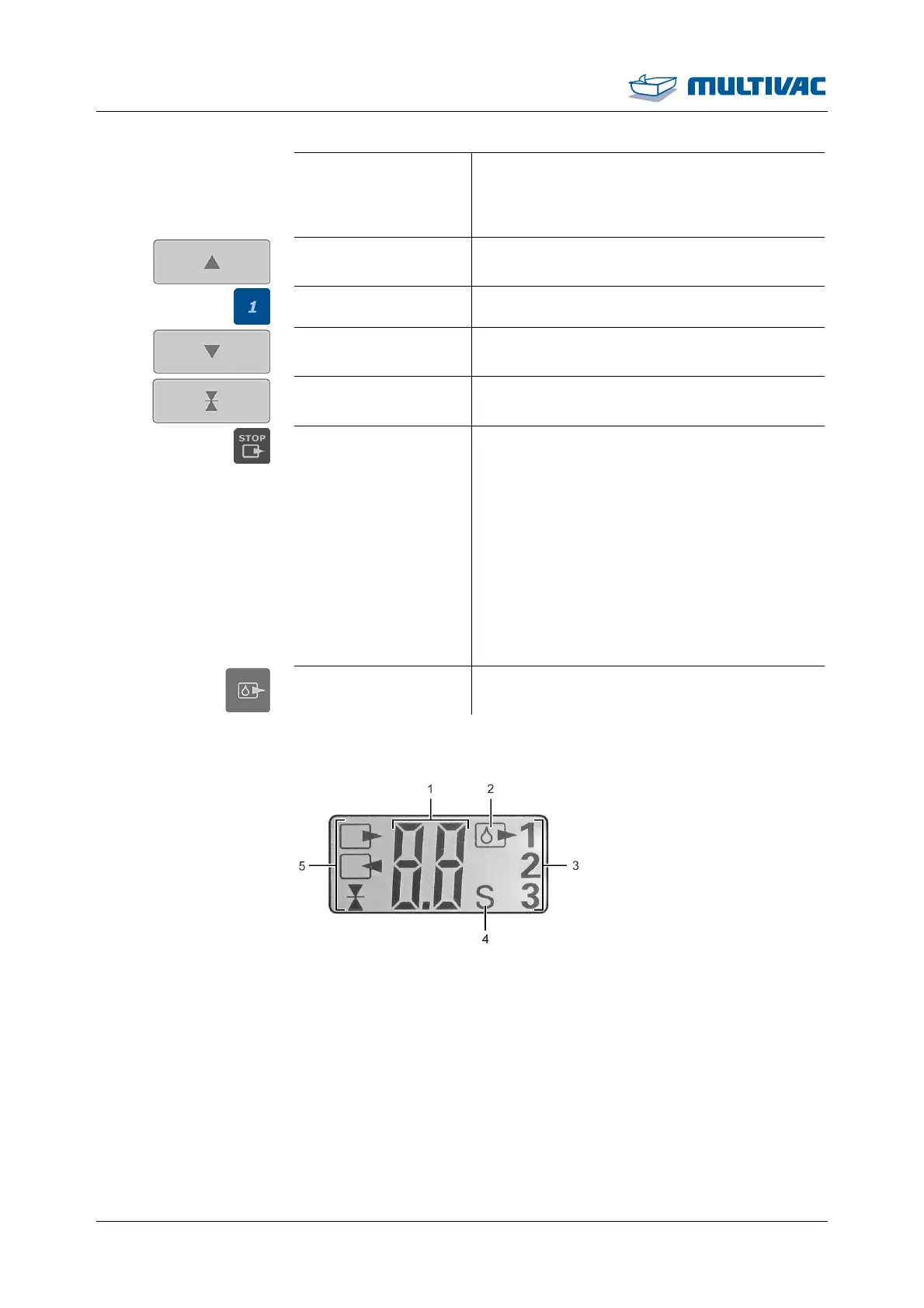

Fig. 10: Display
1
Numeric display
2
Icon for pump protection
3
Recipe display
4
Display of the unit
5
Function display
