Change the air de-oiling element
03.06.2014 71
7.7 Change the air de-oiling element

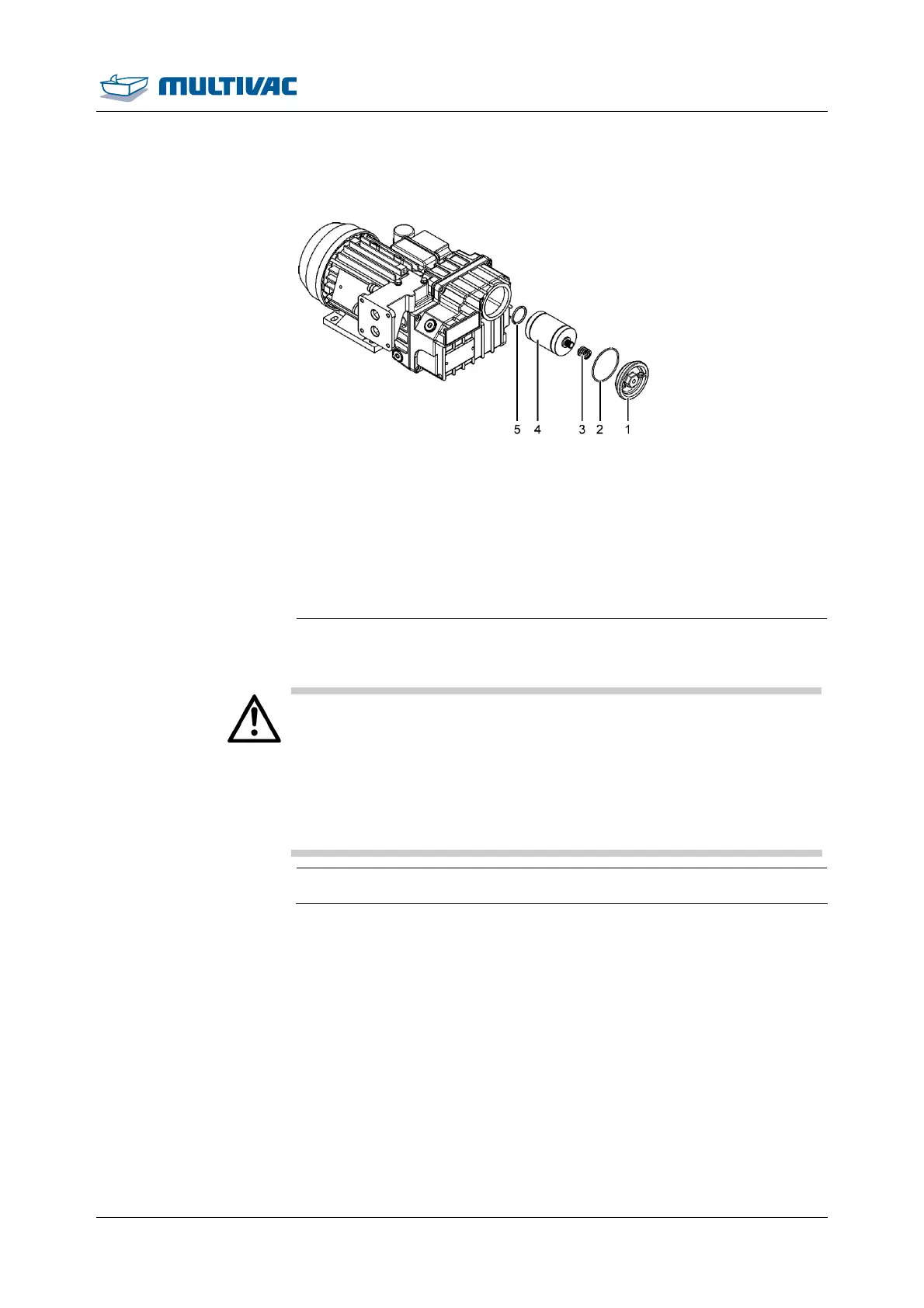

Fig. 14: Overview of changing the air de-oiling element
1
Screw plug
2
Sealing ring
3
Spring
4
Air de-oiling element
5
Sealing ring
¾ Open housing, see Section 7.5 "OPEN AND CLOSE THE HOUSING".
WARNING
Burn hazard!
The surface of the vacuum pump can reach temperatures of over
70 °C during operation.
Touching the vacuum pump can lead to burns.
Before performing any work on the vacuum pump:
¾ Allow the vacuum pump to cool down.
¾ Wear personal protective equipment.
¾ Allow the vacuum pump to cool down.
