IMC01 Banknote Counter User Manual
Version 1.06

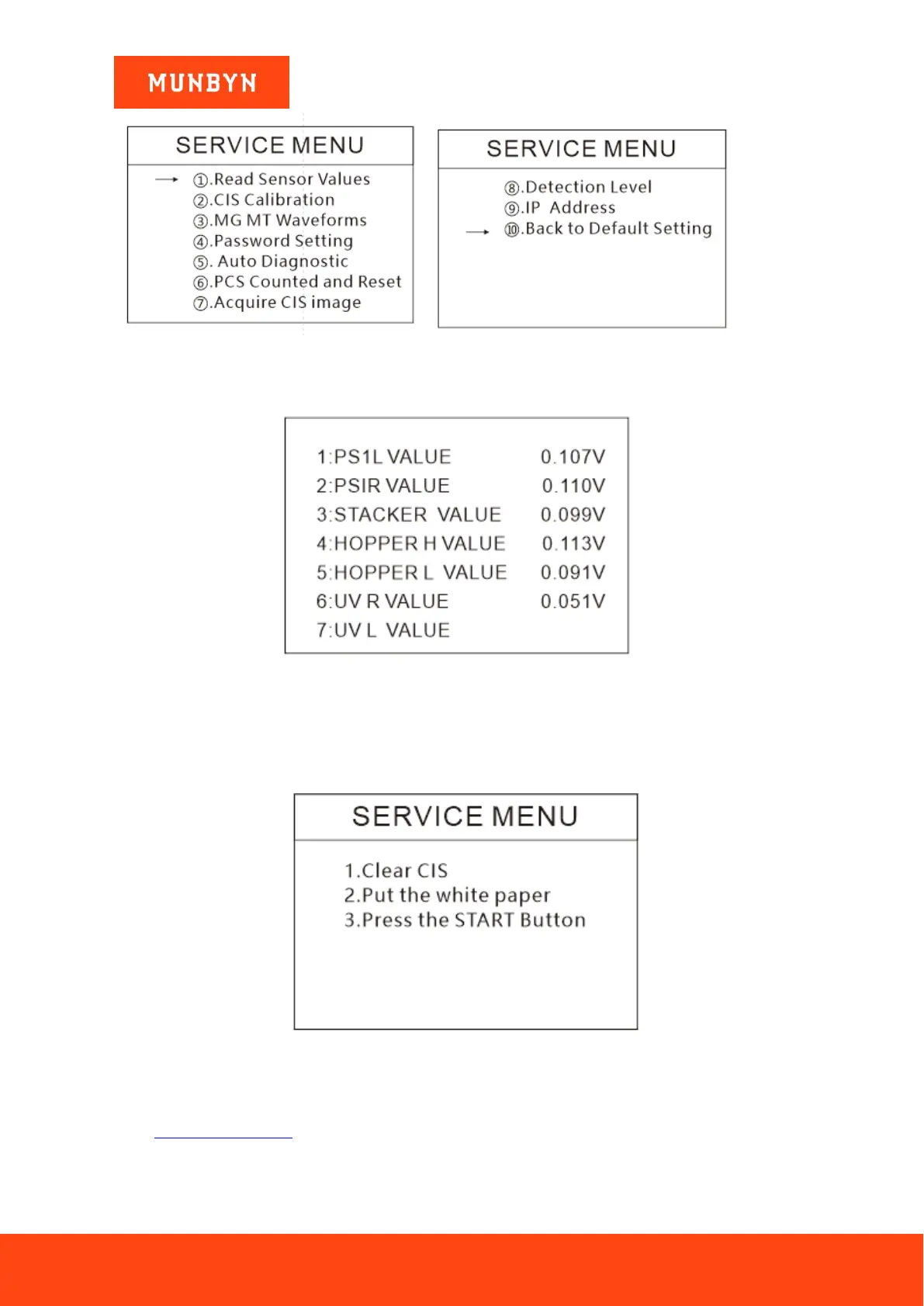

Figure 5-3 Service Menu
5.1.1. Read Sensor Values
Figure 5-4 Sensor Values
As shown in Figure 5-4, the sensors values are only for engineer to check whether any sensor has a malfunction.
If you meet any problem about use, please take a photo of this page and contact us.
5.1.2. CIS Calibration
Figure 5-5 CIS Calibration Steps
If you meet cases about banknote detection errors, please try to calibrate the CIS. The CIS calibration steps are
shown in Figure 5-5. For more detail instruction, we recommend you to see the reference manual or watch the
video: https://bit.ly/2C17fom.
