IMC01 Banknote Counter User Manual
Version 1.06

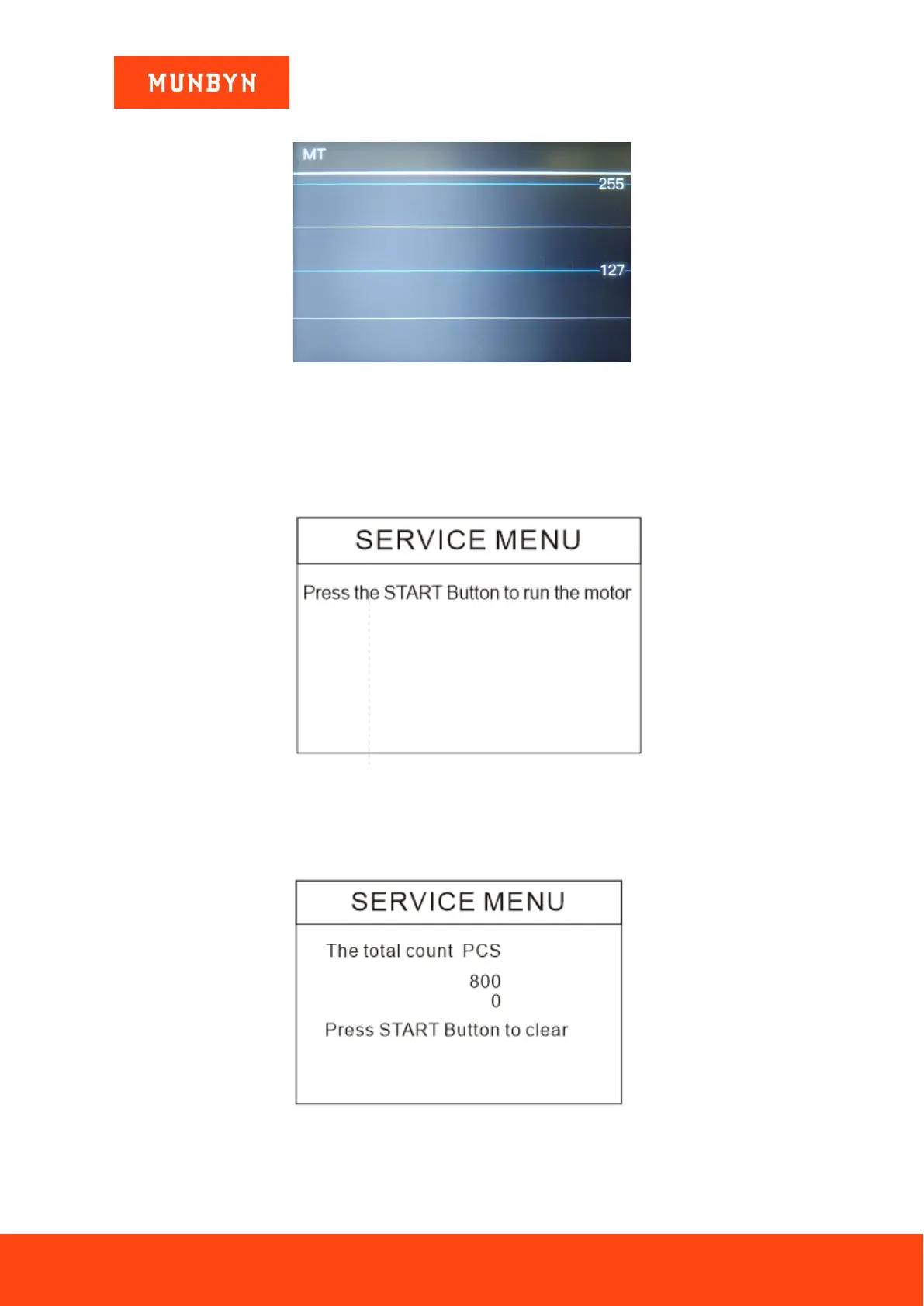

5.1.3. MG/MT Waveforms
Figure 5-6 MG/MT Waveforms
5.1.4. Password Setting
The password cannot be changed by user now.
5.1.5. Auto Diagnostic
Figure 5-7 Auto Diagnostic
This is for production and professional servicing purpose.
5.1.6. PCS Counted and Reset
Figure 5-8 PCS Counted and Reset
This is to tell you the total quantity of counted bills in this counter since last time clearing to zero.
