IMC01 Banknote Counter User Manual
Version 1.06
7.1.3. Clean the Internal Sensors

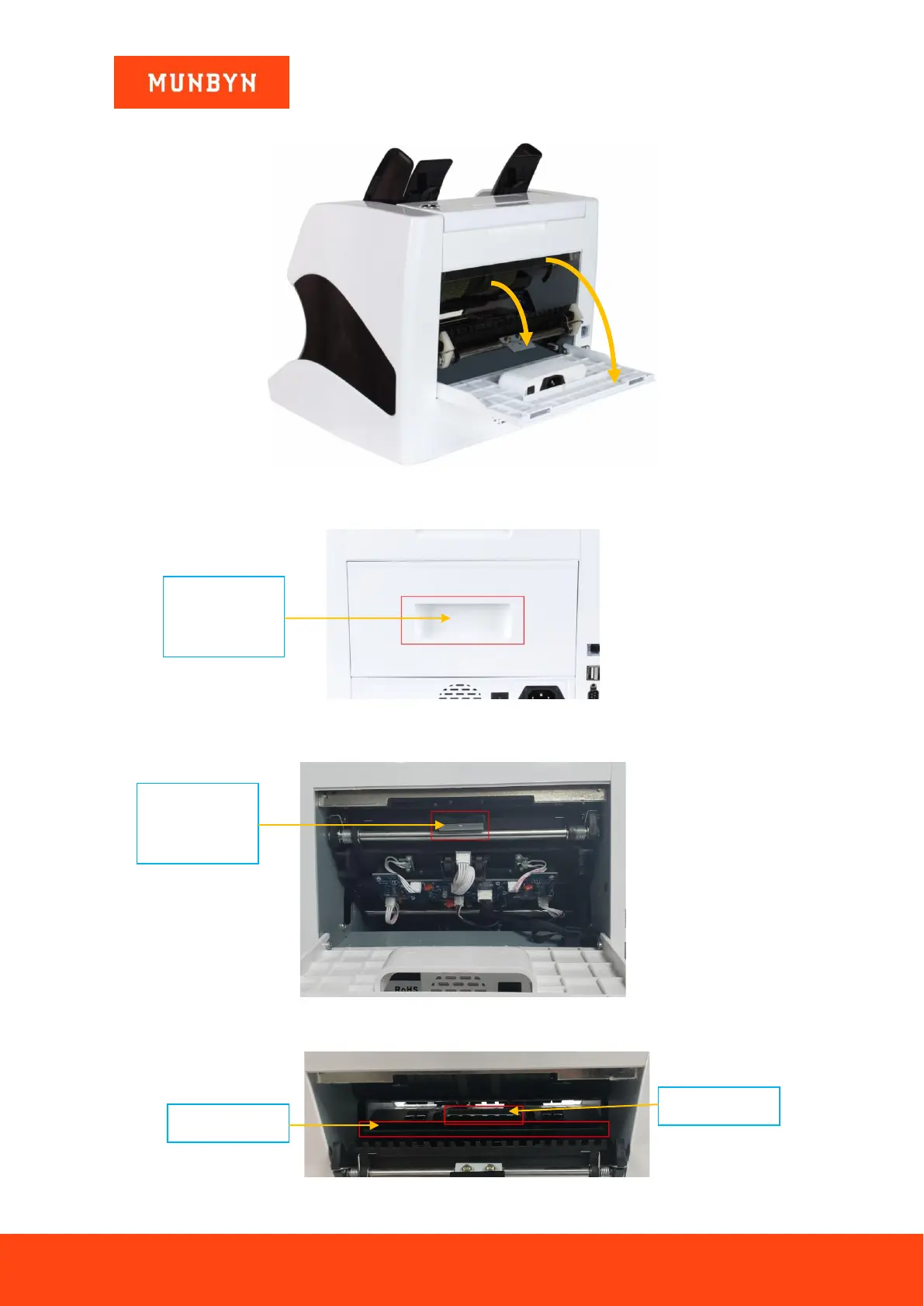

Figure 7-5 Direction of Back Cover Opening
1) Pull the handle of external back cover with the direction shown in Figure 7-5 to open the back cover.
Figure 7-6 Handle of External Back Cover
2) Pull the handle of internal back covering the direction shown in Figure 7-5 to open it.
Figure 7-7 Handle of Internal Back Cover
3) Clean the lower CIS and Lower UV sensors with cleaning cloth or nylon brush respectively.
The Handle of
External Back
Cover
The Handle of
Internal Back
Cover
Lower CIS
Lower UV
