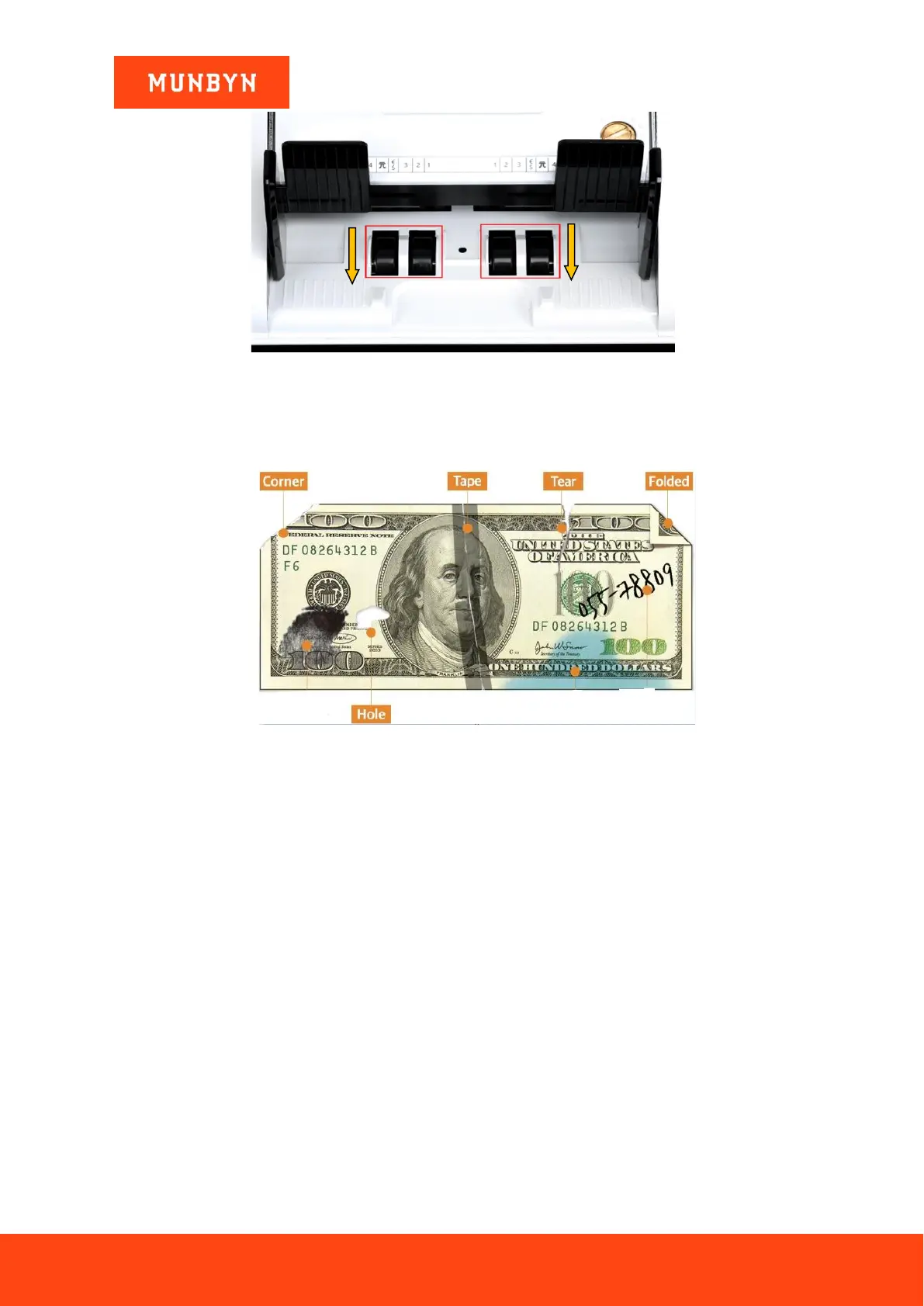

Figure 7-10 The Direction of Wheel Rotation to Take the Jammed Bill
There are several conditions to make the bill jam happened.
1) The bill size is out of the range according to IMC01 specification.
2) The banknote is damaged with different ways such as lack of corner, tape, hole, tear and folded. As shown
in Figure 7-11, it is not recommended to count this kind of bills.
Figure 7-11 Bill Damaged Ways
3) The banknote entrance is so small that the banknote cannot pass through it smoothly. In this case, you need
to fine tune the screw by rotating it clockwise according to the following section.
4) Other abnormal operation or there is unknown thing inside the IMC01.If something inside the IMC01, you
need to open the back cover to check, and clean the internal sensors.
7.4. Feeding Gap Calibration
