Munters MCD100E - Main Components, Exploded View

2.3 Maincomponents,explodedview
8
11
2
4
3
9
5
7
1
10
6

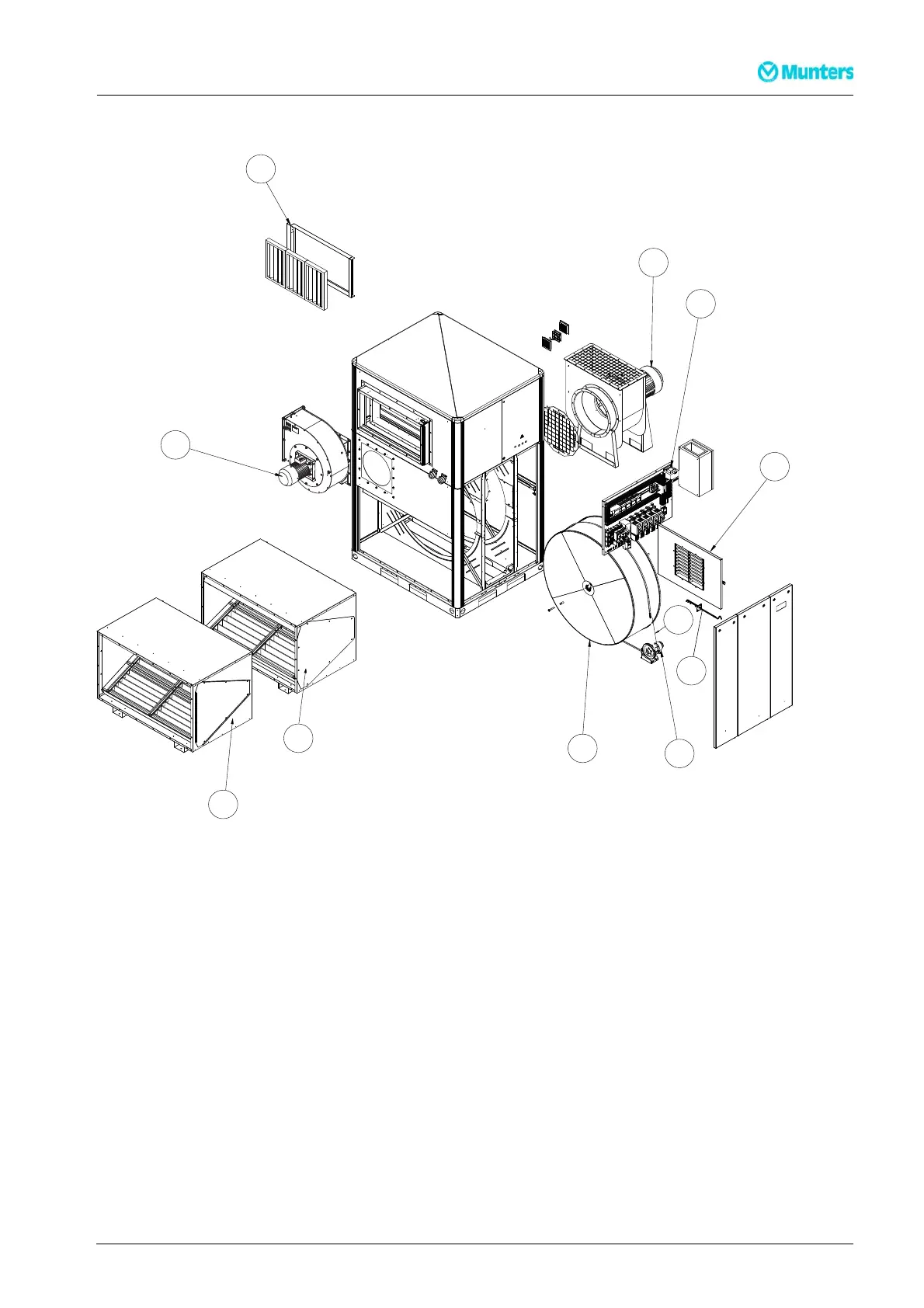

Figure 2.3 Main compo nents
1. Reactivation fan 7. Drivebelt
2. Reactivationairfilter 8. Rotordrivemotor
3. Processfan 9. Rotor
4. Electricalpanel 10. Filterbox,processair
5. Reactivationheater 11. Filterbox,processair(option)
6. Temperaturesensor
190TEN–106 5–J1408 Dehumidifierdesign 7
