3.7.2 Electricalconnections
1. Install the infeed box and the cable for power supply.
E

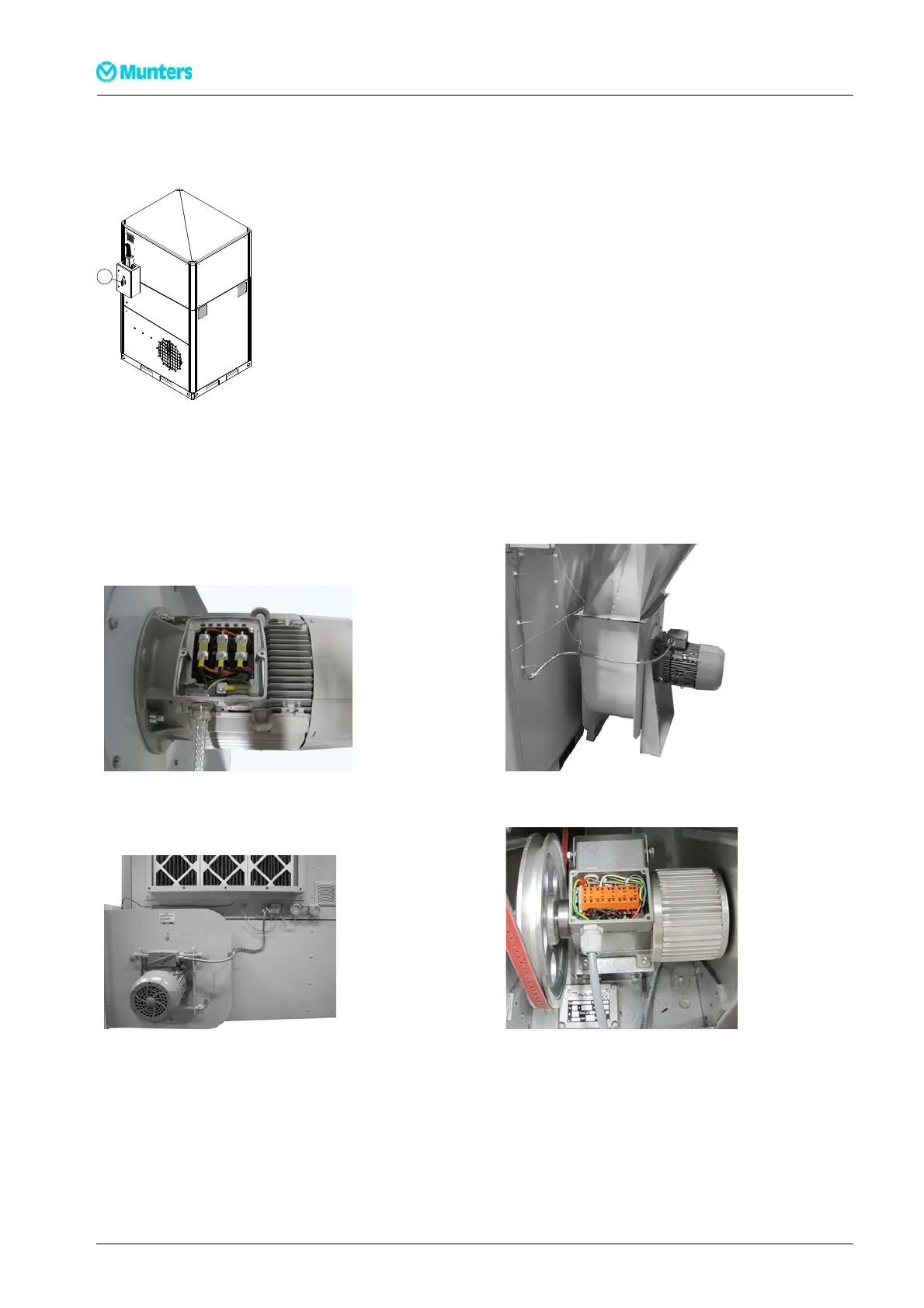

Figure 3.14 Power supply infeed box (E)
2. Connect the cables for the reactivation fan and process fan, see Figure 3.15 , Figure 3.16 and Figure 3.17 .
Figure 3.15 Fan motor wiring Figur e 3.16 Pr ocess fan
Figure 3.17 Re activation fan Figure 3.18 Rotor drive motor
3. Connect the cables for the rotor drive motor according to Table 3.1 and Figure 3.18 .
