Munters MCD100E - Assembly

3.7.1 Assembly
1. Pull off the protection tape from the rotor box seals.
2. Make sure th at the four lifting eye bolts for the top box are tightened.

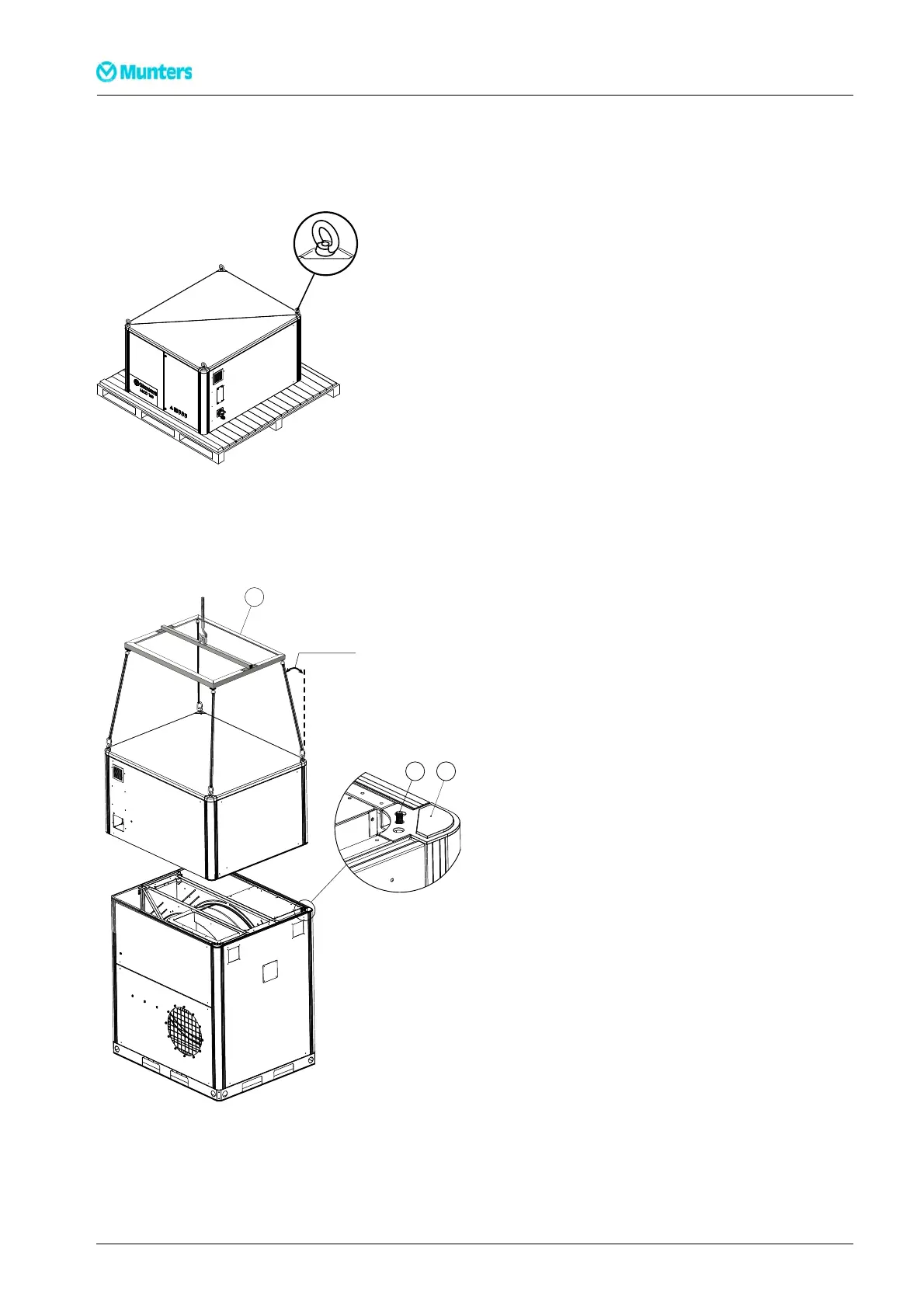

Figure 3.8 Lifting eye
bolts for top box
3. Lift the top box onto the rotor box and make s ure that the guide lips a nd M8 screws align in e ach cor ner,
see Figure 3.9 .
A
B
max 15°
C
Figur e 3.9 Lifting the top box
A.M8screw
B.Guidelip
C.Liftingframe
14 Installation 190TEN–106 5–J 1408
