Terminalblock(drivemotor) Drivemotorcable
Browncable 5
Browncable 4
6(yellow) 3
4(blue) 2
2(green) 1
Table 3.1 Co nnections for roto r drive m oto r

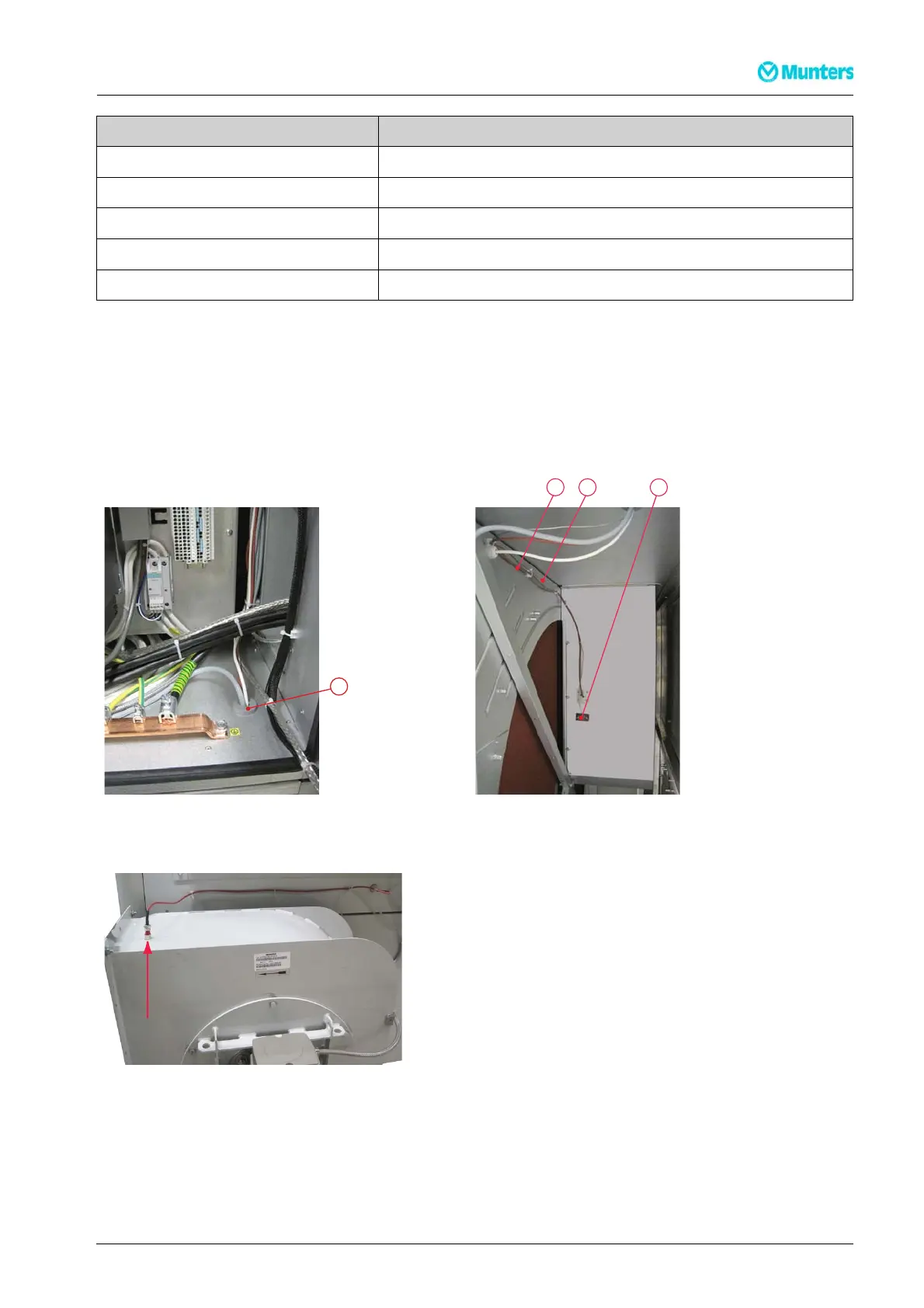

4. Connect the HTCO and PT1000, see Figure 3.19 , Figure 3.20 and Figure 3.21 .
Run the cables through the rubber gromm et (F). Inser t the HTCO cable as far as possible into the pipe
(I).
5. Apply silicone sealant around the cable at the pipe end.
F
Figur e 3.
19 F: Grommet for HTCO/PT1000
G
I
H
Figure 3.
20 PT1000 cable (G), HTCO cable (H), pipe (I)
Figure 3.21 PT1000 connection at reactivation fan
190TEN–106 5–J1408
