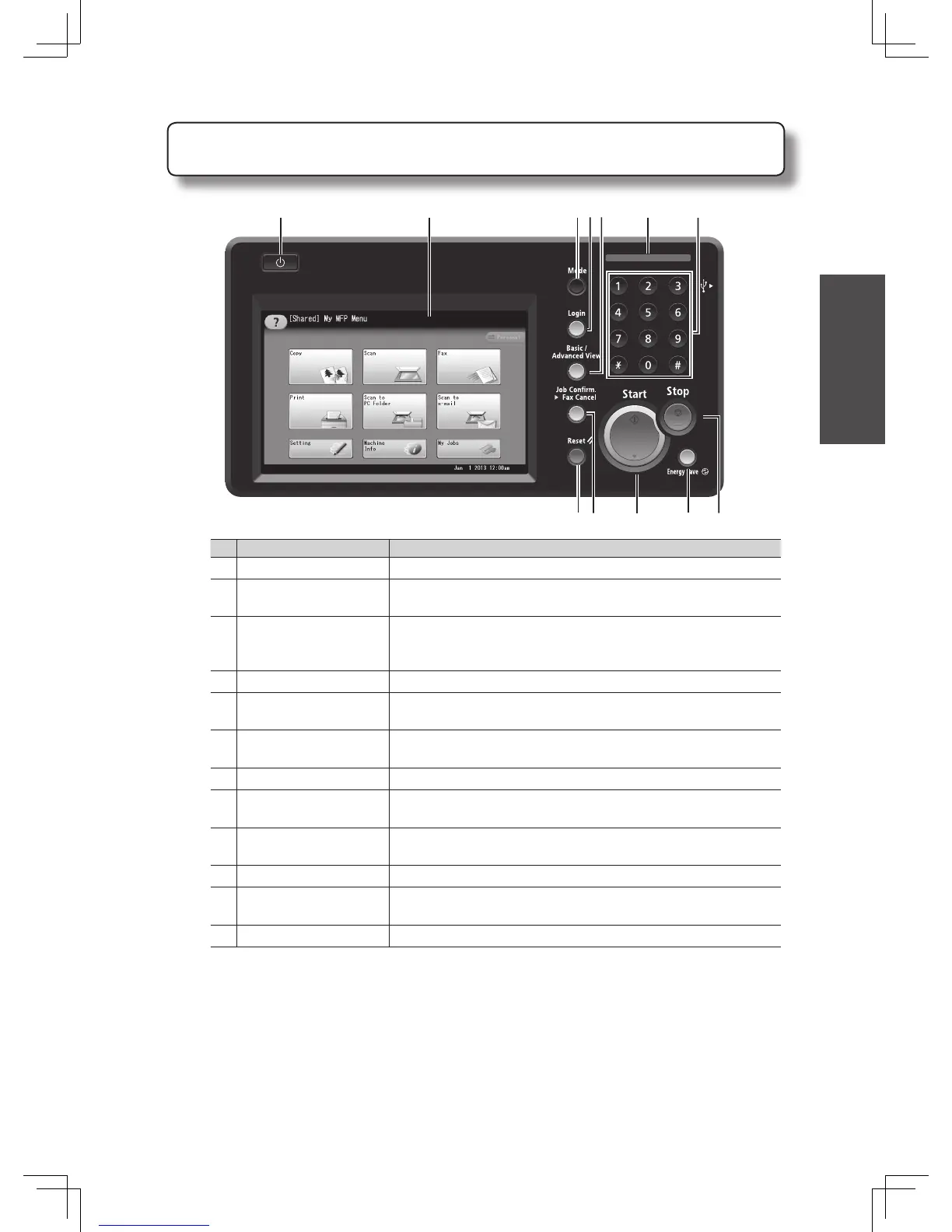

No Name Description
1 Power button This button is used to turn the power on or off.
2 Display The display shows the machine status, interactive displays, and all
machine functions.
3 <Mode> Press this key to switch the machine between the copy ready
screen, scan ready screen, fax ready screen, print ready screen,
and My MFP menu.
4 <Login> Press this key to authenticate as a registered device user.
5 <Basic / Advanced View> Press this key to switch between the Advance view / Basic view
screen for the copy, scanner, and fax modes.
6 Information lamp Displays the current machine status.
Green = operating normally, Orange = error.
7 Numeric keys Use these keys to enter numbers and characters.
8 < Reset> Press this key to reset the settings back to the default settings and
return to the ready screen.
9 <Job Confi rm.
Fax
Cancel>
Press this key to confi rm reserved transmissions or cancel a fax
transmission.
10 <Start> Press this key to execute the current operation.
11 < Energy Save> Press this key to reduce energy consumption while the machine is
idle, or to release the energy save mode.
12 <Stop> Press this key to cancel the current operation.
To Next Page
