Wiegand Output

Disconnect power BEFORE making electrical connections. The CAPXLV2 offers a Wiegand output capable of 26 bit transmission of the

following data:

• Success Call with access granted by the resident. The CAPXLV2 will provide a myQ

Community speciﬁed facility code followed by

the Directory Code of the resident that granted access.

And/Or

• Successful access through Entry Code. The CAPXLV2 will provide a myQ

Community speciﬁed facility code followed by the

successful Entry Code.

And/Or

• Successful access with a credential. The CAPXLV2 will pass along the successful credential Facility Code and ID.

ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROLINTRODUCTION

INTRODUCTION

ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL

INTRODUCTION ACCESS CONTROL

ACCOUNT SETUP NETWORK/MOUNTINGPOWER

INTRODUCTION

ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL

INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL

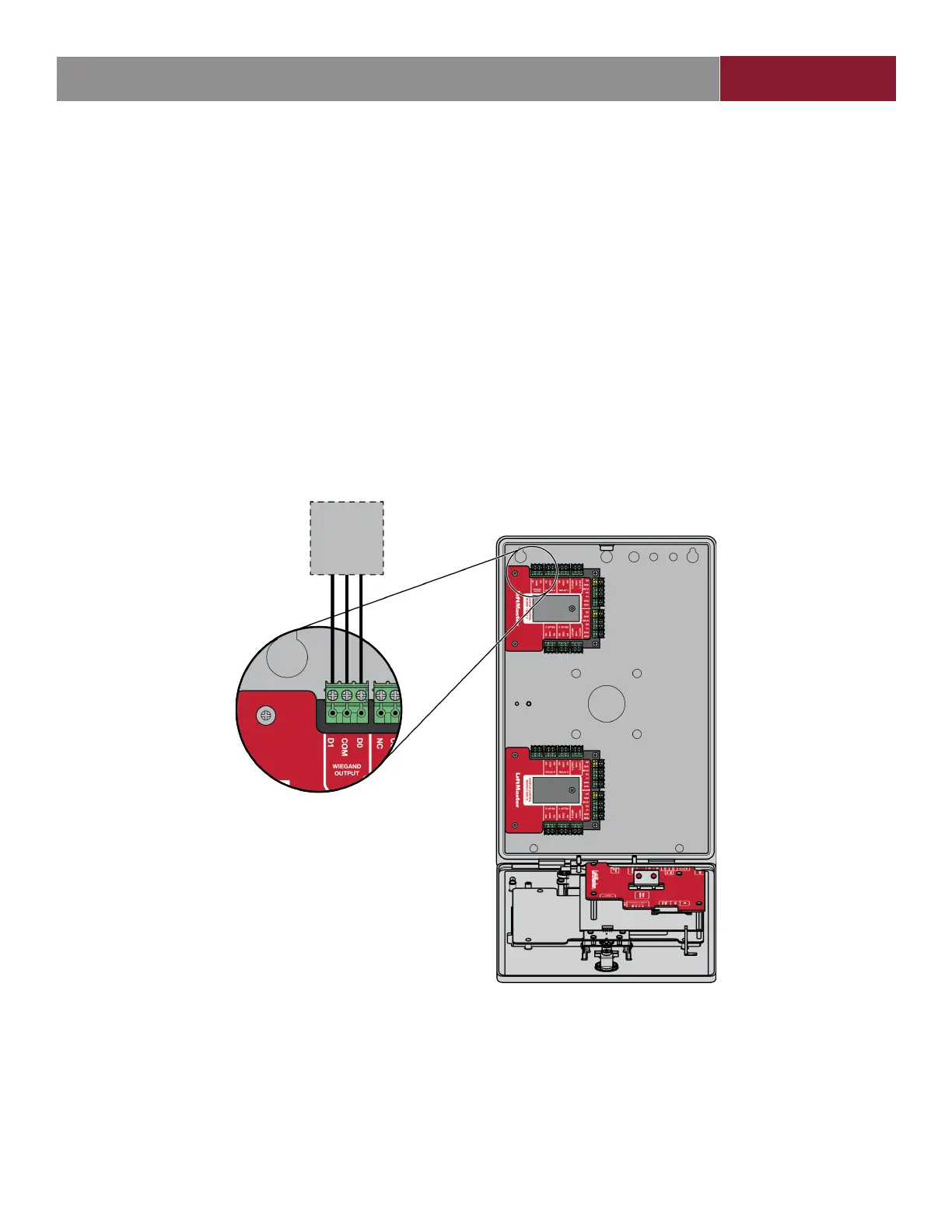

Third Party Access System

Wiegand Input

(This Device/Reader Must be

Listed to UL 294.)

Door of Control

Board1
